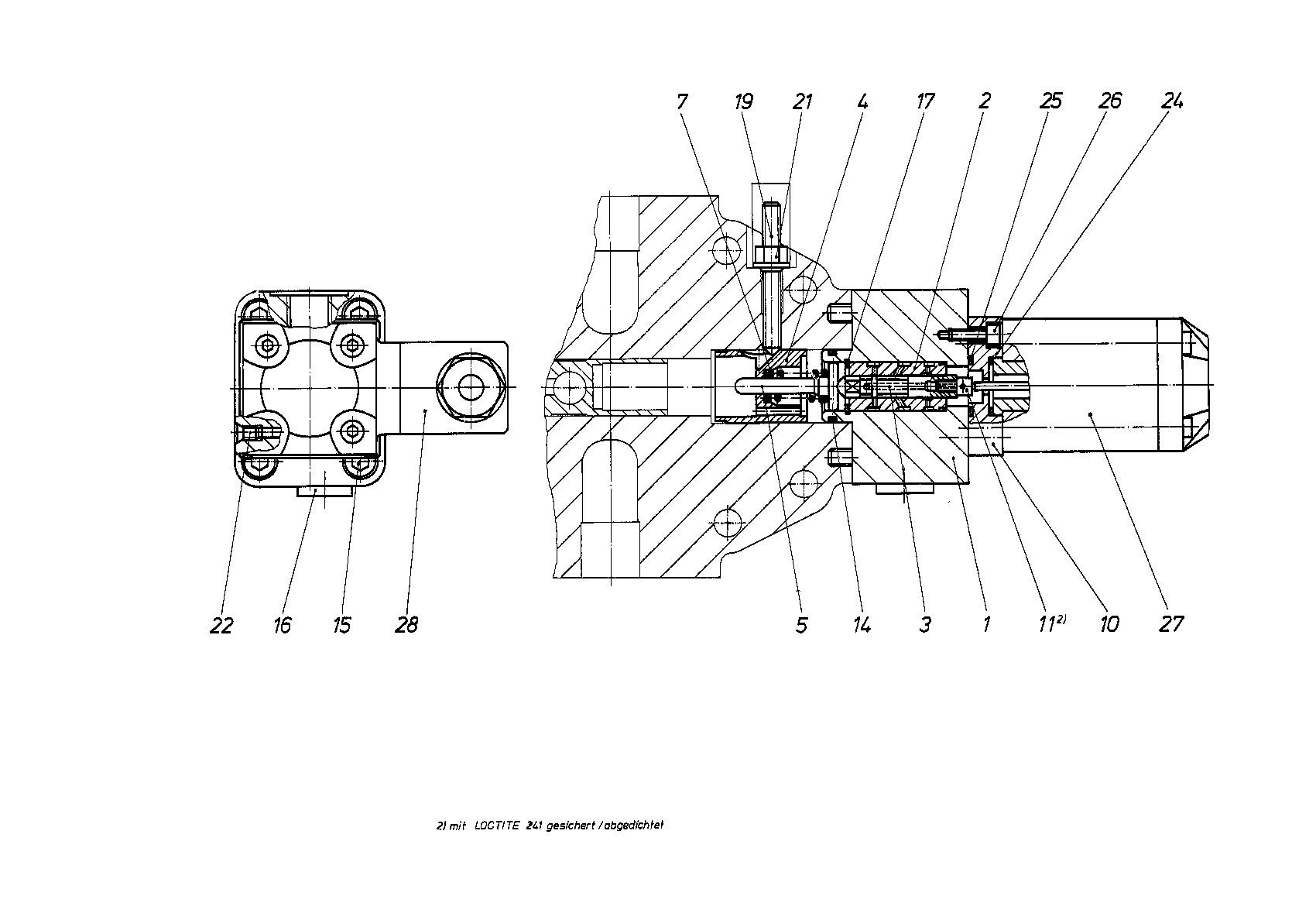

Baugruppe
CONTROL PARTR909433604
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R909422337 | CONTROL HOUSING | 1 | ||
| R909432662 | CONTROL SLEEVE | 1 | ||
| R909432661 | CONTROL PISTON | 1 | ||
| R909445267 | ADJUSTING BUSHING | 1 | ||
| R909921339 | SPRING DISK | 1 | ||
| R909430757 | COMPRESSION SPRING | 1 | ||
| R909425046 | INTERMEDIATE PLATE | 1 | ||
| R909426770 | STOP SCREW | 1 | ||
| R909086432 | O-RINGD | 1 | ||
| R909083026 | SOCKET HEAD CAP SCREW | 4 | ||
| R909151979 | SCREW PLUGD | 1 | ||
| R909083381 | RETAINING RING | 1 | ||
| R909439043 | SETSCREW | 1 | ||
| R909152425 | SEALING NUTD | 1 | ||
| R909831317 | DOUBLE BREAK-OFF PLUG | 1 | ||
| R909083734 | O-RINGD | 1 | ||
| R909083734 | O-RINGD | 1 | ||
| R909083002 | SOCKET HEAD CAP SCREW | 4 | ||
| R909428263 | SWITCHING SOLENOID Stückliste der Baugruppe →L | 1 | ||
| R913022795 | PLUG-IN CONNECTOR | 1 |
