Baugruppe

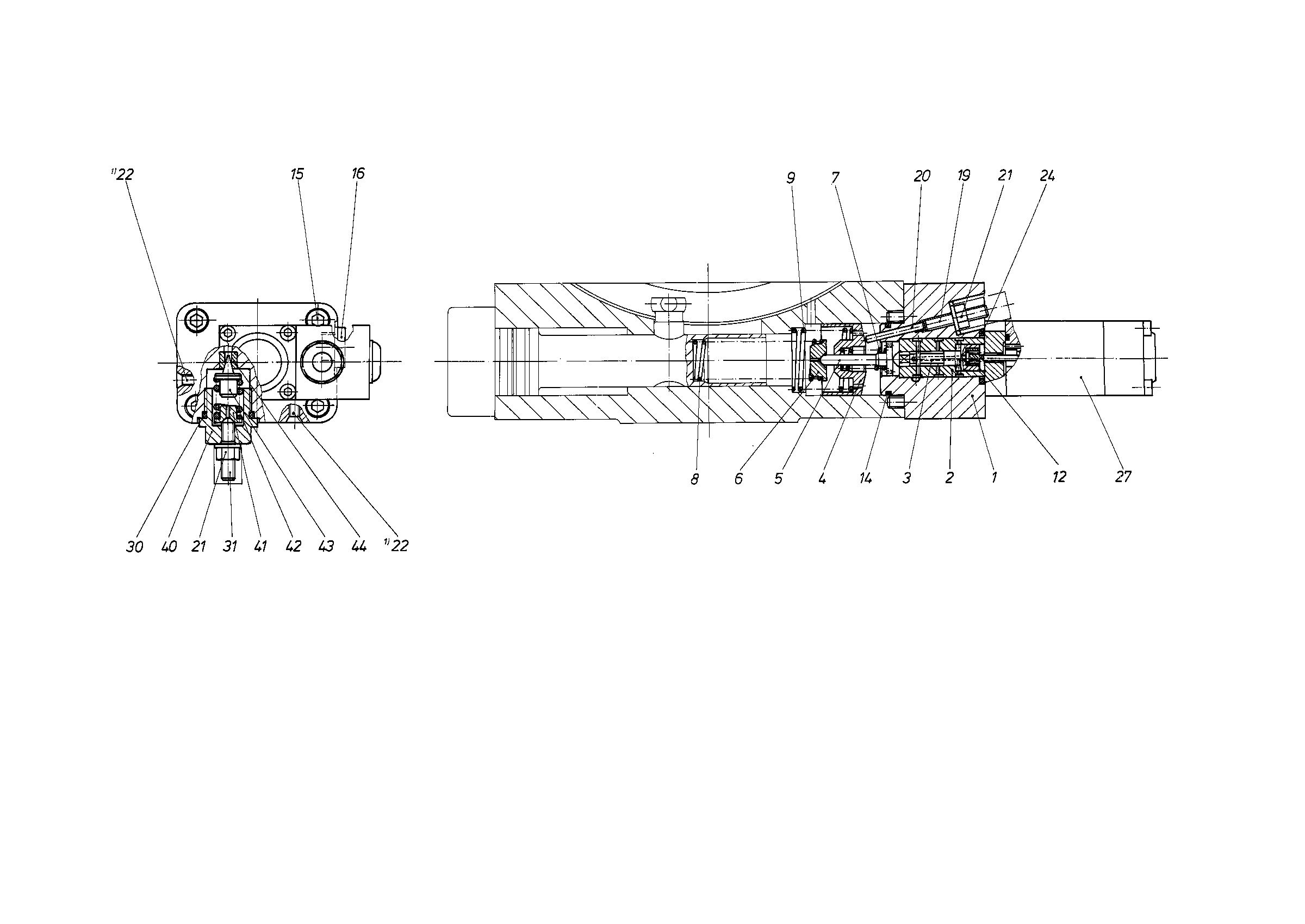

CONTROL PARTR909433909
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R909435054 | CONTROL HOUSING | 1 | ||
| R909420258 | CONTROL SLEEVE | 1 | ||
| R909435014 | CONTROL PISTON | 1 | ||
| R909651119 | ADJUSTING BUSHING | 1 | ||
| R909418761 | SPRING BOLT | 1 | ||
| R909412988 | SPRING DISK | 1 | ||
| R909413346 | COMPRESSION SPRING | 1 | ||
| 8 | R909432445 | COMPRESSION SPRING | 1 | |
| R909651117 | COMPRESSION SPRING | 1 | ||
| R909420260 | INTERMEDIATE PIECE | 1 | ||
| 14 | R909152377 | O-RINGD | 1 | |
| R909083042 | SOCKET HEAD CAP SCREW | 4 | ||
| R909153930 | SCREW PLUGD | 1 | ||
| R909152427 | SETSCREW | 1 | ||
| R909087167 | STRAIGHT PIN | 1 | ||
| 21 | R909152425 | SEALING NUTD | 2 | |
| 22 | R909831317 | DOUBLE BREAK-OFF PLUG | 3 | |
| 24 | R909152686 | O-RINGD | 1 | |
| R909433904 | PROPORTIONAL SOLENOID Stückliste der Baugruppe →L | 1 | ||
| 30 | R909154235 | O-RINGD | 1 | |
| 31 | R909154140 | SETSCREW | 1 | |
| 40 | R909443089 | SCREW PLUG | 1 | |
| R909449205 | SPRING DISK | 1 | ||
| 42 | R909431771 | COMPRESSION SPRING | 1 | |
| 43 | R902011673 | VALVE CONE | 1 | |
| 44 | R909415904 | BUSHING | 1 |
