Baugruppe

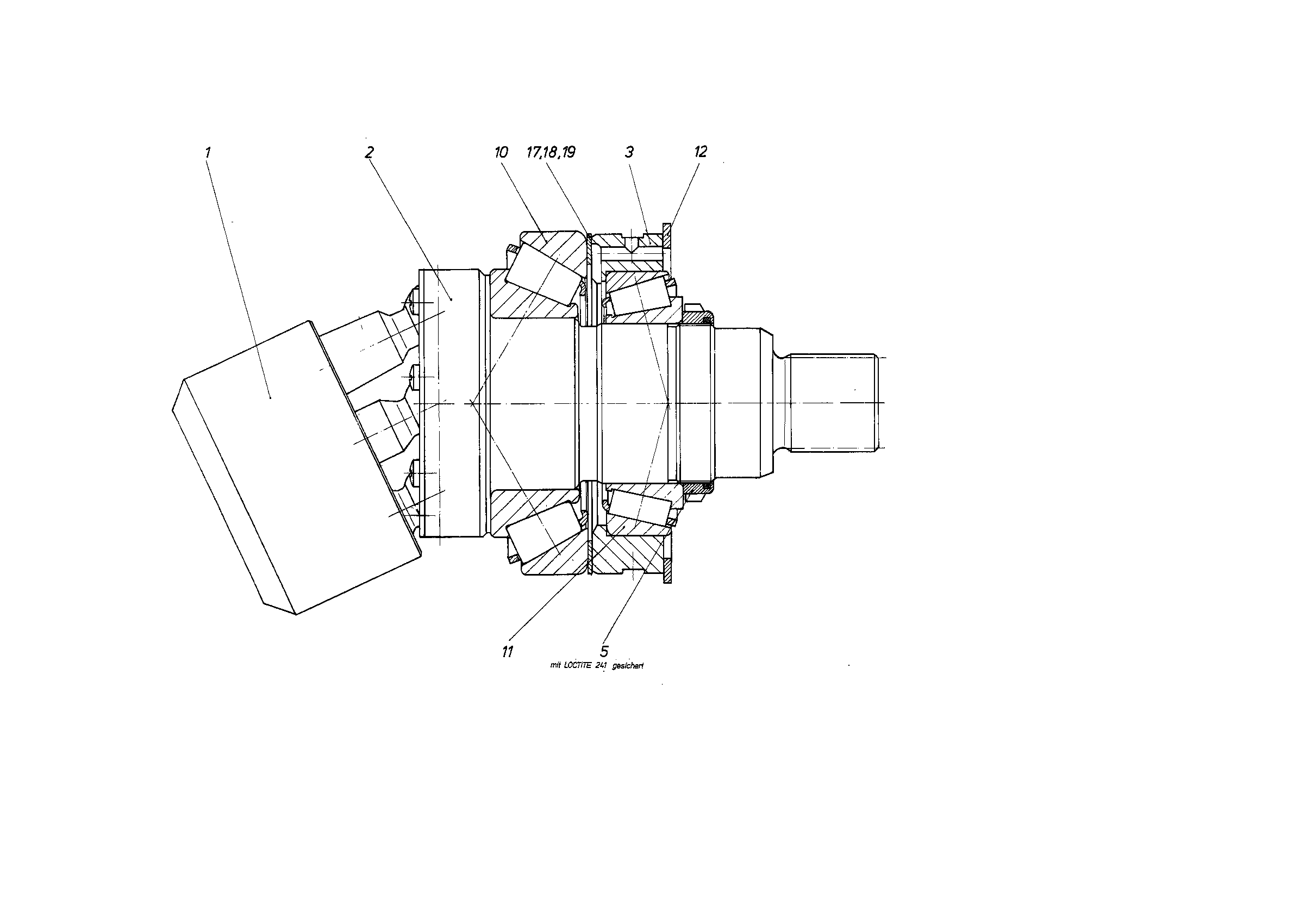

ROTARY GROUPR909433915
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| 1 | R909428944 | ROTARY GROUP Stückliste der Baugruppe →L | 1 | |
| 2 | R909425775 | DRIVE SHAFT | 1 | |
| R909410637 | BEARING RING | 1 | ||
| 5 | R909156328 | SLOTTED ROUND NUT | 1 | |
| 10 | R909154687 | TAPERED-ROLLER BEARING | 1 | |
| 11 | R909154688 | TAPERED-ROLLER BEARING | 1 | |
| R909083422 | RETAINING RING | 1 | ||
| 17 | R909156331 | SHIM RING | 2 | |
| 18 | R909156332 | SHIM RING | 1 | |
| 19 | R909156333 | SHIM RING | 1 |
