Baugruppe

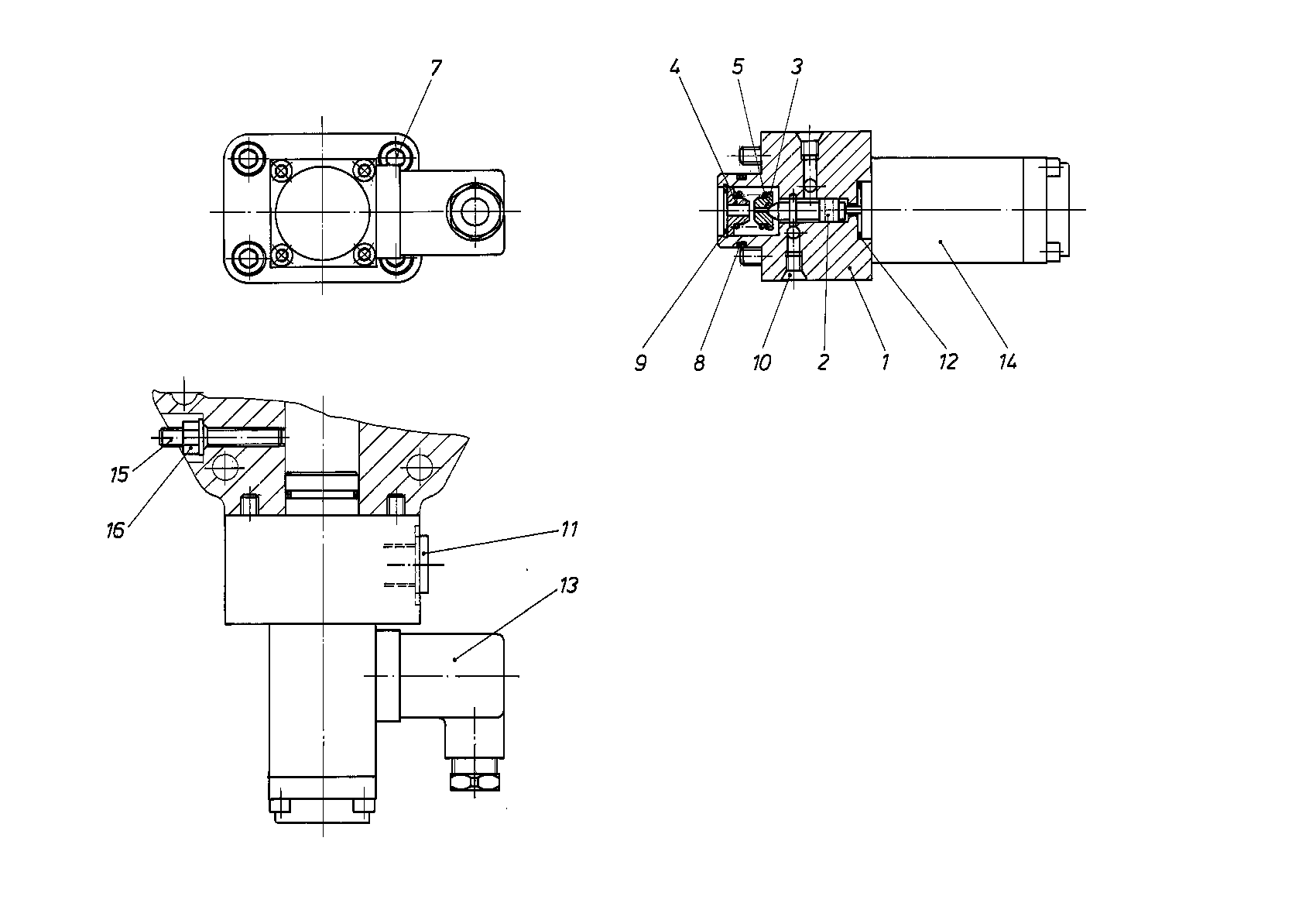

CONTROL PARTR909433943
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| 1 | R909435030 | CONTROL HOUSING | 1 | |
| 2 | R909426137 | CONTROL PISTON | 1 | |
| 3 | R909426138 | SPRING DISK | 1 | |
| 4 | R909426136 | SPRING DISK | 1 | |
| 5 | R909436459 | COMPRESSION SPRING | 1 | |
| 7 | R909083025 | SOCKET HEAD CAP SCREW | 4 | |
| 8 | R909086432 | O-RINGD | 1 | |
| 9 | R909083381 | RETAINING RING | 1 | |
| R909831317 | DOUBLE BREAK-OFF PLUG | 3 | ||
| 11 | R909151979 | SCREW PLUGD | 1 | |
| R909083734 | O-RINGD | 1 | ||
| R913022795 | PLUG-IN CONNECTOR | 1 | ||
| R909428265 | SWITCHING SOLENOID Stückliste der Baugruppe →L | 1 | ||
| 15 | R909154057 | SETSCREW | 1 | |
| R909152425 | SEALING NUTD | 1 |
