Baugruppe

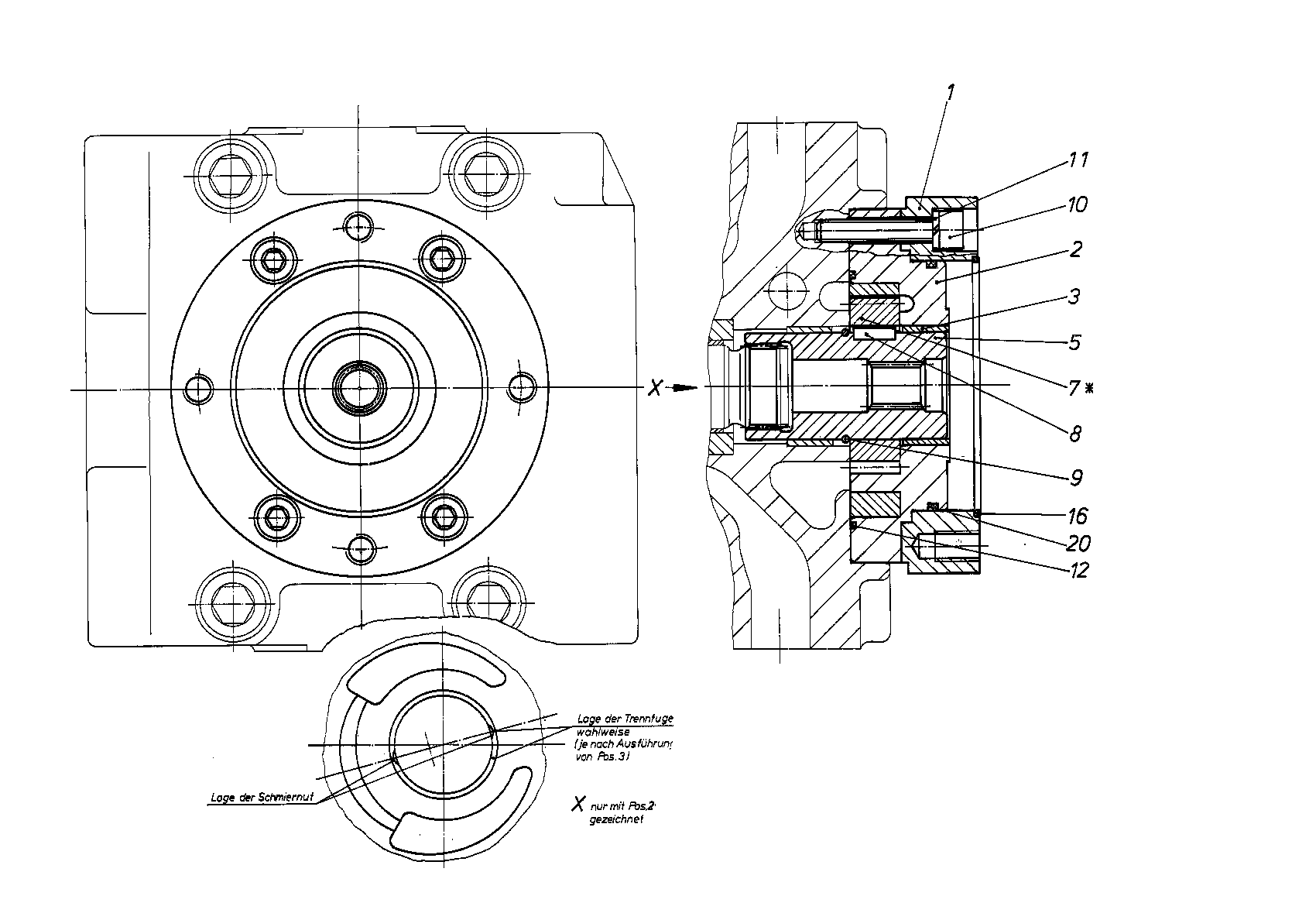

INTERNAL GEAR PUMPR909434239
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| 1 | R909439373 | INTERMEDIATE FLANGE | 1 | |
| 2 | R909439853 | PUMP COVER | 1 | |
| 3 | R902260548 | BUSHING | 1 | |
| R909650367 | THROUGH DRIVE SHAFT | 1 | ||
| 7 | R902006256 | WHEEL SET | 1 | |
| 8 | R902025649 | PARALLEL KEY | 1 | |
| 9 | R909152046 | SNAP RING | 1 | |
| 10 | R909830176 | SOCKET HEAD CAP SCREW | 4 | |
| 11 | R909083250 | SPRING LOCK WASHER | 4 | |
| R913037188 | KANTSEALD | 1 | ||
| R909086720 | O-RINGD | 1 | ||
| R909083790 | O-RINGD | 1 |
