Baugruppe

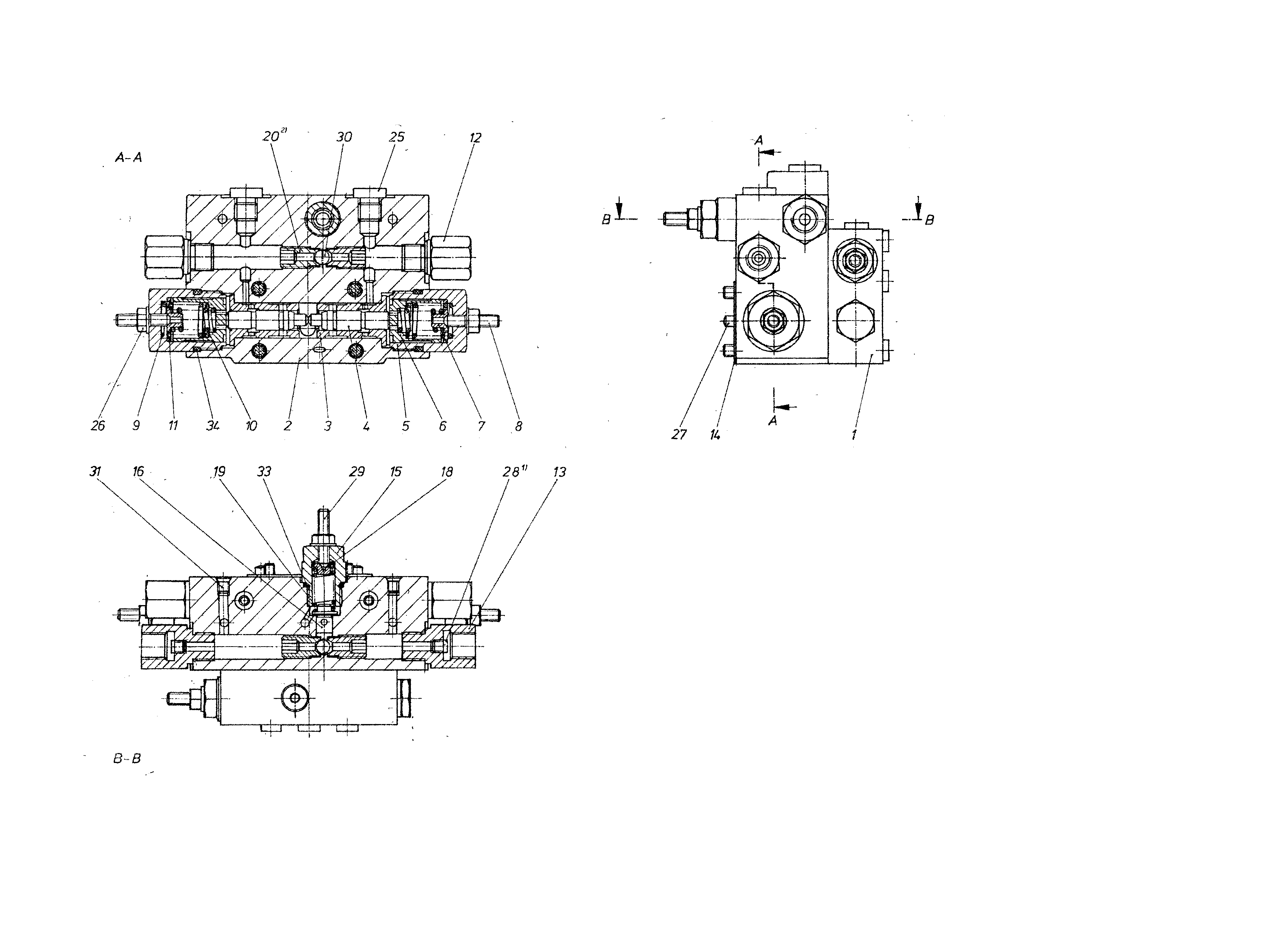

TORQUE-PRESSURE CONTROL VALVER909434365
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| 1 | R909434357 | BRAKE VALVE Stückliste der Baugruppe →L | 1 | |
| 2 | R909440102 | HOUSING | 1 | |
| R909426488 | CONTROL SLEEVE | 2 | ||
| R909436800 | PISTON | 2 | ||
| 5 | R909422551 | SCREW PLUG | 2 | |
| 6 | R909422552 | SPRING BUSH | 2 | |
| 7 | R902215679 | SPRING DISK | 2 | |
| 8 | R909414604 | SETSCREW | 2 | |
| 9 | R909074775 | COMPRESSION SPRING | 2 | |
| 10 | R909435572 | COMPRESSION SPRING | 2 | |
| 11 | R909430080 | RING | 2 | |
| R909071078 | THREADED REDUCING STUD | 2 | ||
| R909424849 | THREADED REDUCING STUD | 2 | ||
| 14 | R913049009 | SEALD | 1 | |
| R909435459 | SCREW PLUG | 1 | ||
| R909424575 | VALVE SPOOL | 1 | ||
| R909424574 | SPRING DISK | 1 | ||
| R909424796 | COMPRESSION SPRING | 1 | ||
| R902024498 | VALVE PIN | 4 | ||
| R909151692 | SCREW PLUG | 3 | ||
| 26 | R909152425 | SEALING NUT | 3 | |
| R913009665 | STRAIGHT PIN | 2 | ||
| 28 | R909156494 | NOZZLE | 2 | |
| R909154140 | SETSCREW | 1 | ||
| R909087021 | BALL | 2 | ||
| 31 | R909831318 | DOUBLE BREAK-OFF PLUG | 3 | |
| R909086435 | O-RINGD | 1 | ||
| 34 | R909083764 | O-RINGD | 2 |
