Baugruppe

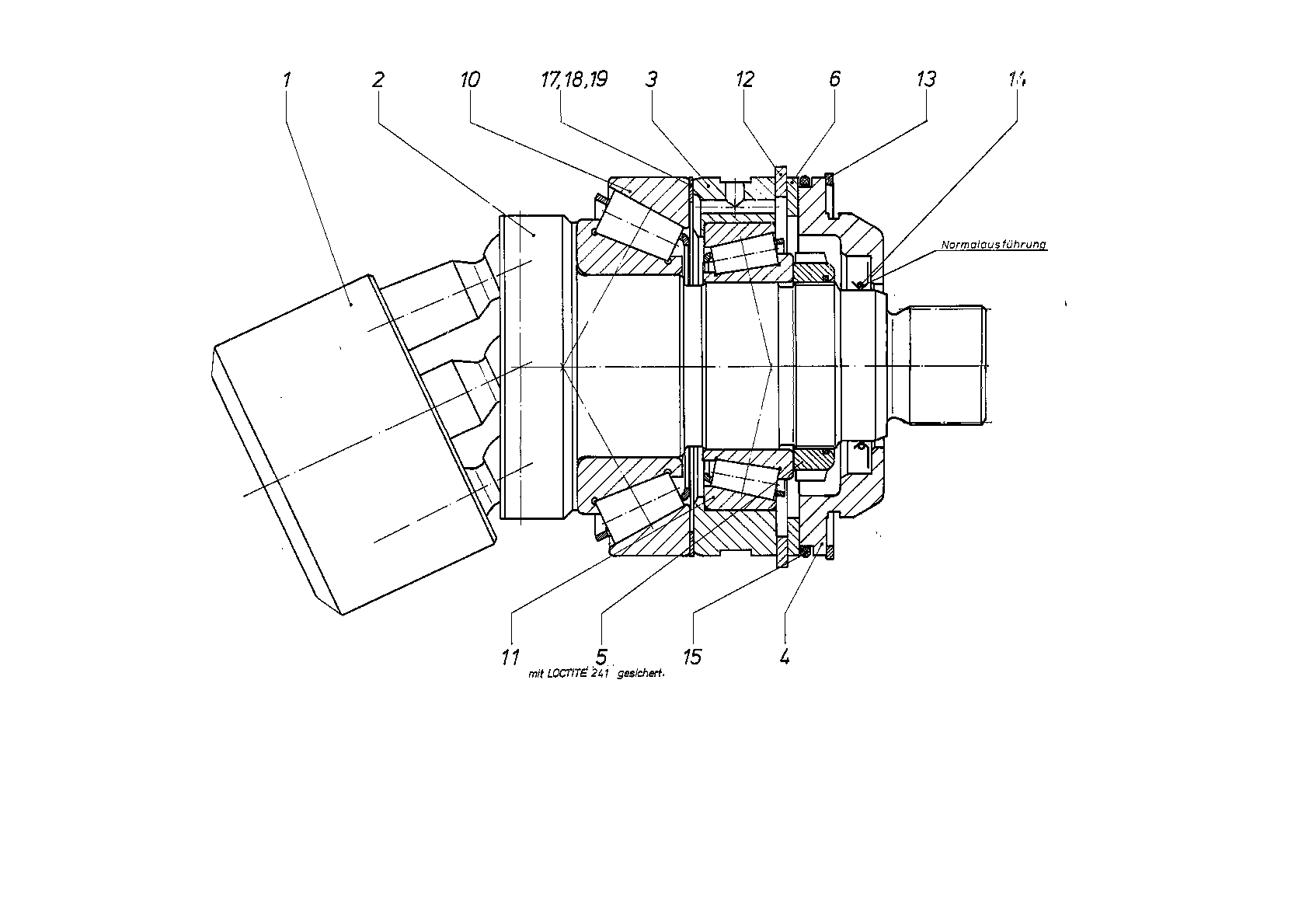

ROTARY GROUPR909434402
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| 1 | R909429554 | ROTARY GROUP Stückliste der Baugruppe →L | 1 | |
| R909435585 | DRIVE SHAFT | 1 | ||
| 3 | R909408872 | BEARING RING | 1 | |
| R909435584 | LOCKING RINGD | 1 | ||
| 5 | R913037932 | SLOTTED ROUND NUT | 1 | |
| 6 | R909156267 | SUPPORTING DISC | 1 | |
| R909154382 | TAPERED-ROLLER BEARING | 1 | ||
| R909154293 | TAPERED-ROLLER BEARING | 1 | ||
| R909152143 | RETAINING RING | 1 | ||
| R909154361 | SNAP RING | 1 | ||
| 14 | R909831178 | SHAFT SEALING RINGD | 1 | |
| R909086950 | O-RINGD | 1 | ||
| 17 | R909154359 | SHIM RING | 2 | |
| 18 | R909154360 | SHIM RING | 1 | |
| 19 | R909156296 | SHIM RING | 1 |
