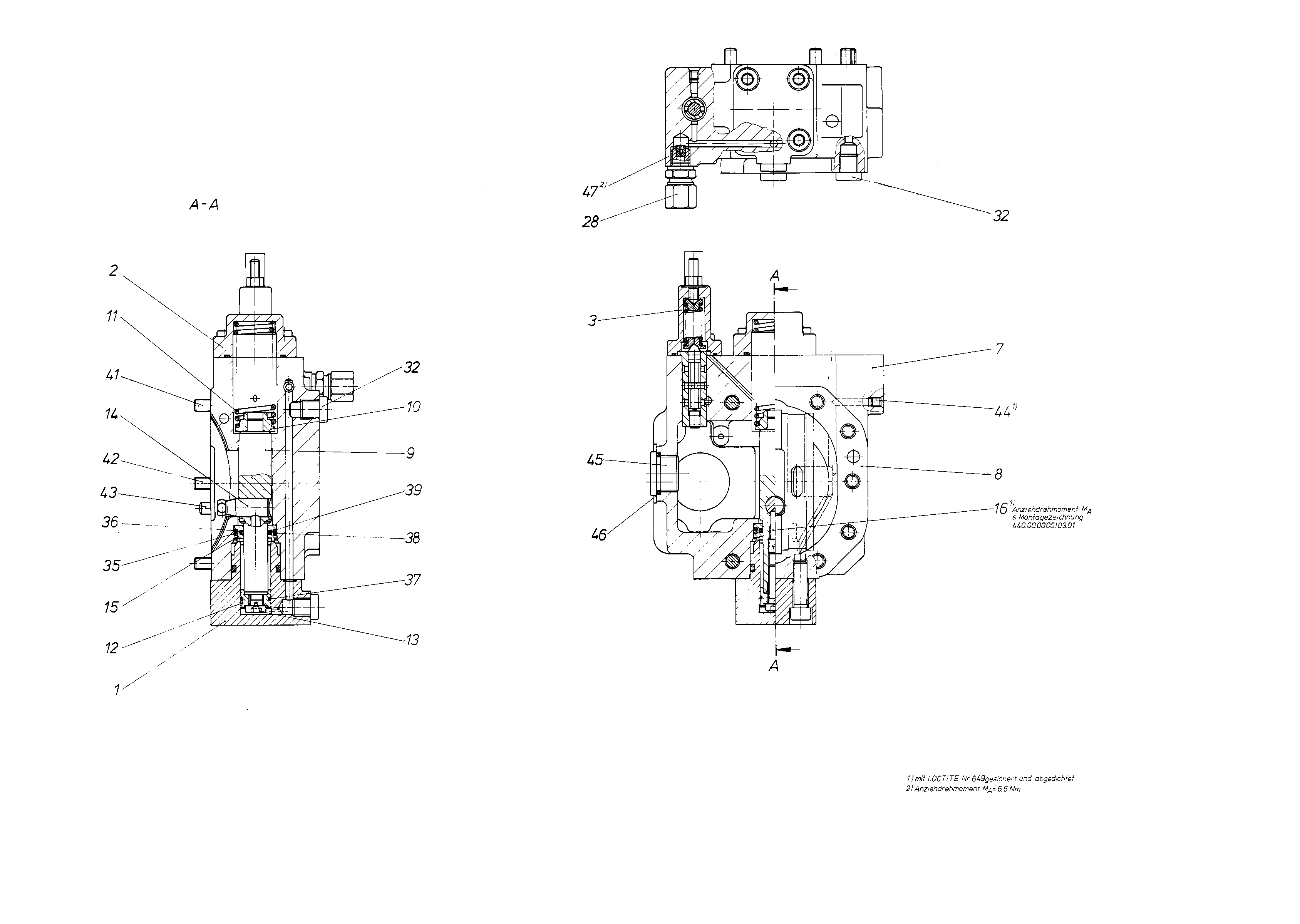

Baugruppe
CONTROLR909434537
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R902014052 | GUIDE COVER Stückliste der Baugruppe →L | 1 | ||
| 2 | R909427187 | COVER Stückliste der Baugruppe →L | 1 | |
| 3 | R909427553 | CONTROL PART Stückliste der Baugruppe →L | 1 | |
| 7 | R902014187 | COVER PLATE, CLOCKWISE ROTATION | 1 | |
| R902024641 | SEALD | 1 | ||
| 9 | R909430103 | POSITIONING PISTON | 1 | |
| 10 | R909430100 | SPRING DISK | 1 | |
| R909426527 | COMPRESSION SPRING | 1 | ||
| 12 | R909430099 | PISTON | 1 | |
| R909083191 | SOCKET HEAD CAP SCREW | 1 | ||
| R909425515 | POSITIONING STUD | 1 | ||
| R909430101 | SEAL RING | 1 | ||
| 16 | R909409589 | SETSCREW | 1 | |
| R909403866 | THREADED FASTENER | 1 | ||
| 32 | R909151692 | SCREW PLUGD | 2 | |
| 35 | R909083761 | O-RINGD | 1 | |
| 36 | R909157774 | BACKUP RINGD | 1 | |
| R909153873 | R-RINGD | 1 | ||
| 38 | R909157773 | ROD SEALD | 1 | |
| 39 | R909084939 | O-RINGD | 1 | |
| 41 | R909083049 | SOCKET HEAD CAP SCREW | 7 | |
| 42 | R909083036 | SOCKET HEAD CAP SCREW | 1 | |
| 43 | R913009667 | STRAIGHT PIN | 2 | |
| 44 | R909831318 | DOUBLE BREAK-OFF PLUG | 6 | |
| 45 | R909083226 | SCREW PLUG | 1 | |
| R909086517 | O-RINGD | 1 | ||
| 47 | R909156492 | NOZZLE | 1 |
