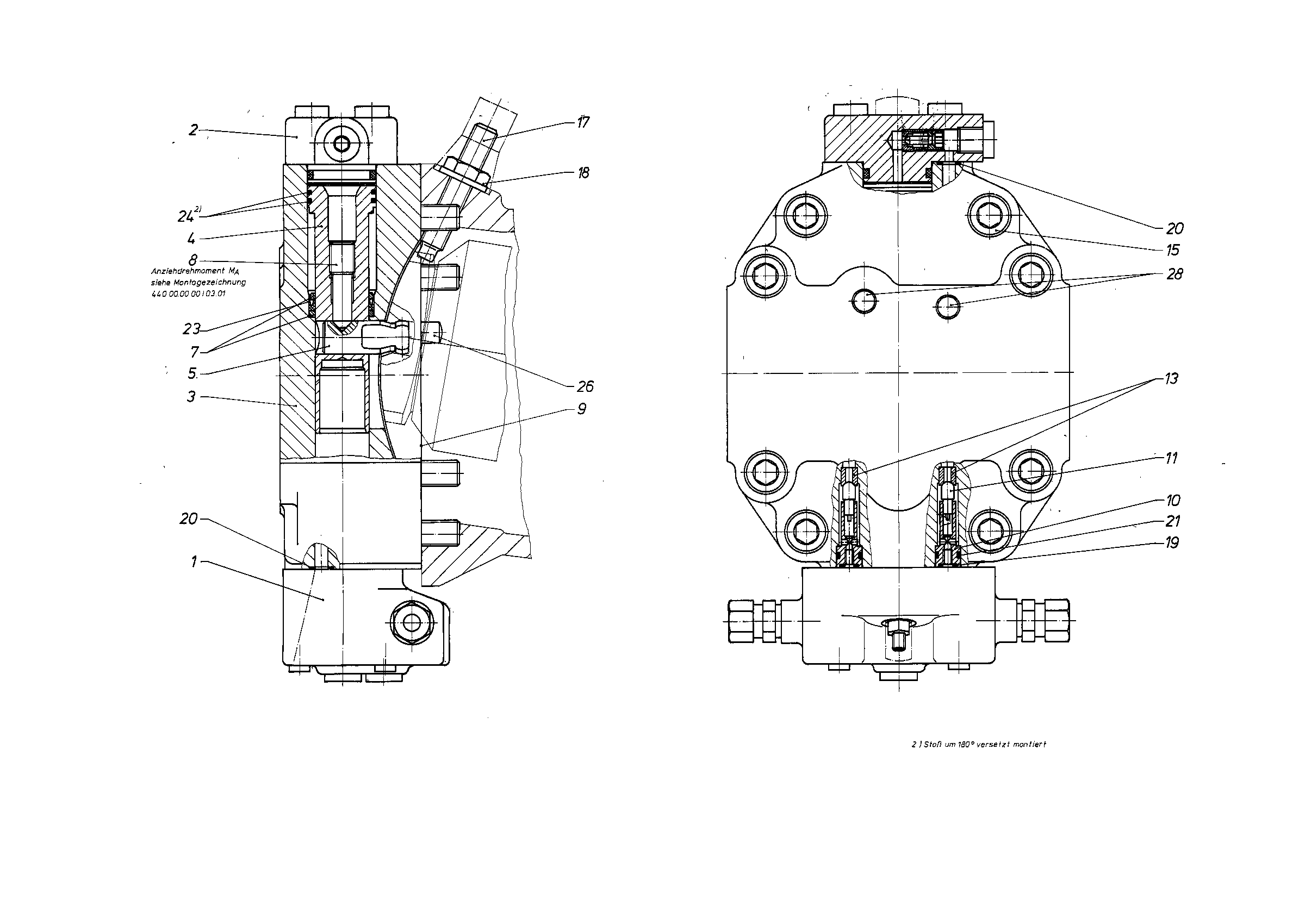

Baugruppe
CONTROLR909434552
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R909434553 | CONTROL PART Stückliste der Baugruppe →L | 1 | ||
| R909423182 | COVER Stückliste der Baugruppe →L | 1 | ||
| 3 | R909430279 | COVER PLATE | 1 | |
| R909424056 | POSITIONING PISTON | 1 | ||
| 5 | R909424057 | POSITIONING STUD | 1 | |
| R909424058 | BACKUP RING | 2 | ||
| 9 | R909651917 | SEALD | 1 | |
| R902075344 | VALVE GUIDE | 2 | ||
| 11 | R909426662 | BOLT | 2 | |
| 13 | R902209845 | BUSHING | 2 | |
| 15 | R909083131 | SOCKET HEAD CAP SCREW | 8 | |
| 17 | R909446862 | SETSCREW Stückliste der Baugruppe →L | 1 | |
| 18 | R909152459 | SEALING NUTD | 1 | |
| R909084469 | O-RINGD | 2 | ||
| R909086498 | O-RINGD | 3 | ||
| R909085709 | O-RINGD | 2 | ||
| 22 | R902602322 | BACKUP RING | 2 | |
| 23 | R909156543 | ROD SEALD | 1 | |
| 24 | R909087955 | R-RINGD | 2 | |
| 26 | R913009666 | STRAIGHT PIN | 2 | |
| 28 | R909831319 | DOUBLE BREAK-OFF PLUG | 1 |
