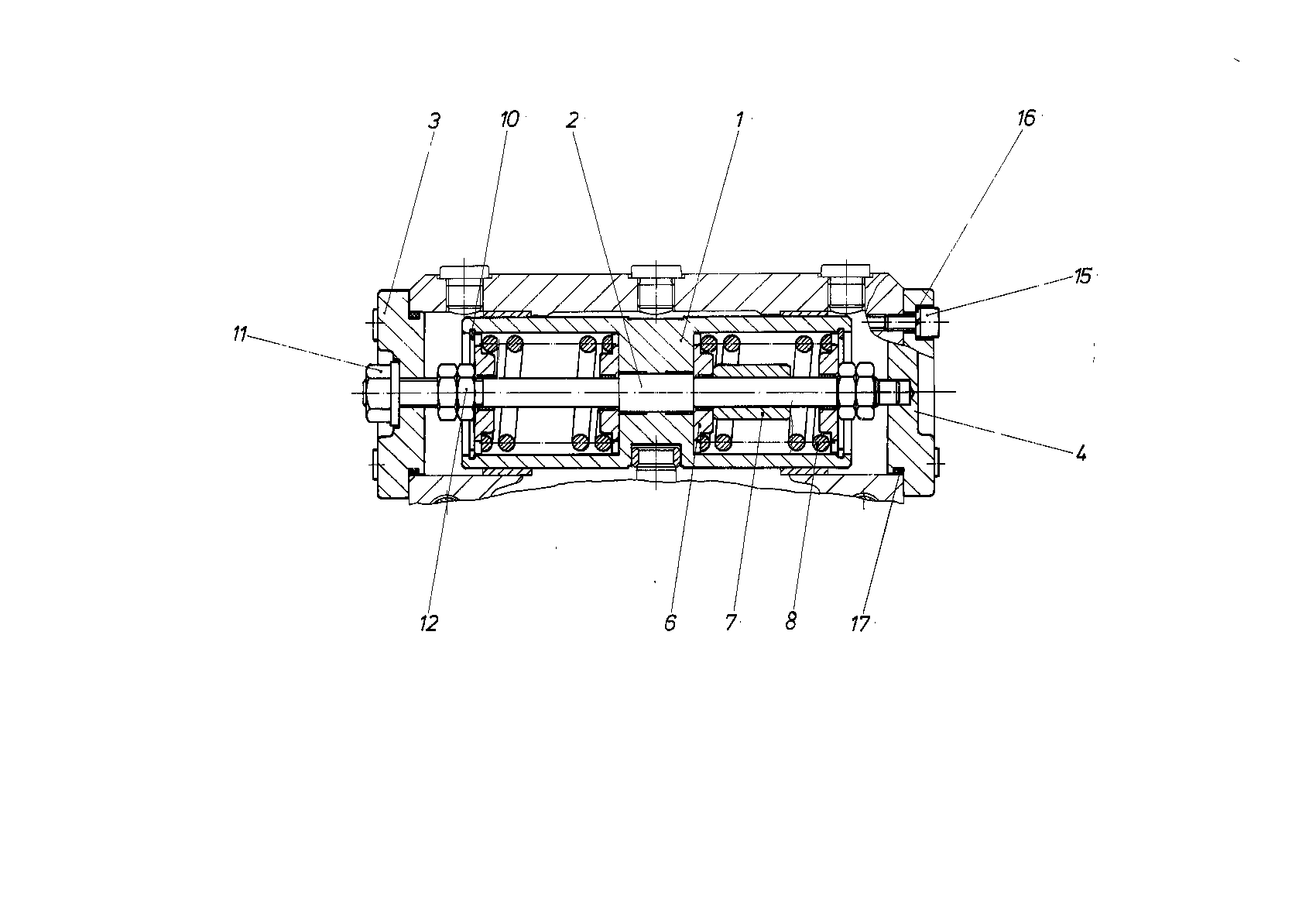

Baugruppe
CONTROLR909434562
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R909651773 | POSITIONING PISTON | 1 | ||
| 2 | R909414460 | ROD | 1 | |
| 3 | R909400425 | COVER | 1 | |
| R909414456 | COVER | 1 | ||
| 6 | R909404798 | SPRING DISK | 4 | |
| R909435850 | SPACER BUSHING | 2 | ||
| — | SPACER BUSHING | 1 | ||
| — | SPACER BUSHING | 1 | ||
| R909418170 | COMPRESSION SPRING | 2 | ||
| R909083400 | RETAINING RING | 2 | ||
| R909153271 | SEALING NUTD | 1 | ||
| R902017521 | HEXAGON NUT | 4 | ||
| 15 | R909083018 | SOCKET HEAD CAP SCREW | 8 | |
| 16 | R909083249 | SPRING LOCK WASHER | 8 | |
| 17 | R909086804 | O-RINGD | 2 |
