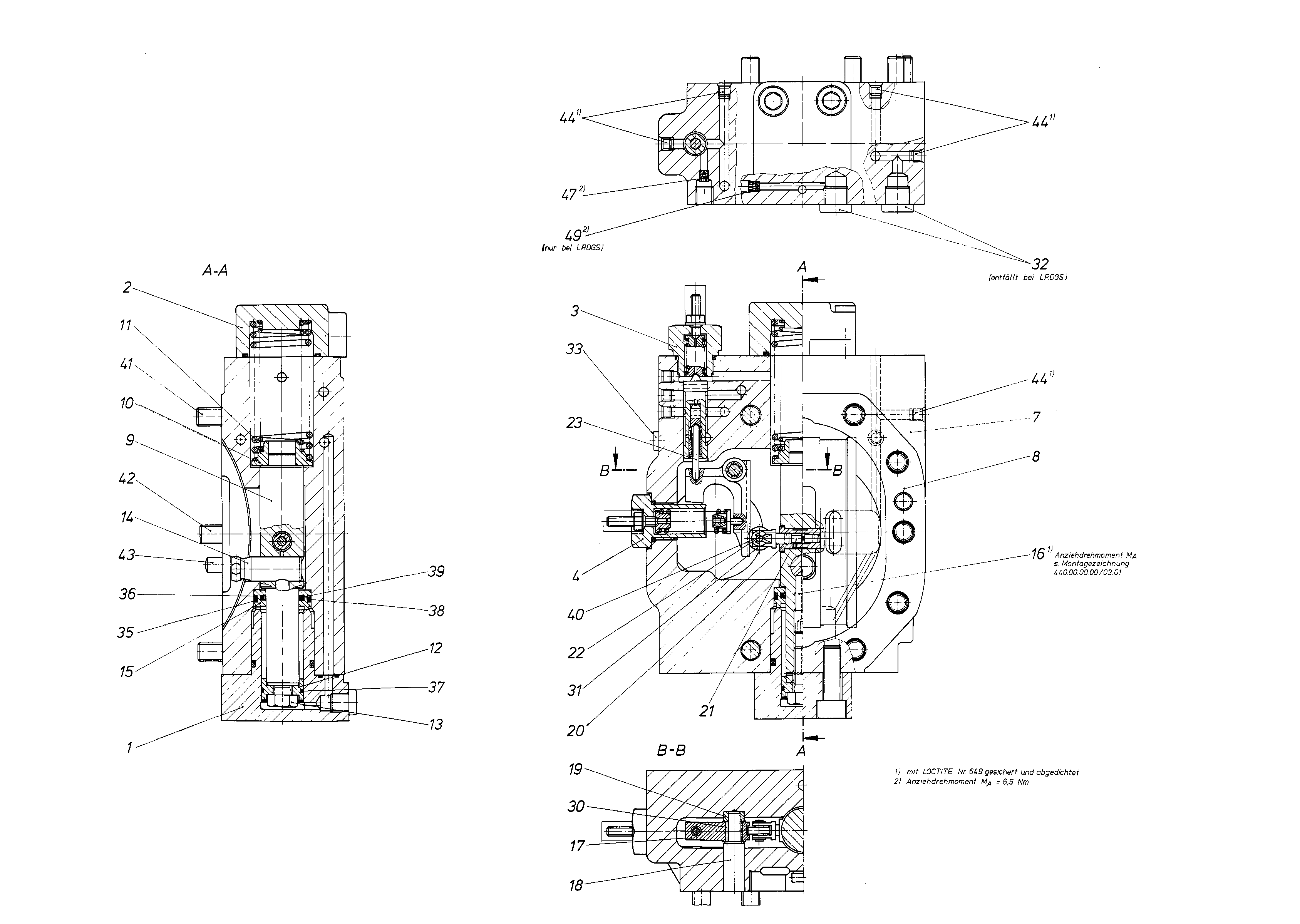

Baugruppe
CONTROLR909434657
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R909427196 | GUIDE COVER Stückliste der Baugruppe →L | 1 | ||
| 2 | R909427190 | COVER Stückliste der Baugruppe →L | 1 | |
| 3 | R909441228 | CONTROL PART Stückliste der Baugruppe →L | 1 | |
| R909427313 | ADJUSTING PART Stückliste der Baugruppe →L | 1 | ||
| R909431314 | COVER PLATE, CLOCKWISE ROTATION | 1 | ||
| 8 | R902024645 | SEALD | 1 | |
| 9 | R909430131 | POSITIONING PISTON | 1 | |
| R909430130 | SPRING DISK | 1 | ||
| R909426026 | COMPRESSION SPRING | 1 | ||
| R909430128 | PISTON | 1 | ||
| 13 | R909430146 | SOCKET HEAD CAP SCREW | 1 | |
| R909425457 | POSITIONING STUD | 1 | ||
| R909430129 | SEAL RING | 1 | ||
| R909413697 | SETSCREW | 1 | ||
| R909427509 | LEVER | 1 | ||
| R909418662 | BEARING BOLT | 1 | ||
| 19 | R909412689 | BUSHING | 1 | |
| R909426934 | ADJUSTING BUSH | 1 | ||
| R909426935 | MEASURING PISTON | 1 | ||
| R909411231 | BOLT | 1 | ||
| R909431312 | PIN | 1 | ||
| R909156588 | NEEDLE-ROLLER ASSEMBLY | 1 | ||
| R909087327 | DEEP-GROOVE BALL BEARING | 1 | ||
| 32 | R909153816 | SCREW PLUGD | 2 | |
| R909154024 | SCREW PLUGD | 1 | ||
| R909086336 | O-RINGD | 1 | ||
| R909157784 | BACKUP RINGD | 1 | ||
| R909156479 | R-RINGD | 1 | ||
| 38 | R909157787 | ROD SEALD | 1 | |
| 39 | R909083769 | O-RINGD | 1 | |
| R909085810 | LOCKING WASHER | 2 | ||
| 41 | R909083144 | SOCKET HEAD CAP SCREW | 7 | |
| R909083131 | SOCKET HEAD CAP SCREW | 1 | ||
| 43 | R913009666 | STRAIGHT PIN | 2 | |
| 44 | R909831319 | DOUBLE BREAK-OFF PLUG | 7 | |
| 47 | R909156492 | NOZZLE | 1 |
