Baugruppe

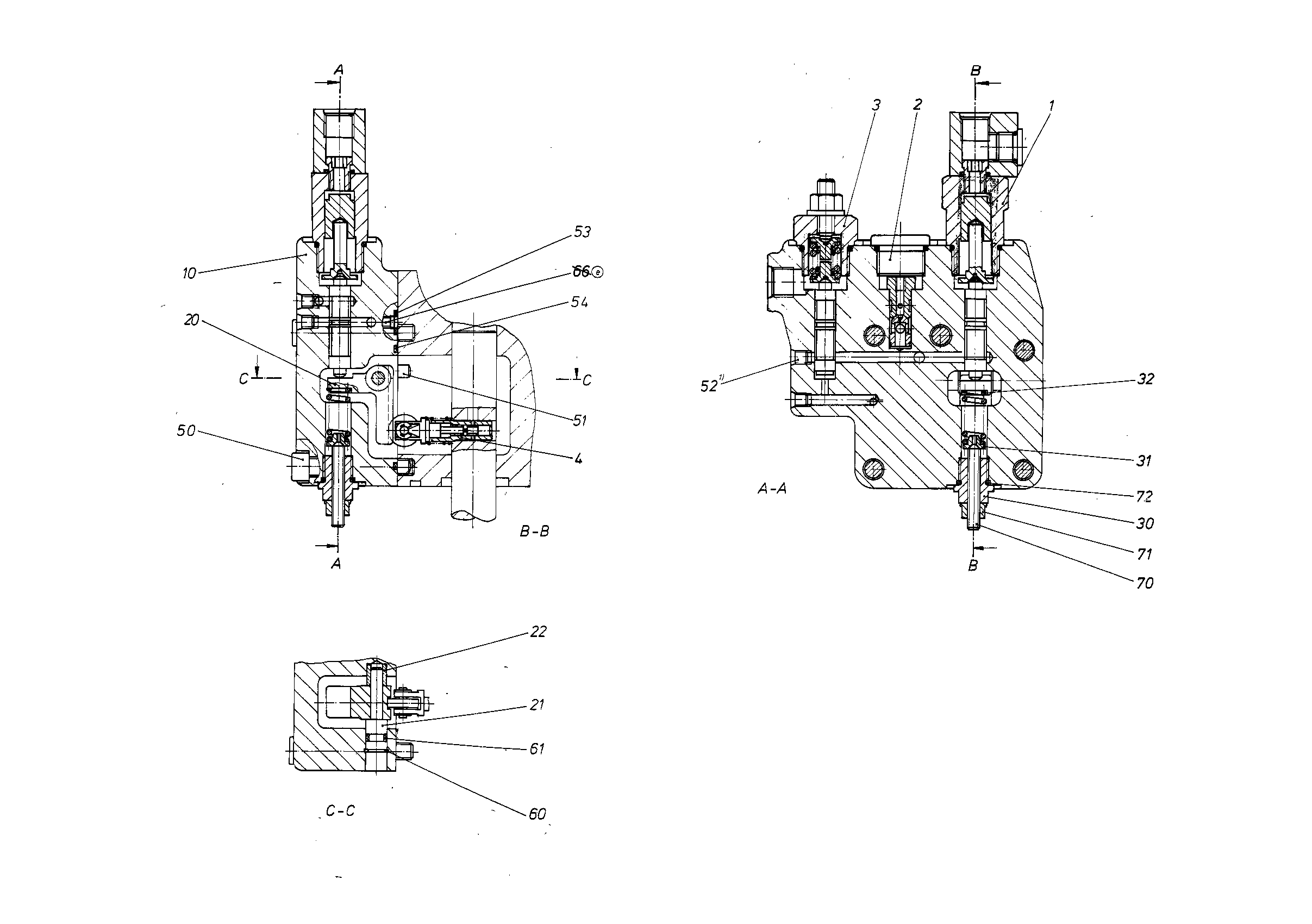

REGULATORR909434663
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R909434664 | CONTROL ELEMENT Stückliste der Baugruppe →L | 1 | ||
| R909433184 | CONTROL ELEMENT Stückliste der Baugruppe →L | 1 | ||
| R909435878 | MEASURING PISTON Stückliste der Baugruppe →L | 1 | ||
| R909432826 | CONTROL HOUSING | 1 | ||
| 11 | R909431326 | LOCKING BOLT | 1 | |
| R909435846 | ANGLE LEVER | 1 | ||
| R909431281 | BEARING BOLT | 1 | ||
| R909431286 | BUSHING | 1 | ||
| R909413178 | SCREW PLUG | 1 | ||
| R909417378 | SPRING DISK | 1 | ||
| R909416364 | COMPRESSION SPRING | 1 | ||
| R909083044 | SOCKET HEAD CAP SCREW | 5 | ||
| R913009676 | STRAIGHT PIN | 2 | ||
| R909831318 | DOUBLE BREAK-OFF PLUG | 7 | ||
| R909157512 | O-RINGD | 3 | ||
| R902600656 | O-RINGD | 1 | ||
| 55 | R909083225 | SCREW PLUG | 1 | |
| 56 | R909083758 | O-RINGD | 1 | |
| R909087248 | RETAINING RING | 1 | ||
| R909086380 | O-RINGD | 1 | ||
| R909154865 | SETSCREW | 1 | ||
| R909152425 | SEALING NUTD | 1 | ||
| R909086729 | O-RINGD | 1 |
