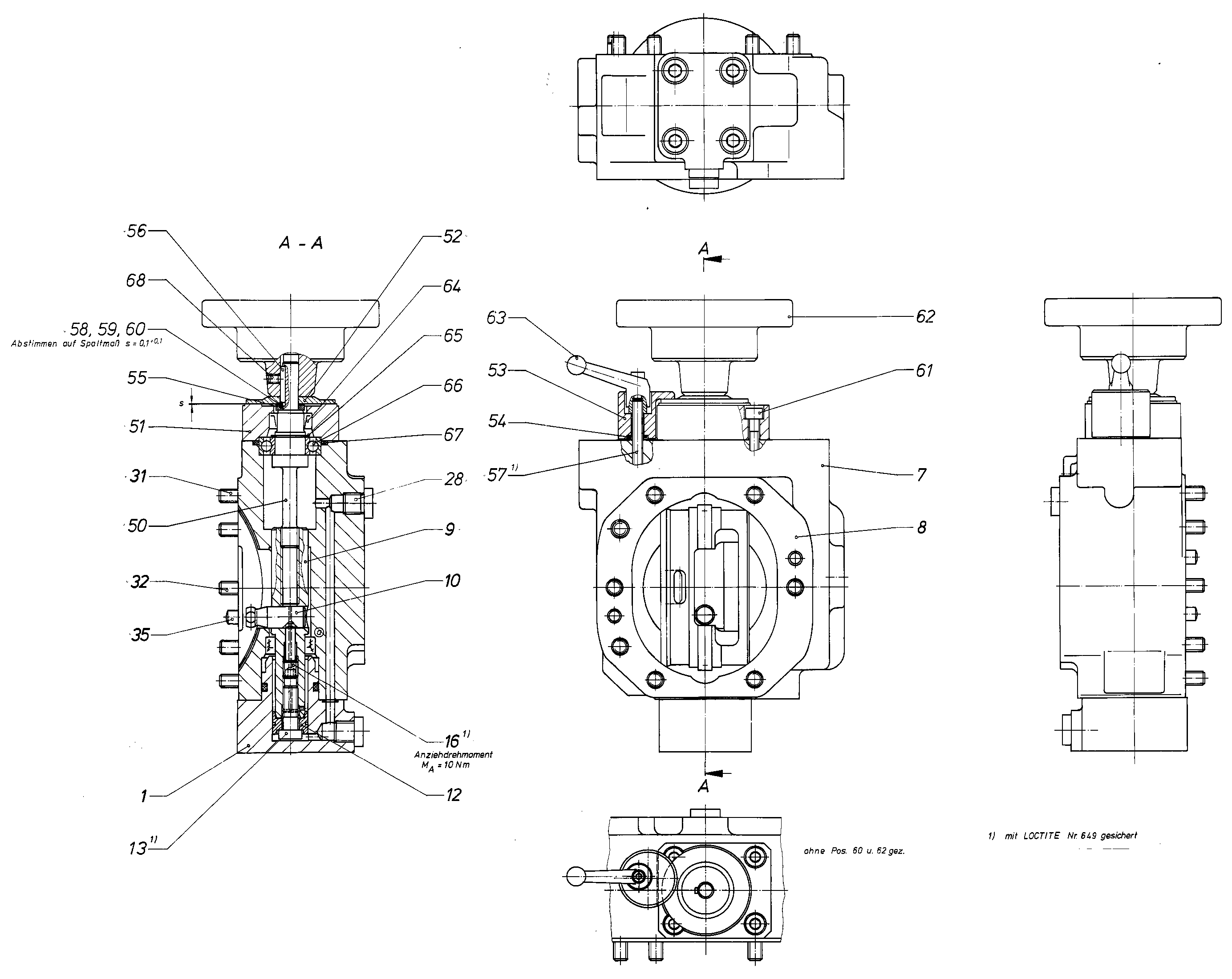

Baugruppe
CONTROLR909434810
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R902014053 | GUIDE COVER Stückliste der Baugruppe →L | 1 | ||
| R909436008 | COVER PLATE, CLOCKWISE ROTATION | 1 | ||
| R902024641 | SEALD | 1 | ||
| R909436009 | POSITIONING PISTON | 1 | ||
| R909425514 | POSITIONING STUD | 1 | ||
| R909430099 | PISTON | 1 | ||
| R909430464 | SOCKET HEAD CAP SCREW | 1 | ||
| R909417903 | SETSCREW | 1 | ||
| R909156650 | SCREW PLUGD | 1 | ||
| R909083049 | SOCKET HEAD CAP SCREW | 7 | ||
| R909083036 | SOCKET HEAD CAP SCREW | 1 | ||
| R913009667 | STRAIGHT PIN | 2 | ||
| R909436015 | ADJUSTMENT SPINDLE | 1 | ||
| R909436012 | COVER | 1 | ||
| R909430630 | CLAMPING DISC | 1 | ||
| R909430629 | EXPANSION PIECE | 1 | ||
| R909411160 | DISC SPRING | 4 | ||
| R909430628 | SHIM RING | 1 | ||
| R909430627 | PARALLEL KEY | 1 | ||
| R909154057 | SETSCREW | 1 | ||
| R909153401 | SHIM RING | 2 | ||
| R909153402 | SHIM RING | 1 | ||
| R909150370 | SHIM RING | 1 | ||
| R909083021 | SOCKET HEAD CAP SCREW | 4 | ||
| R909156613 | HANDWHEEL | 1 | ||
| R909830246 | CLAMPING LEVER | 1 | ||
| R913040755 | ROTARY SHAFT LIP SEALD | 1 | ||
| R909083348 | RETAINING RING | 1 | ||
| R909085440 | DEEP-GROOVE BALL BEARING | 1 | ||
| R902600667 | O-RINGD | 1 | ||
| R909154098 | SETSCREW | 1 |
