Baugruppe

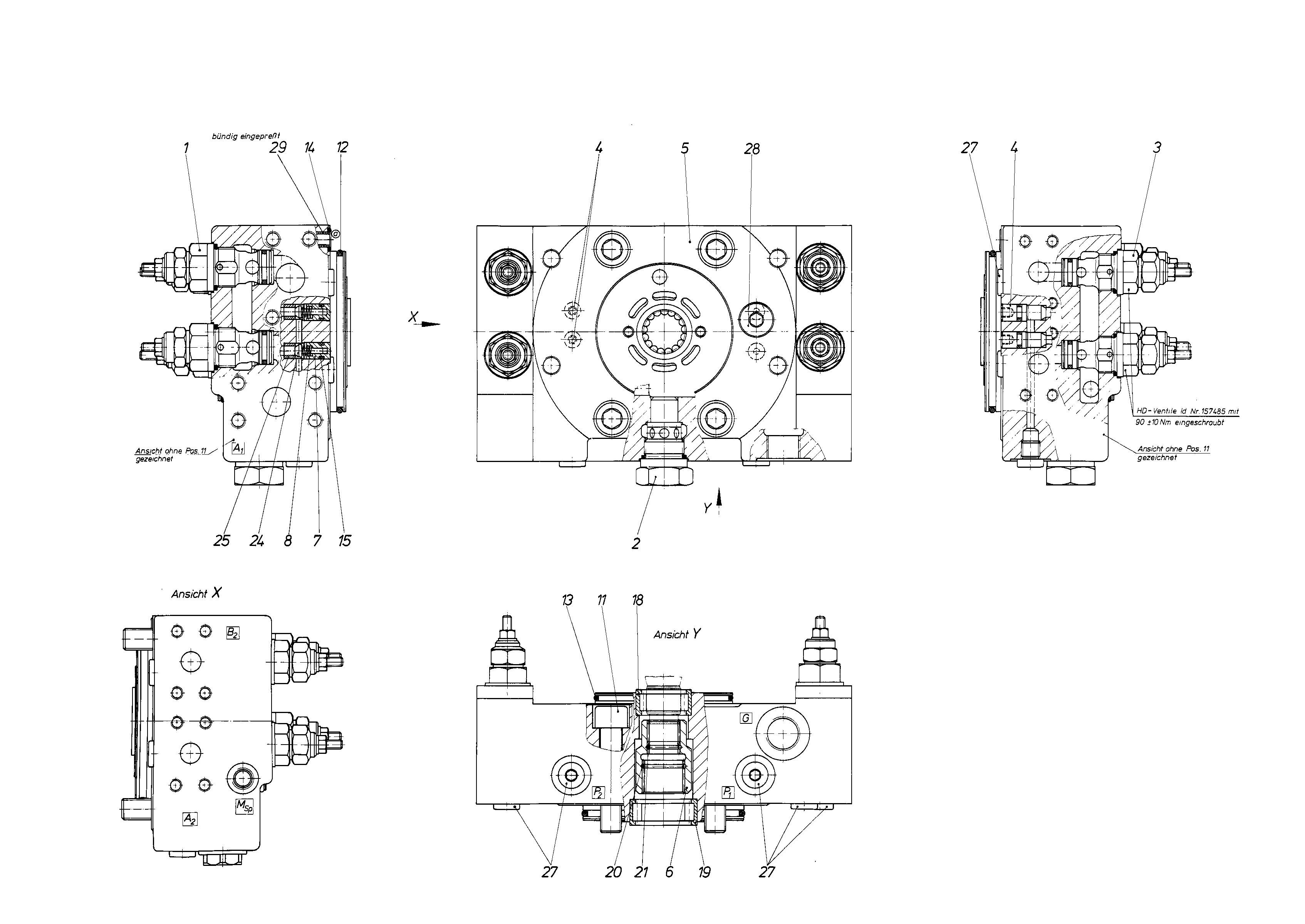

CONNECTION PLATER909434843
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R909417693 | PRESSURE RELIEF VALVE Stückliste der Baugruppe →L | 2 | ||
| 2 | R909434078 | PRESSURE RELIEF VALVE Stückliste der Baugruppe →L | 1 | |
| 3 | R902603802 | DELIVERY-VALVE ASSEMBLY Stückliste der Baugruppe →L | 2 | |
| R909434775 | LOCKING SET | 2 | ||
| R909439734 | CONNECTION PLATE | 1 | ||
| 6 | R909414196 | COUPLING HUB | 1 | |
| R909411289 | SPRING SLEEV | 2 | ||
| 8 | R909002466 | COMPRESSION SPRING | 2 | |
| 11 | R909153288 | SOCKET HEAD CAP SCREW | 4 | |
| R909086949 | O-RINGD | 1 | ||
| 13 | R909085360 | O-RINGD | 1 | |
| R909086332 | O-RINGD | 1 | ||
| R909157512 | O-RINGD | 2 | ||
| R909153245 | CYL. ROLLER BEARING | 1 | ||
| R909156249 | CYL. ROLLER BEARING | 1 | ||
| 20 | R909153971 | SNAP RING | 1 | |
| 21 | R909152509 | SNAP RING | 1 | |
| 24 | R909154215 | VALVE CONE | 2 | |
| 25 | R909085836 | VALVE SEAT | 2 | |
| R909151692 | SCREW PLUGD | 6 | ||
| R909444126 | SCREW PLUG | 1 | ||
| 29 | R902600852 | SLOTTED SPRING PIN | 1 |
