Baugruppe

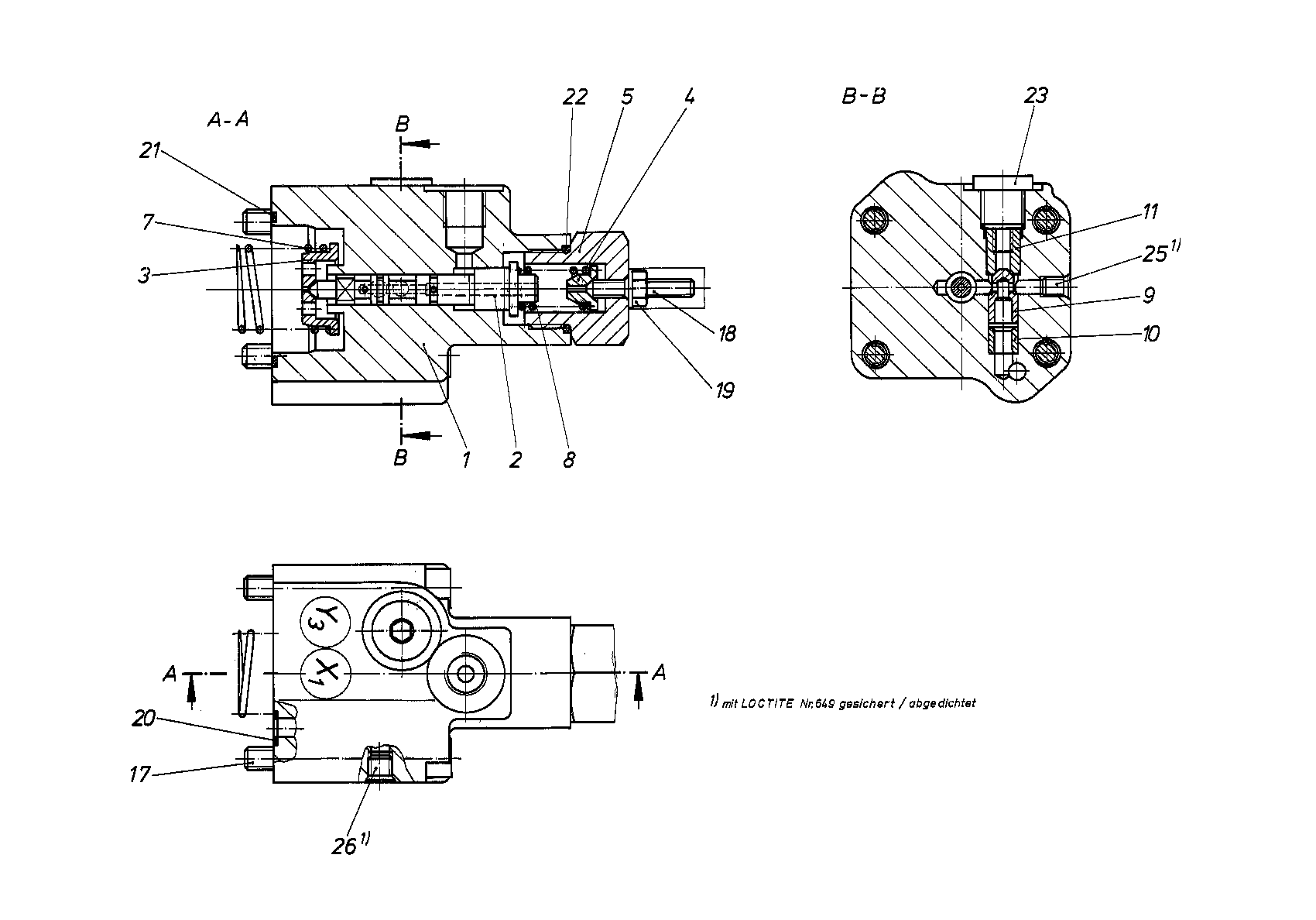

CONTROL UNITR909434923
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R909436124 | HOUSING | 1 | ||
| R902036565 | CONTROL PISTON | 1 | ||
| R909430562 | SPRING DISK | 1 | ||
| R909421369 | SPRING DISK | 1 | ||
| R909436200 | SCREW PLUG | 1 | ||
| R909426022 | COMPRESSION SPRING | 1 | ||
| R909430889 | COMPRESSION SPRING | 1 | ||
| R909651010 | VALVE SPOOL | 1 | ||
| R909425801 | BUSHING | 1 | ||
| R909425800 | BUSHING | 1 | ||
| R909083049 | SOCKET HEAD CAP SCREW | 4 | ||
| R909425219 | SETSCREW | 1 | ||
| R909152425 | SEALING NUTD | 1 | ||
| R909086332 | O-RINGD | 2 | ||
| R909086378 | O-RINGD | 1 | ||
| R909083761 | O-RINGD | 1 | ||
| R909151979 | SCREW PLUGD | 1 | ||
| R909831318 | DOUBLE BREAK-OFF PLUG | 1 | ||
| R909831319 | DOUBLE BREAK-OFF PLUG | 1 |
