Baugruppe

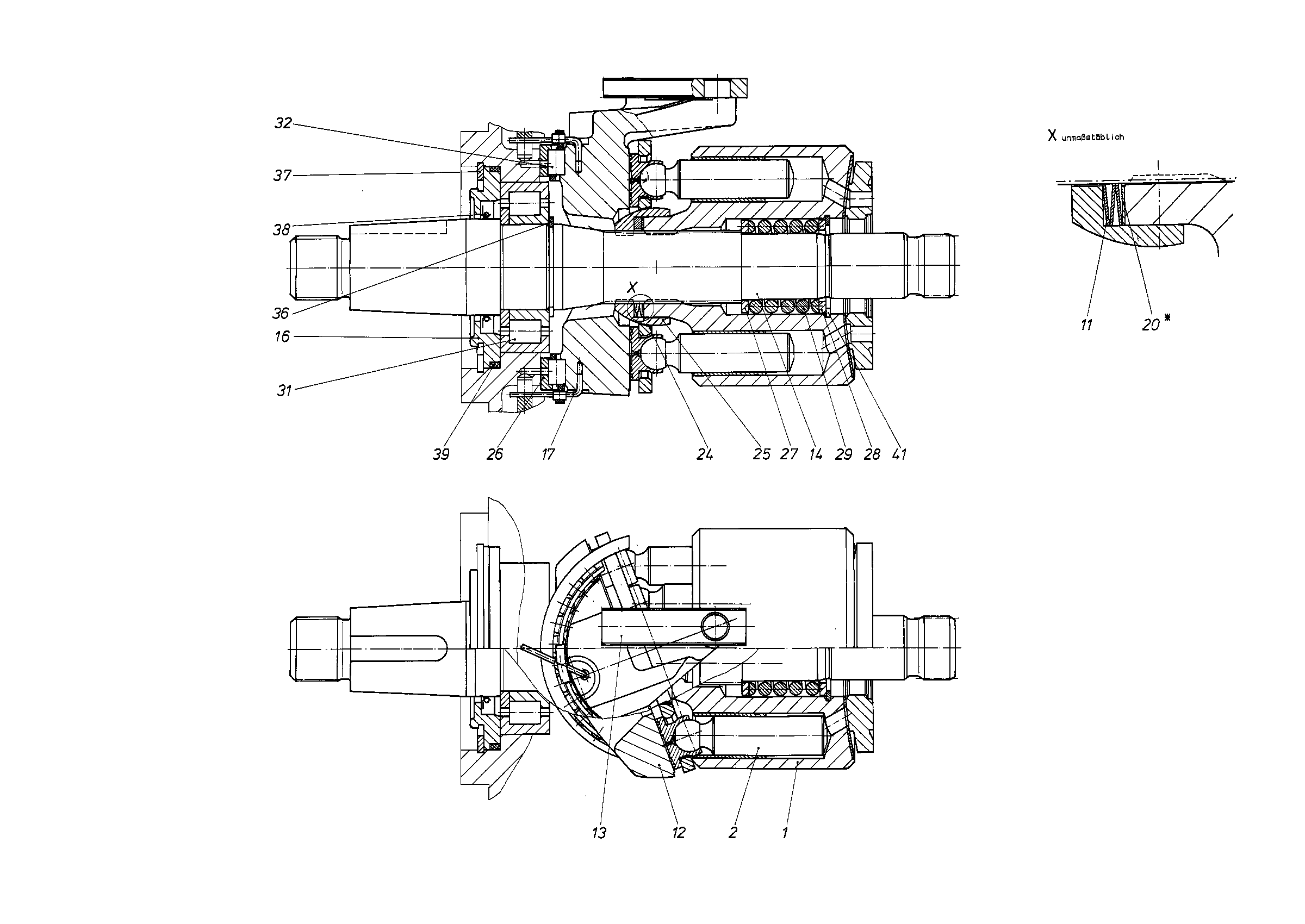

ROTARY GROUPR909434965
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R909443953 | CYLINDER Stückliste der Baugruppe →L | 1 | ||
| 2 | R909416736 | PISTON PAD | 9 | |
| 11 | R909432353 | CUP-SPRING STACK | 1 | |
| R909443361 | CRADLE | 1 | ||
| R909449810 | SLIDER | 1 | ||
| 14 | R909443658 | DRIVE SHAFT | 1 | |
| R909426176 | LOCKING RINGD | 1 | ||
| 17 | R909076233 | WIRE | 2 | |
| 20 | R909432987 | SHIM RING | 1 | |
| 20 | R909432988 | SHIM RING | 1 | |
| 20 | R909432989 | SHIM RING | 1 | |
| 20 | R909432990 | SHIM RING | 1 | |
| R909432143 | RETAINING PLATE | 1 | ||
| 25 | R909432061 | RETAINING BALL | 1 | |
| R902066586 | BEARING SHELL PAIR | 1 | ||
| 27 | R909435409 | WASHER | 1 | |
| 28 | R909435408 | WASHER | 1 | |
| 29 | R909435254 | COMPRESSION SPRING | 1 | |
| 31 | R909153104 | CYL. ROLLER BEARING | 1 | |
| 32 | R909830152 | CAGE PAIR | 1 | |
| R909083362 | RETAINING RING | 1 | ||
| R909154609 | RETAINING RING | 1 | ||
| R909830384 | SHAFT SEALING RINGD | 1 | ||
| R909083824 | O-RINGD | 1 | ||
| 41 | R909083403 | RETAINING RING | 1 |
