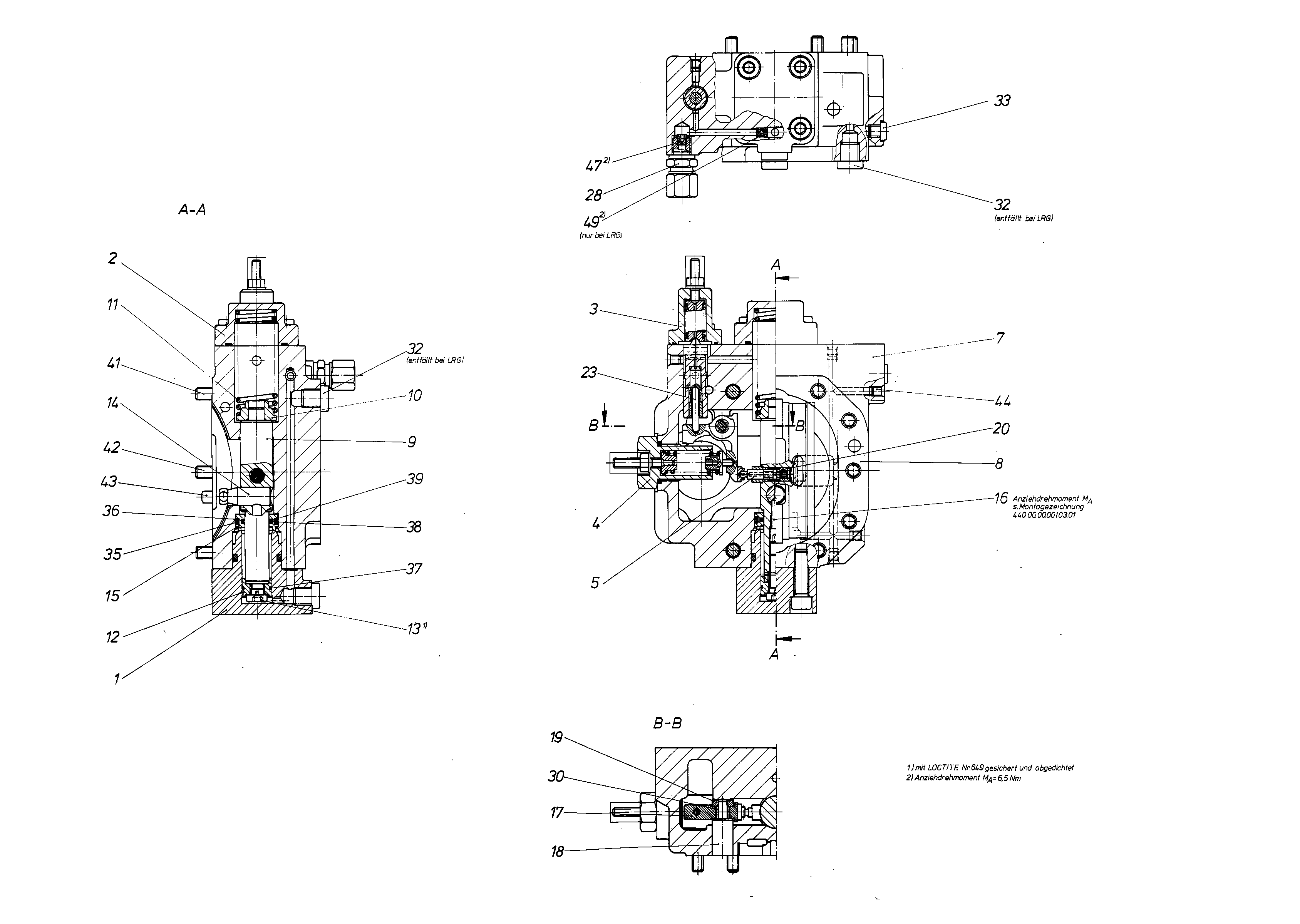

Baugruppe
CONTROLR909437015
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R902014052 | GUIDE COVER Stückliste der Baugruppe →L | 1 | ||
| R909427187 | COVER Stückliste der Baugruppe →L | 1 | ||
| R909437013 | CONTROL PART Stückliste der Baugruppe →L | 1 | ||
| R909437014 | ADJUSTING PART Stückliste der Baugruppe →L | 1 | ||
| 5 | R909419520 | PISTON PAD | 1 | |
| 7 | R909426410 | COVER PLATE, CLOCKWISE ROTATION | 1 | |
| 8 | R902024641 | SEALD | 1 | |
| 9 | R909430102 | POSITIONING PISTON | 1 | |
| R909430100 | SPRING DISK | 1 | ||
| 11 | R909426527 | COMPRESSION SPRING | 1 | |
| R909430099 | PISTON | 1 | ||
| R909430464 | SOCKET HEAD CAP SCREW | 1 | ||
| R909425514 | POSITIONING STUD | 1 | ||
| R909430101 | SEAL RING | 1 | ||
| 16 | R909417903 | SETSCREW | 1 | |
| R902054362 | LEVER | 1 | ||
| R909418299 | BEARING BOLT | 1 | ||
| R909418300 | BUSHING | 1 | ||
| 20 | R909425552 | ADJUSTING BUSH | 1 | |
| R909439610 | PIN | 1 | ||
| R909830951 | NEEDLE BUSH | 1 | ||
| 33 | R909154024 | SCREW PLUGD | 1 | |
| R909083761 | O-RINGD | 1 | ||
| 36 | R909157774 | BACKUP RINGD | 1 | |
| 37 | R909153873 | R-RINGD | 1 | |
| R909157773 | ROD SEALD | 1 | ||
| 39 | R909084939 | O-RINGD | 1 | |
| 41 | R909083049 | SOCKET HEAD CAP SCREW | 7 | |
| R909083036 | SOCKET HEAD CAP SCREW | 1 | ||
| R913009667 | STRAIGHT PIN | 2 | ||
| 44 | R909831318 | DOUBLE BREAK-OFF PLUG | 4 | |
| 49 | R909156495 | NOZZLE | 1 |
