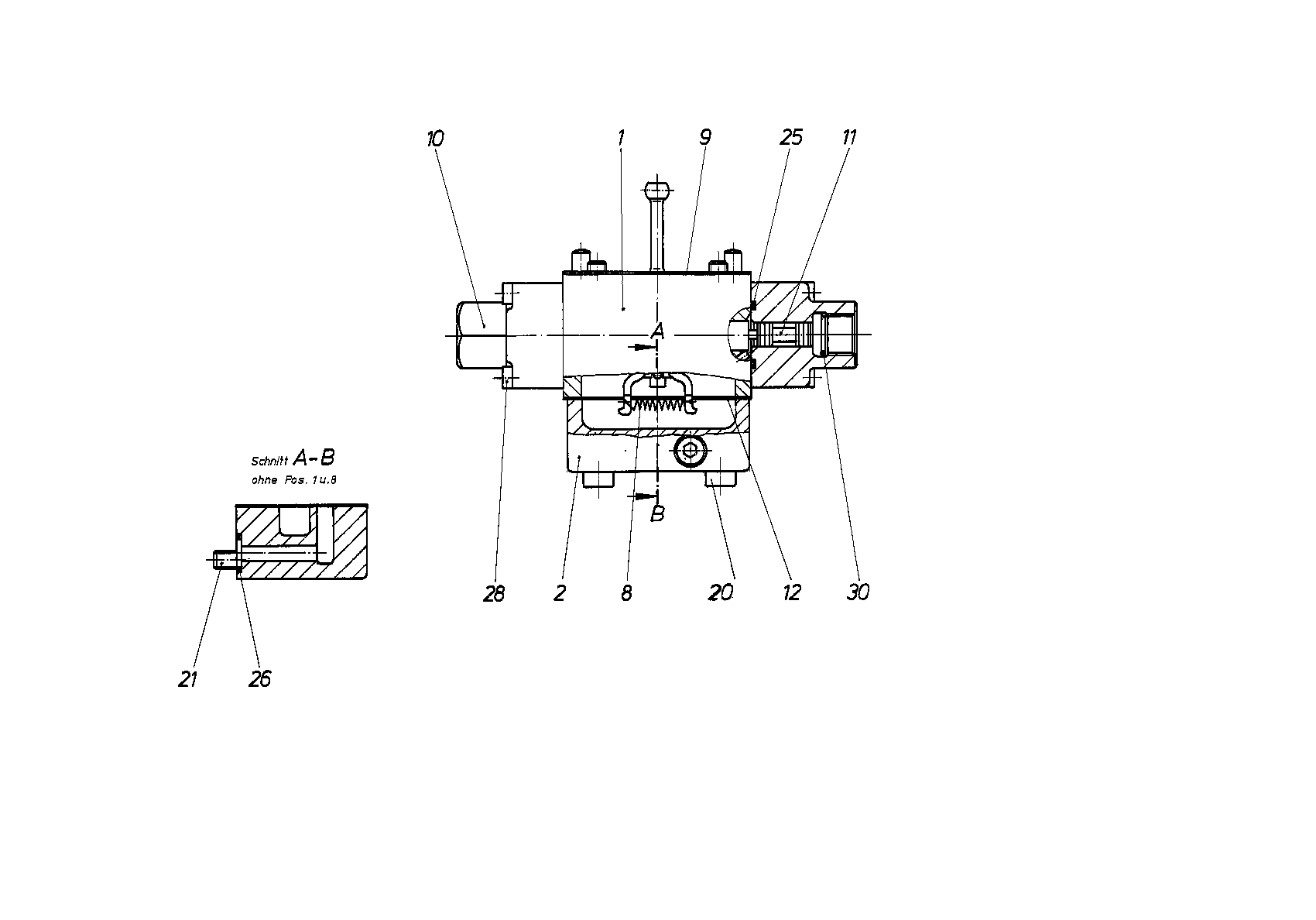

Baugruppe
CONTROL MODULER909437032
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| 1 | R909423532 | CONTROL MODULE Stückliste der Baugruppe →L | 1 | |
| R902046034 | CONNECTION COVER | 1 | ||
| R909921218 | EXTENSION SPRING | 1 | ||
| R902603829 | SEALD | 1 | ||
| 10 | R909651539 | HOUSING | 2 | |
| 11 | R909439379 | PISTON | 2 | |
| R902603830 | SEALD | 1 | ||
| 20 | R909085831 | SOCKET HEAD CAP SCREW | 4 | |
| 21 | R909083027 | SOCKET HEAD CAP SCREW | 1 | |
| 25 | R909083737 | O-RINGD | 2 | |
| 26 | R902600655 | O-RINGD | 1 | |
| 28 | R909083005 | SOCKET HEAD CAP SCREW | 8 | |
| R909156539 | SNAP RING | 2 |
