Baugruppe

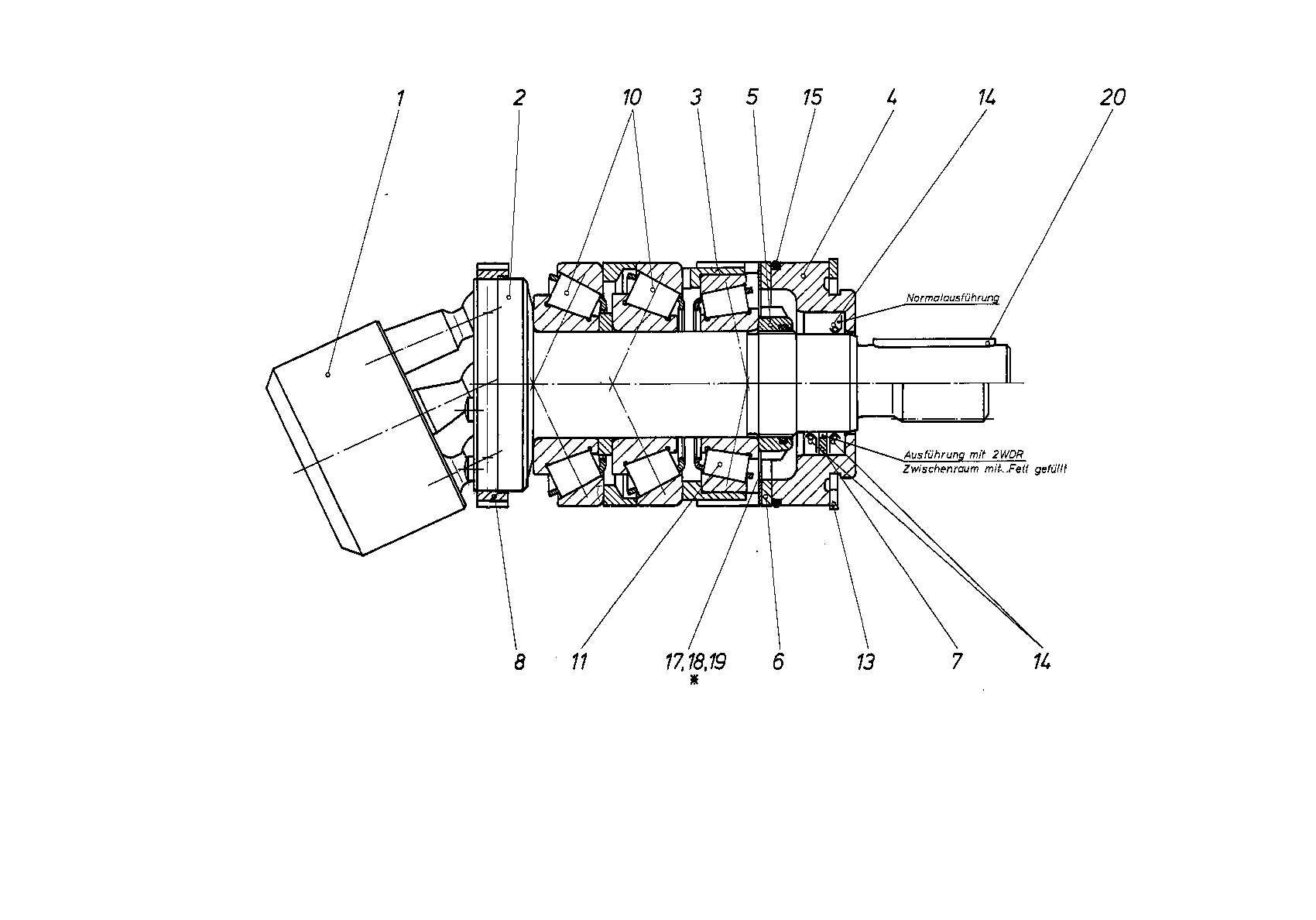

ROTARY GROUPR909437106
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R909434099 | ROTARY GROUP Stückliste der Baugruppe →L | 1 | ||
| R909436304 | DRIVE SHAFT | 1 | ||
| R909412088 | BEARING RING | 1 | ||
| R909412089 | LOCKING RINGD | 1 | ||
| R913037928 | SLOTTED ROUND NUT | 1 | ||
| R909087019 | SUPPORTING DISCD | 1 | ||
| 8 | R909436301 | ANNULAR GEAR | 1 | |
| R909156197 | TAPERED-ROLLER BEARING UNIT | 1 | ||
| 11 | R909151098 | TAPERED-ROLLER BEARING | 1 | |
| R909083415 | RETAINING RING | 1 | ||
| 14 | R909152835 | SHAFT SEALING RINGD | 1 | |
| R909083790 | O-RINGD | 1 | ||
| 17 | R909084586 | SHIM RING | 2 | |
| 18 | R909154802 | SHIM RING | 2 | |
| 19 | R909085952 | SHIM RING | 2 |
