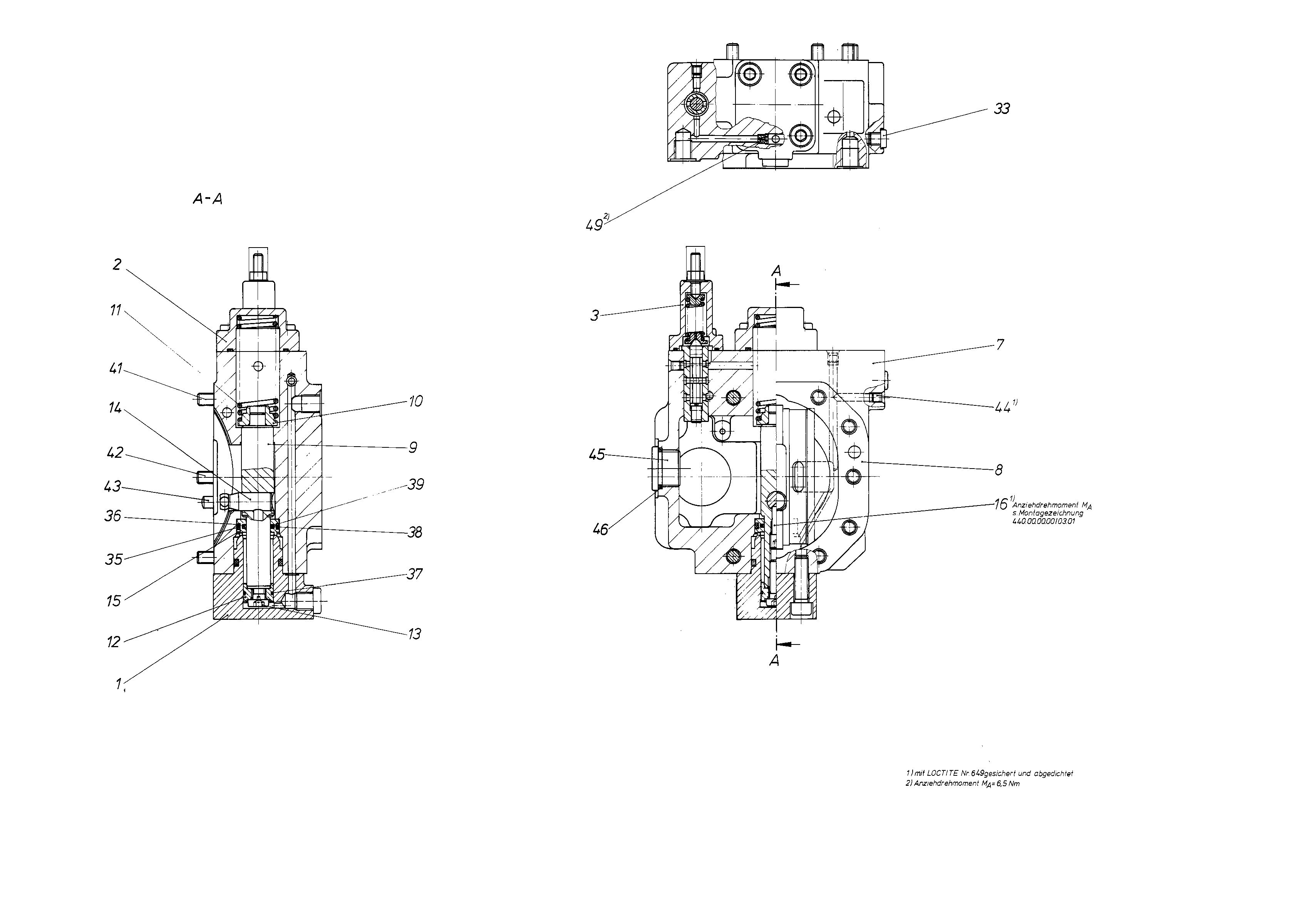

Baugruppe
CONTROLR909437497
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R902014053 | GUIDE COVER Stückliste der Baugruppe →L | 1 | ||
| R909437498 | COVER Stückliste der Baugruppe →L | 1 | ||
| 3 | R909437499 | CONTROL PART Stückliste der Baugruppe →L | 1 | |
| R909436706 | COVER PLATE, COUNTER CLOCKWISE | 1 | ||
| 8 | R902024641 | SEALD | 1 | |
| 9 | R909430103 | POSITIONING PISTON | 1 | |
| 10 | R909430100 | SPRING DISK | 1 | |
| 11 | R909426527 | COMPRESSION SPRING | 1 | |
| R909430099 | PISTON | 1 | ||
| R909083191 | SOCKET HEAD CAP SCREW | 1 | ||
| R909425515 | POSITIONING STUD | 1 | ||
| R909430101 | SEAL RING | 1 | ||
| R909409589 | SETSCREW | 1 | ||
| R909156863 | SCREW PLUGD | 1 | ||
| R909152694 | O-RINGD | 1 | ||
| R909157774 | BACKUP RINGD | 1 | ||
| R909153873 | R-RINGD | 1 | ||
| R909157773 | ROD SEALD | 1 | ||
| 39 | R909154317 | O-RINGD | 1 | |
| 41 | R909083049 | SOCKET HEAD CAP SCREW | 7 | |
| R909083036 | SOCKET HEAD CAP SCREW | 1 | ||
| R913009667 | STRAIGHT PIN | 2 | ||
| 44 | R909831318 | DOUBLE BREAK-OFF PLUG | 4 | |
| R909083226 | SCREW PLUG | 1 | ||
| R909154316 | O-RINGD | 1 | ||
| R909156495 | NOZZLE | 1 |
