Baugruppe

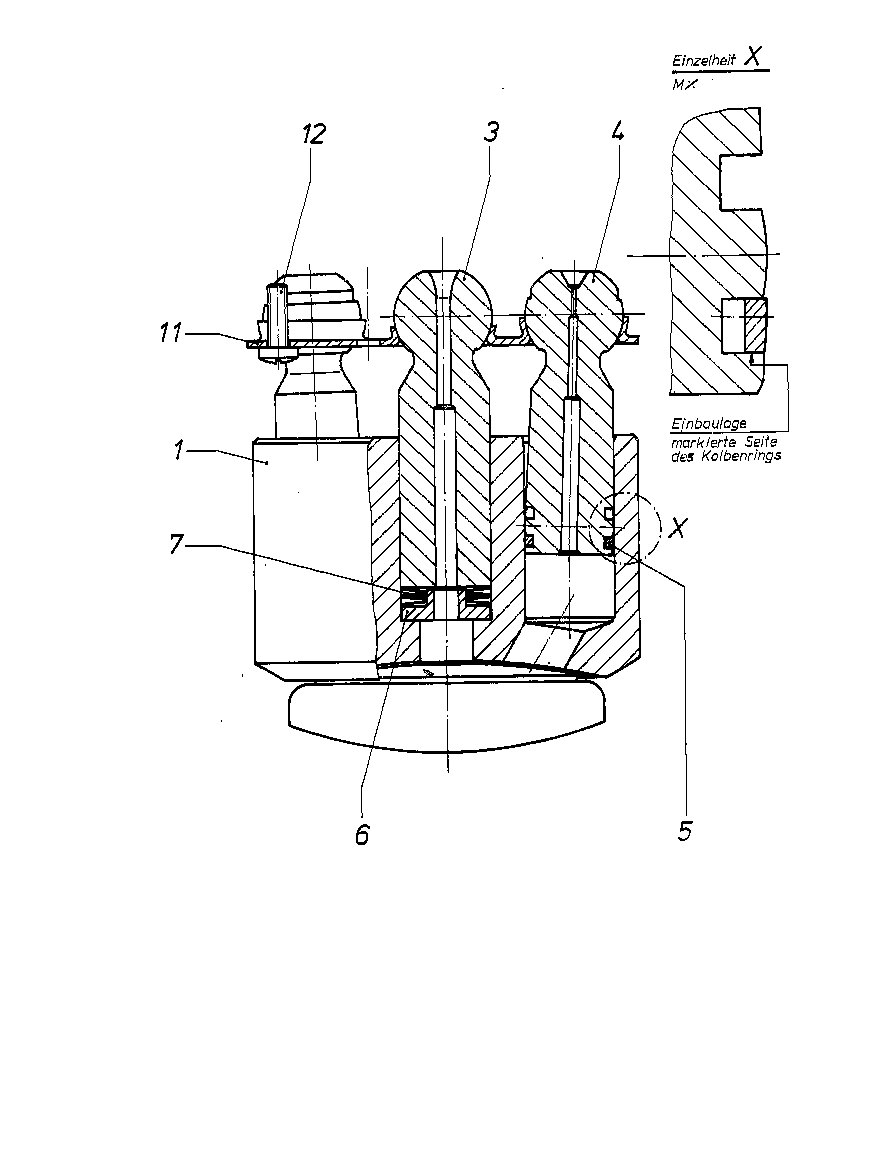

ROTARY GROUPR909437501
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R909421291 | CYLINDER | 1 | ||
| R909409909 | CENTER PIN | 1 | ||
| 4 | R902257246 | PISTON | 7 | |
| 6 | R902043501 | SPRING DISK | 1 | |
| 6 | R909412638 | SPRING DISK | 1 | |
| 6 | R909412639 | SPRING DISK | 1 | |
| 6 | R909412640 | SPRING DISK | 1 | |
| 6 | R909412641 | SPRING DISK | 1 | |
| 6 | R909412642 | SPRING DISK | 1 | |
| 6 | R909412643 | SPRING DISK | 1 | |
| 6 | R909432285 | SPRING DISK | 1 | |
| 6 | R909432286 | SPRING DISK | 1 | |
| 7 | R909409883 | DISC SPRING | 4 | |
| R902072550 | RETAINING PLATE | 1 | ||
| R902602776 | PAN-HEAD SCREW | 7 |
