Baugruppe

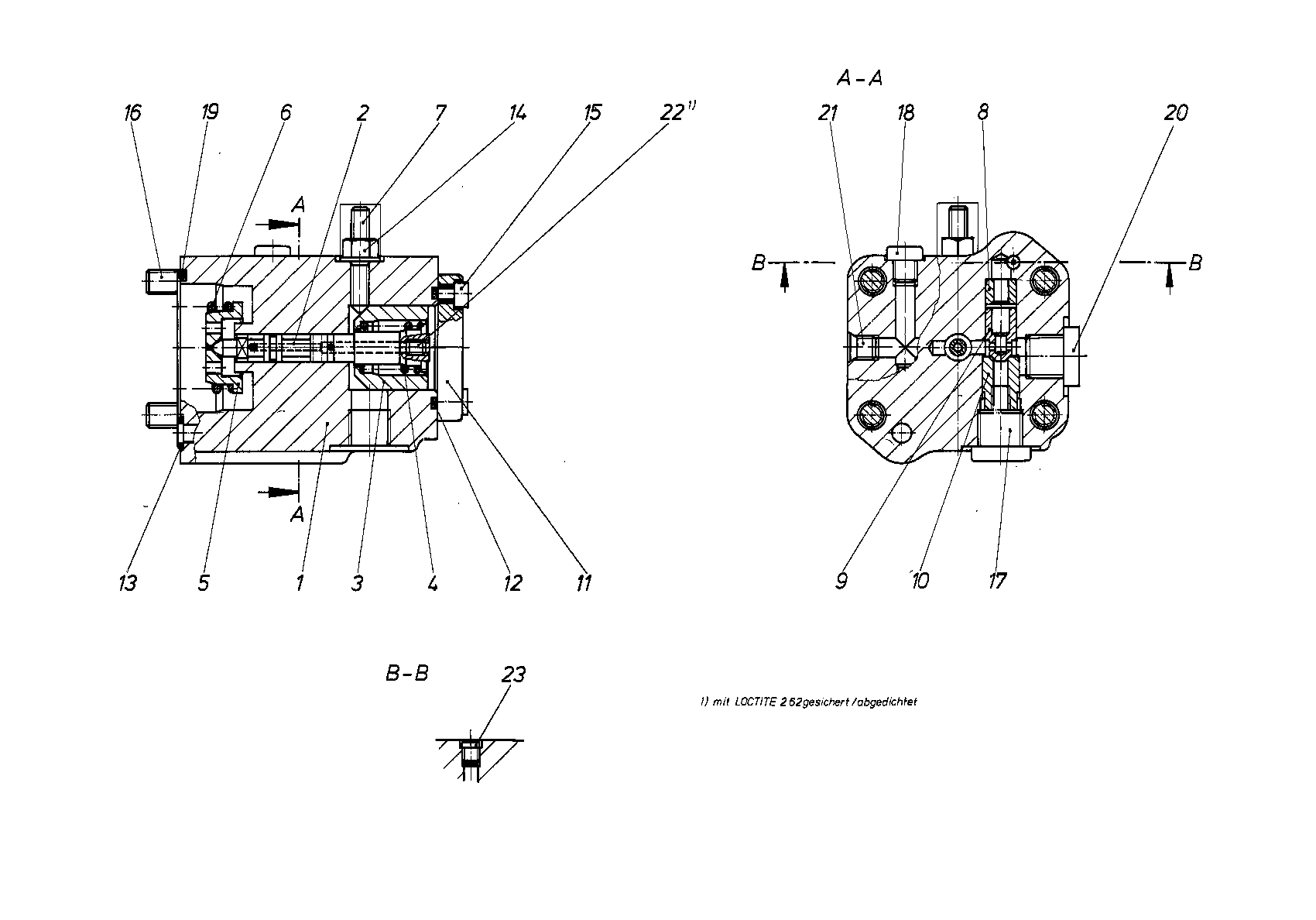

CONTROL UNITR909437630
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| 1 | R909436856 | HOUSING | 1 | |
| 2 | R909436855 | CONTROL PISTON | 1 | |
| R909426486 | SPRING BUSH | 1 | ||
| 4 | R909431055 | COMPRESSION SPRING | 1 | |
| R909430563 | SPRING DISK | 1 | ||
| R909426547 | COMPRESSION SPRING | 1 | ||
| 7 | R909425219 | SETSCREW | 1 | |
| 8 | R909425801 | BUSHING | 1 | |
| 9 | R909651010 | VALVE SPOOL | 1 | |
| R909425800 | BUSHING | 1 | ||
| 11 | R909426476 | COVER | 1 | |
| R909083769 | O-RINGD | 1 | ||
| R909086332 | O-RINGD | 2 | ||
| 14 | R909152425 | SEALING NUTD | 1 | |
| 15 | R909083009 | SOCKET HEAD CAP SCREW | 4 | |
| R909083049 | SOCKET HEAD CAP SCREW | 4 | ||
| R909151979 | SCREW PLUGD | 1 | ||
| R909154024 | SCREW PLUGD | 1 | ||
| R909153320 | O-RINGD | 1 | ||
| R909151979 | SCREW PLUGD | 1 | ||
| 21 | R909831319 | DOUBLE BREAK-OFF PLUG | 1 | |
| 22 | R909083489 | SETSCREW | 1 | |
| R909156493 | NOZZLE | 1 |
