Baugruppe

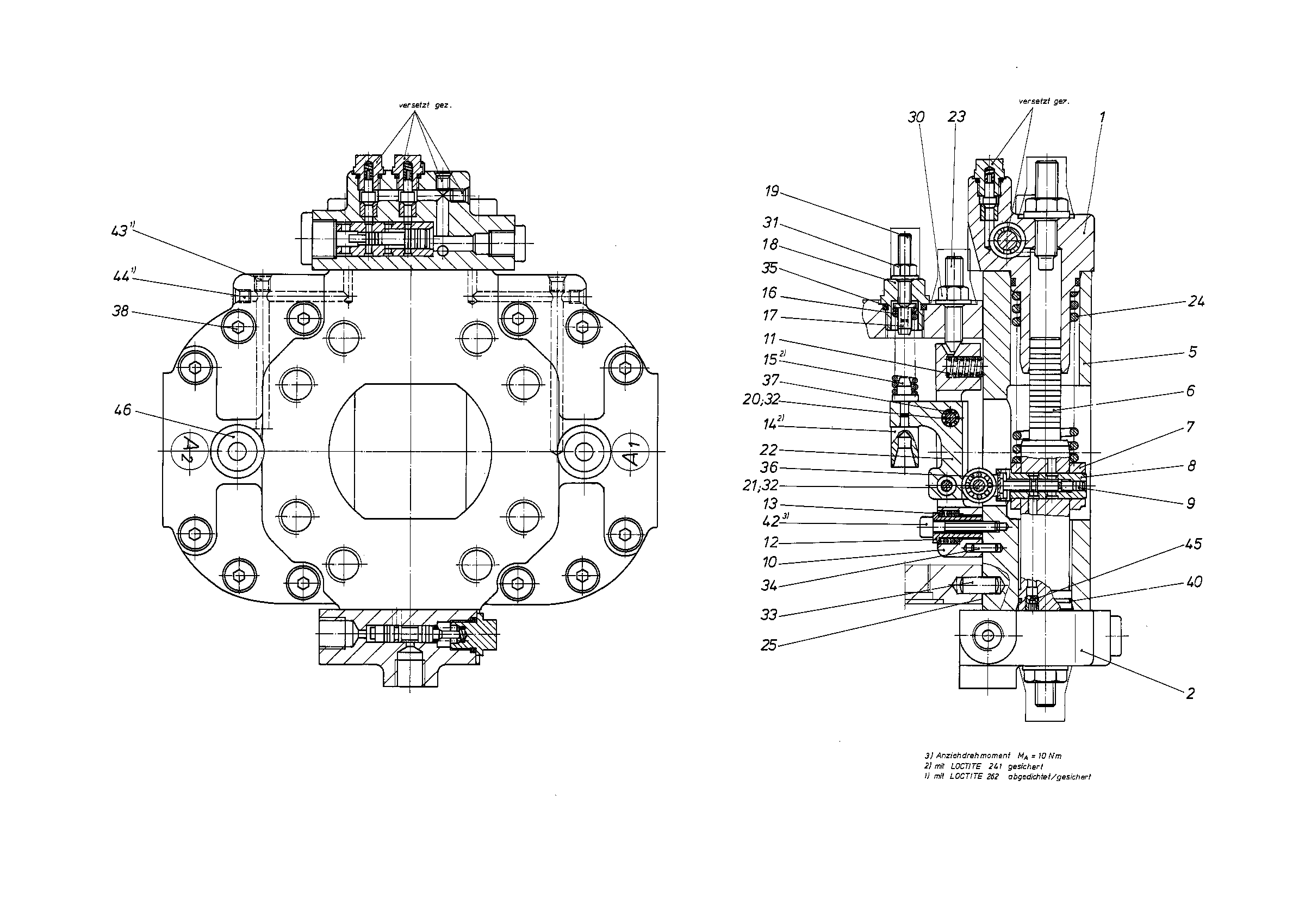

CONTROLR909437832
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R909437833 | PRESSURE REGULATOR Stückliste der Baugruppe →L | 1 | ||
| R909437834 | COVER Stückliste der Baugruppe →L | 1 | ||
| R909419291 | CONTROL HOUSING | 1 | ||
| R909412856 | POSITIONING PISTON | 1 | ||
| R909412857 | SWIVEL FORK | 1 | ||
| R909412858 | CONTROL SLEEVE | 1 | ||
| R909412859 | CONTROL PISTON | 1 | ||
| R909418673 | BEARING PEDESTAL | 1 | ||
| R909073211 | COMPRESSION SPRING | 1 | ||
| R909418581 | BACK-UP BUSHING | 1 | ||
| R909418577 | COMPRESSION SPRING | 1 | ||
| R909439079 | LOCATION PIECE | 1 | ||
| R909439078 | SPRING DISK | 1 | ||
| R909419643 | COMPRESSION SPRING | 1 | ||
| R909410247 | SPRING DISK | 1 | ||
| R909408614 | SCREW PLUG | 1 | ||
| R909439256 | SETSCREW | 1 | ||
| R909415924 | BOLT | 2 | ||
| R909411231 | BOLT | 1 | ||
| R909419627 | REGULATOR LEVER | 1 | ||
| R909412161 | SETSCREW | 1 | ||
| R909408499 | COMPRESSION SPRING | 1 | ||
| R909650389 | SEALD | 1 | ||
| R909152707 | SEALING NUTD | 1 | ||
| R909157764 | SEALING NUT | 1 | ||
| R909085810 | LOCKING WASHER | 6 | ||
| R913009667 | STRAIGHT PIN | 2 | ||
| 2917890095 | STRAIGHT PIN | 1 | ||
| R909086435 | O-RINGD | 1 | ||
| R909087327 | DEEP-GROOVE BALL BEARING | 1 | ||
| R909156271 | NEEDLE-ROLLER ASSEMBLY | 1 | ||
| R909083044 | SOCKET HEAD CAP SCREW | 12 | ||
| R909156962 | R-RINGD | 1 | ||
| R909083024 | SOCKET HEAD CAP SCREW | 1 | ||
| — | DOUBLE BREAK-OFF PLUG | 1 | ||
| — | DOUBLE BREAK-OFF PLUG | 1 | ||
| 45 | R909156494 | NOZZLE | 1 | |
| R909151979 | SCREW PLUGD | 2 |
