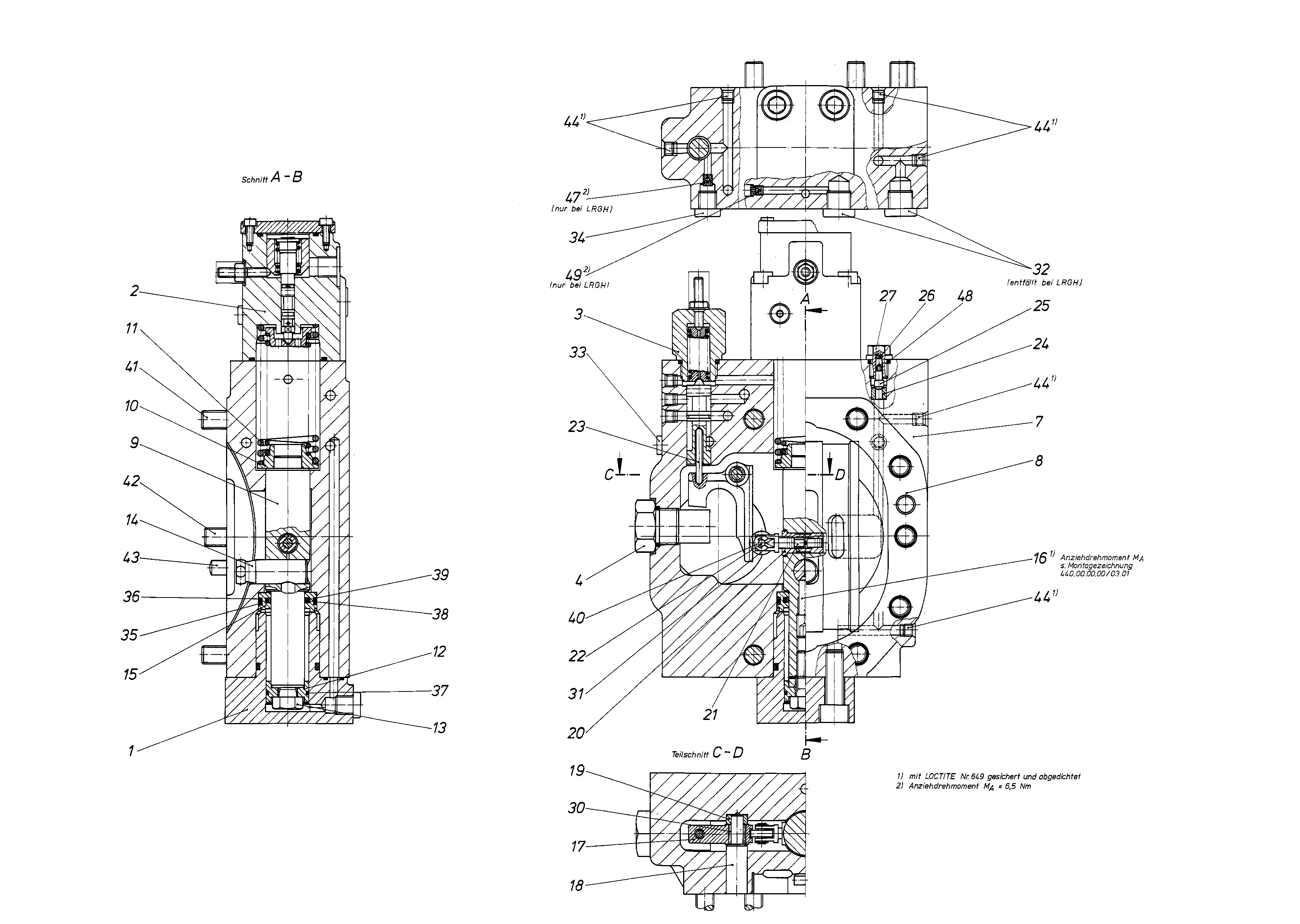

Baugruppe
CONTROLR909437960
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| 1 | R909427195 | GUIDE COVER Stückliste der Baugruppe →L | 1 | |
| 2 | R909428174 | CONTROL UNIT Stückliste der Baugruppe →L | 1 | |
| R909438073 | CONTROL PART Stückliste der Baugruppe →L | 1 | ||
| R909438074 | ADJUSTING PART Stückliste der Baugruppe →L | 1 | ||
| R909651206 | COVER PLATE, CLOCKWISE ROTATION | 1 | ||
| 8 | R902024644 | SEALD | 1 | |
| 9 | R909430143 | POSITIONING PISTON | 1 | |
| 10 | R909430145 | SPRING DISK | 1 | |
| 11 | R909426025 | COMPRESSION SPRING | 1 | |
| R909430148 | PISTON | 1 | ||
| R909430146 | SOCKET HEAD CAP SCREW | 1 | ||
| R909425485 | POSITIONING STUD | 1 | ||
| R909430147 | SEAL RING | 1 | ||
| 16 | R909413697 | SETSCREW | 1 | |
| R909427509 | LEVER | 1 | ||
| 18 | R909414913 | BEARING BOLT | 1 | |
| R909412689 | BUSHING | 1 | ||
| R909426934 | ADJUSTING BUSH | 1 | ||
| R909426935 | MEASURING PISTON | 1 | ||
| R909411231 | BOLT | 1 | ||
| R909430287 | PIN | 1 | ||
| 24 | R909425801 | BUSHING | 1 | |
| R909415579 | VALVE CONE | 1 | ||
| R909426948 | COMPRESSION SPRING | 1 | ||
| R902035187 | SCREW PLUG | 1 | ||
| R909156588 | NEEDLE-ROLLER ASSEMBLY | 1 | ||
| R909087327 | DEEP-GROOVE BALL BEARING | 1 | ||
| 32 | R909153816 | SCREW PLUGD | 1 | |
| R909154024 | SCREW PLUGD | 1 | ||
| R909151692 | SCREW PLUGD | 1 | ||
| R909086334 | O-RINGD | 1 | ||
| R909157785 | BACKUP RINGD | 1 | ||
| R909156647 | R-RINGD | 1 | ||
| 38 | R909157786 | ROD SEALD | 1 | |
| 39 | R909152146 | O-RINGD | 1 | |
| 40 | R909085810 | LOCKING WASHER | 2 | |
| 41 | R909083142 | SOCKET HEAD CAP SCREW | 6 | |
| 42 | R909083129 | SOCKET HEAD CAP SCREW | 1 | |
| R913009666 | STRAIGHT PIN | 2 | ||
| 44 | R909831319 | DOUBLE BREAK-OFF PLUG | 8 | |
| R909083749 | O-RINGD | 1 |
