Baugruppe

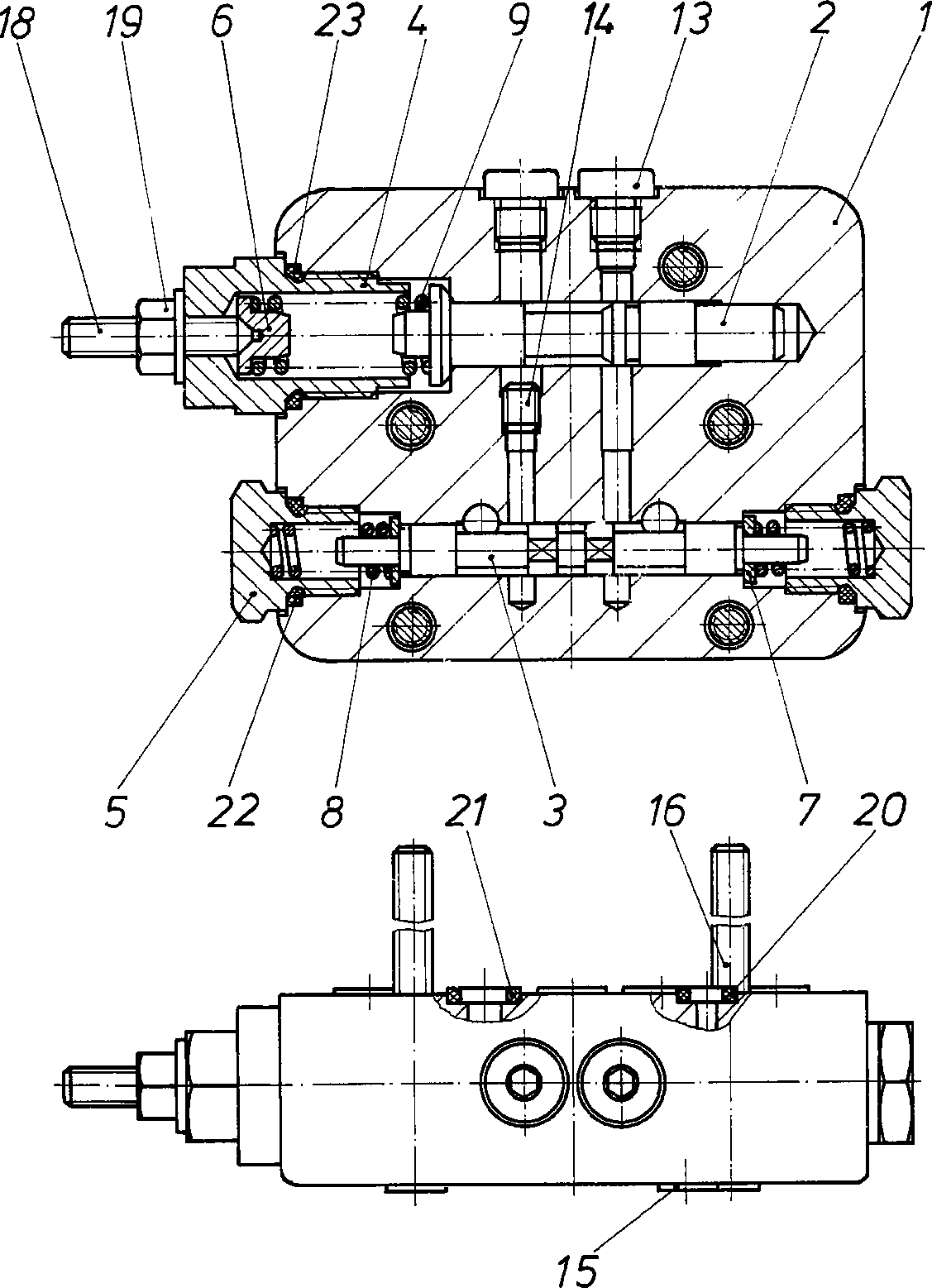

BRAKE VALVER909437977
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| 1 | R909436444 | HOUSING | 1 | |
| 2 | R909436166 | VALVE SPOOL | 1 | |
| 3 | R909439183 | CONTROL PISTON | 1 | |
| 4 | R909436283 | SCREW PLUG | 1 | |
| 5 | R909435460 | SCREW PLUG | 2 | |
| 6 | R909417036 | SPRING DISK | 1 | |
| 7 | R909426001 | WASHER | 2 | |
| 8 | R909401921 | COMPRESSION SPRING | 2 | |
| 9 | R909436278 | COMPRESSION SPRING | 1 | |
| R909154024 | SCREW PLUG | 2 | ||
| 14 | R909083491 | SETSCREW | 1 | |
| R909083024 | SOCKET HEAD CAP SCREW | 1 | ||
| R909085701 | SOCKET HEAD CAP SCREW | 4 | ||
| R909154140 | SETSCREW | 1 | ||
| R909152425 | SEALING NUT | 1 | ||
| 20 | R909086380 | O-RINGD | 1 | |
| R909086498 | O-RINGD | 6 | ||
| 22 | R909086729 | O-RINGD | 2 | |
| 23 | R909083757 | O-RINGD | 1 |
