Baugruppe

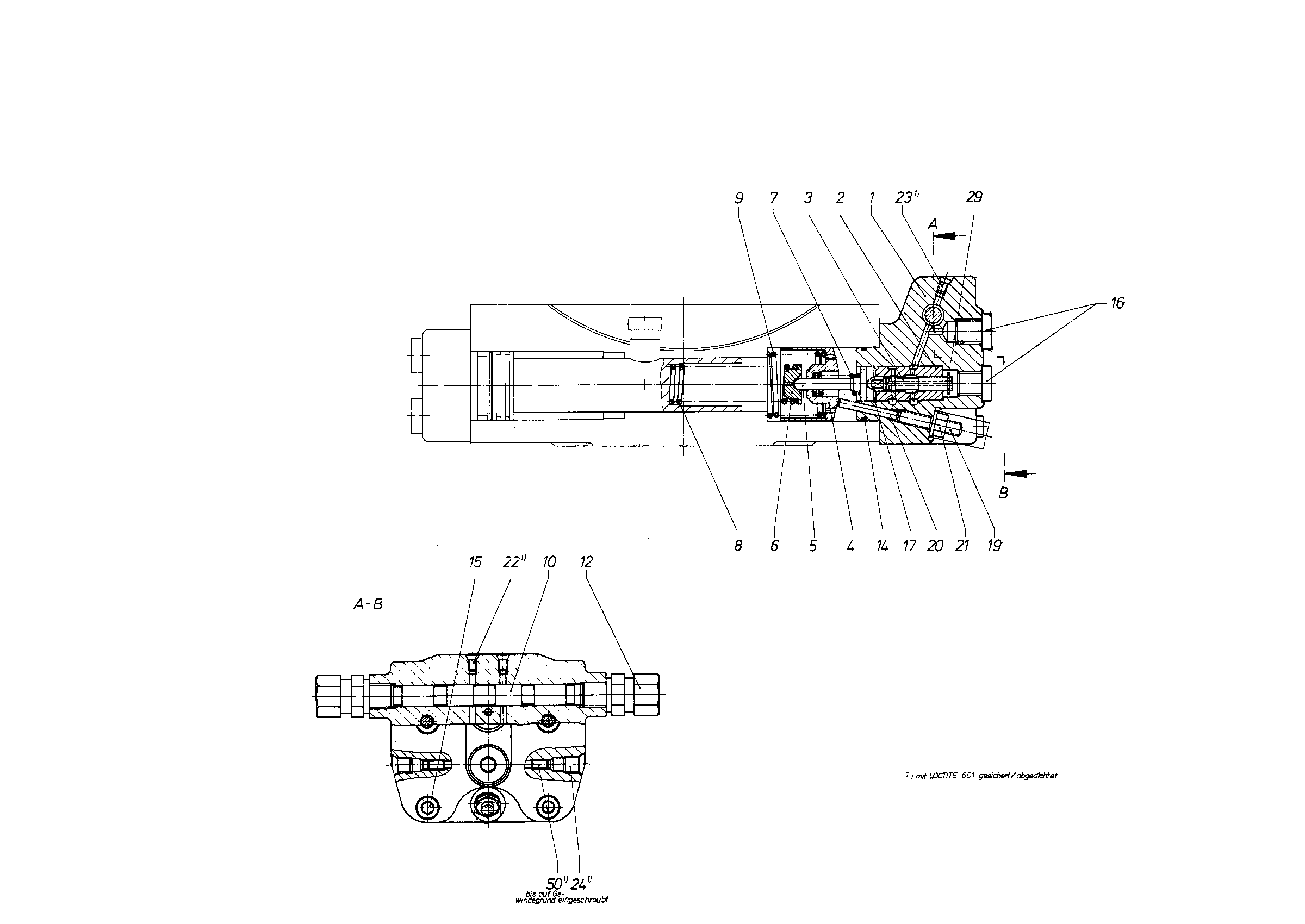

CONTROL PARTR909438019
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R909444337 | CONTROL HOUSING | 1 | ||
| R909417512 | CONTROL SLEEVE | 1 | ||
| R909430747 | CONTROL PISTON | 1 | ||
| R909420171 | ADJUSTING BUSHING | 1 | ||
| 5 | R909418761 | SPRING BOLT | 1 | |
| R909413198 | SPRING DISK | 1 | ||
| R909430757 | COMPRESSION SPRING | 1 | ||
| 8 | R909415938 | COMPRESSION SPRING | 1 | |
| 9 | R909445262 | COMPRESSION SPRING | 1 | |
| R909435792 | SLIDE | 1 | ||
| R909415641 | THREADED REDUCING STUD | 2 | ||
| 14 | R909083769 | O-RINGD | 1 | |
| R909083044 | SOCKET HEAD CAP SCREW | 4 | ||
| R909151979 | SCREW PLUGD | 2 | ||
| 17 | R909083381 | RETAINING RING | 1 | |
| R909152427 | SETSCREW | 1 | ||
| 20 | R909087166 | STRAIGHT PIN | 1 | |
| 21 | R909152425 | SEALING NUTD | 1 | |
| 22 | R909831317 | DOUBLE BREAK-OFF PLUG | 6 | |
| 23 | R900078091 | DOUBLE BREAK-OFF PLUG | 2 | |
| 24 | R909831318 | DOUBLE BREAK-OFF PLUG | 1 | |
| 25 | R909831319 | DOUBLE BREAK-OFF PLUG | 1 | |
| 29 | R909085812 | LOCKING WASHER | 1 | |
| 50 | R909150818 | SETSCREW | 2 |
