Baugruppe

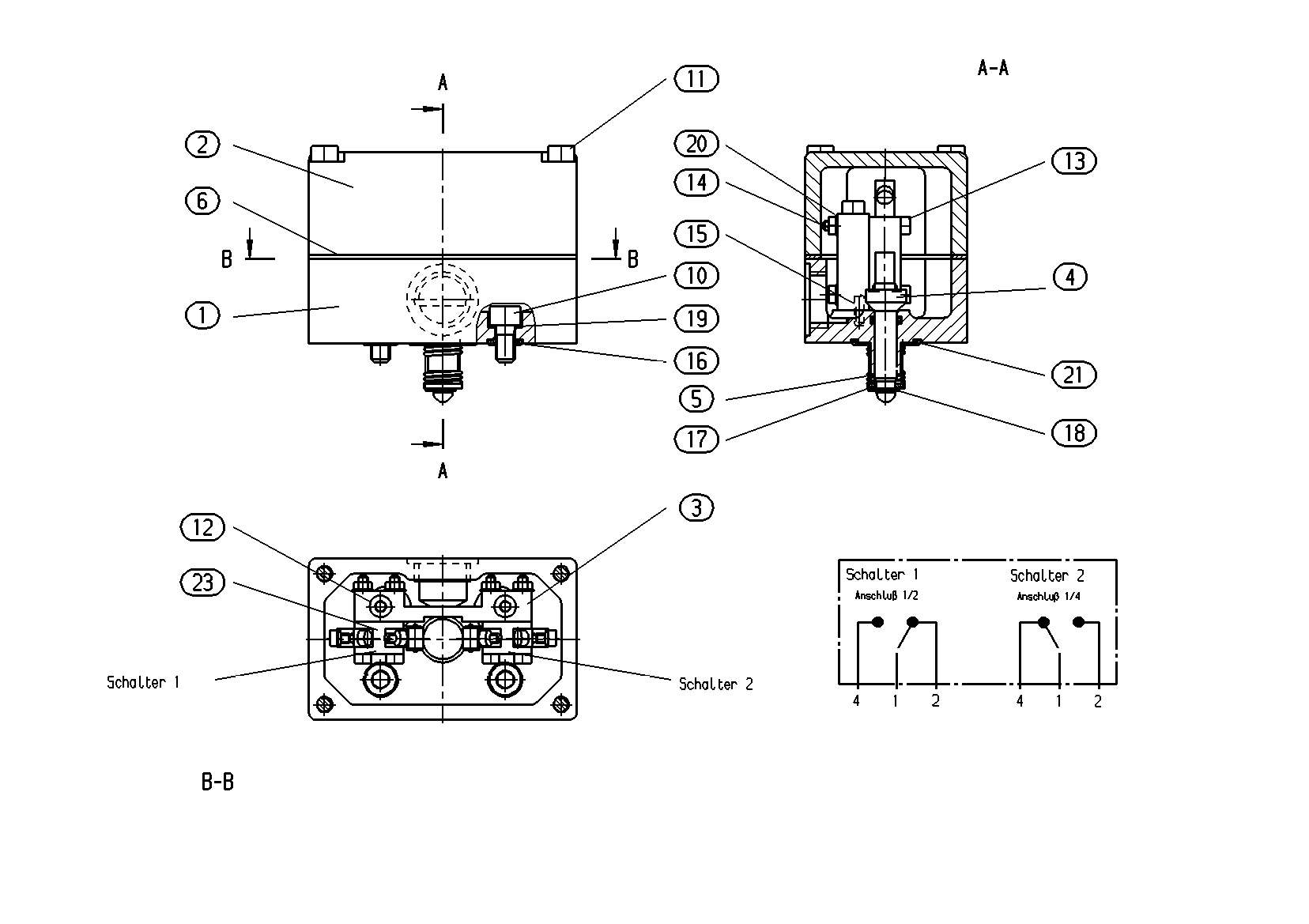

SWITCH ASSEMBLYR909438207
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| 1 | R909439291 | HOUSING | 1 | |
| R909439292 | COVER | 1 | ||
| R909439513 | BEARING | 1 | ||
| R909449109 | BOLT | 1 | ||
| R909439619 | COMPRESSION SPRING | 1 | ||
| R909439576 | SEALD | 1 | ||
| R909083018 | SOCKET HEAD CAP SCREW | 2 | ||
| 11 | R909083015 | SOCKET HEAD CAP SCREW | 4 | |
| R909083007 | SOCKET HEAD CAP SCREW | 2 | ||
| R909086068 | SOCKET HEAD CAP SCREW | 4 | ||
| 14 | R909083607 | HEXAGON NUT | 4 | |
| R913016373 | SLOTTED SPRING PIN | 2 | ||
| R909086498 | O-RINGD | 3 | ||
| 17 | R909087618 | WASHER | 1 | |
| R909083342 | RETAINING RING | 1 | ||
| R909084302 | SEAL RINGD | 2 | ||
| R902190925 | WASHER | 4 | ||
| 21 | R909083737 | O-RINGD | 1 | |
| R909831170 | MICRO-SWITCH | 2 |
