Baugruppe

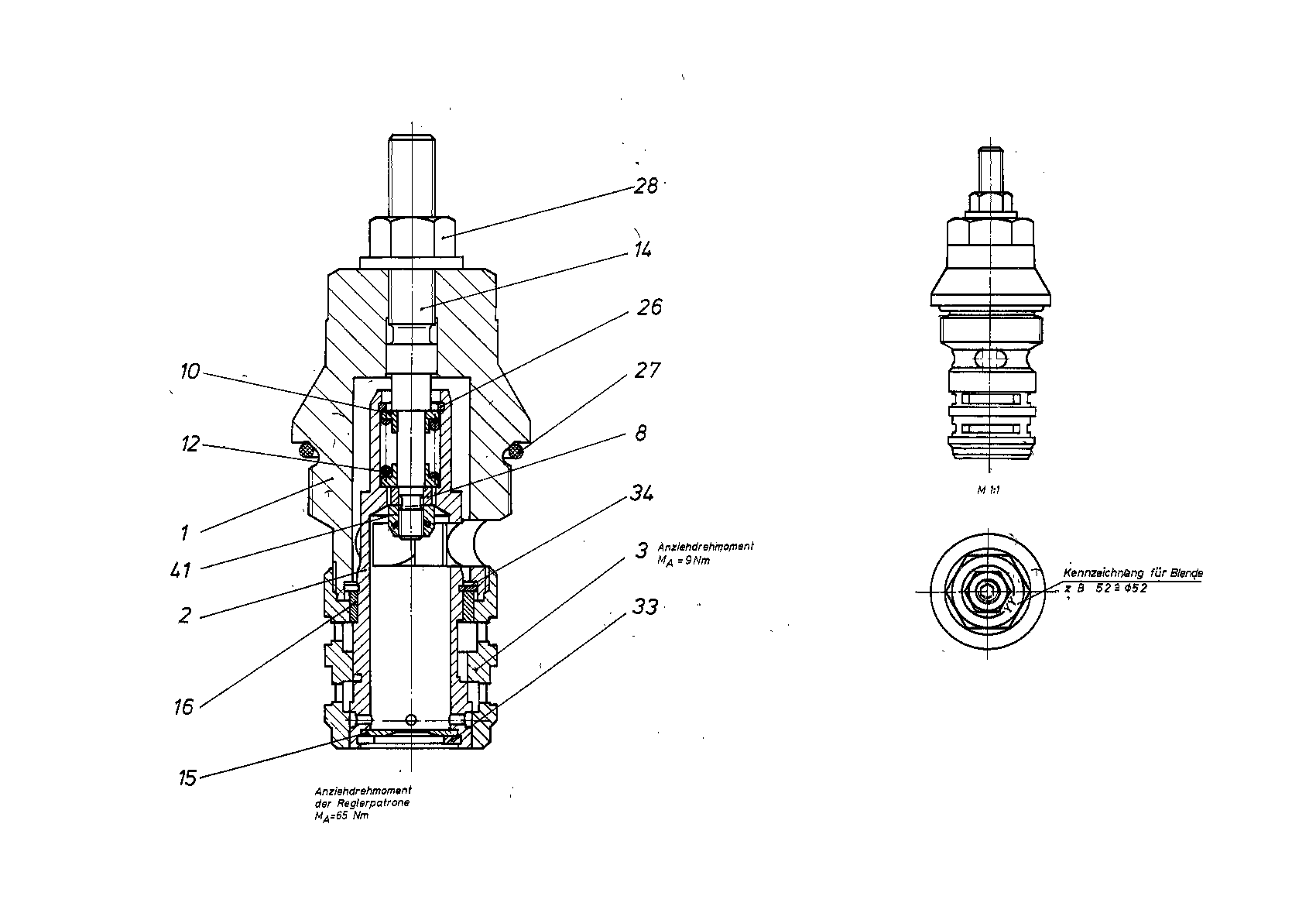

CONTROL CARTRIDGER909438255
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| 1 | R909414721 | CONTROL SCREW | 1 | |
| 2 | R902037075 | DIFFERENTIAL PISTON | 1 | |
| 3 | R909922149 | CONTROLLER PIPE | 1 | |
| 8 | R909421327 | WASHER | 1 | |
| R909414047 | SPRING DISK | 2 | ||
| R909412585 | COMPRESSION SPRING | 1 | ||
| R902037910 | SETSCREW | 1 | ||
| 15 | R909412980 | ORIFICE | 1 | |
| R909650154 | RING | 1 | ||
| R909156476 | SNAP RING | 1 | ||
| R909086731 | O-RINGD | 1 | ||
| R909152707 | SEALING NUTD | 1 | ||
| R909156498 | RETAINING RING | 1 | ||
| R909153847 | RETAINING RING | 1 | ||
| 41 | R909157287 | HEXAGON NUT | 1 |
