Baugruppe

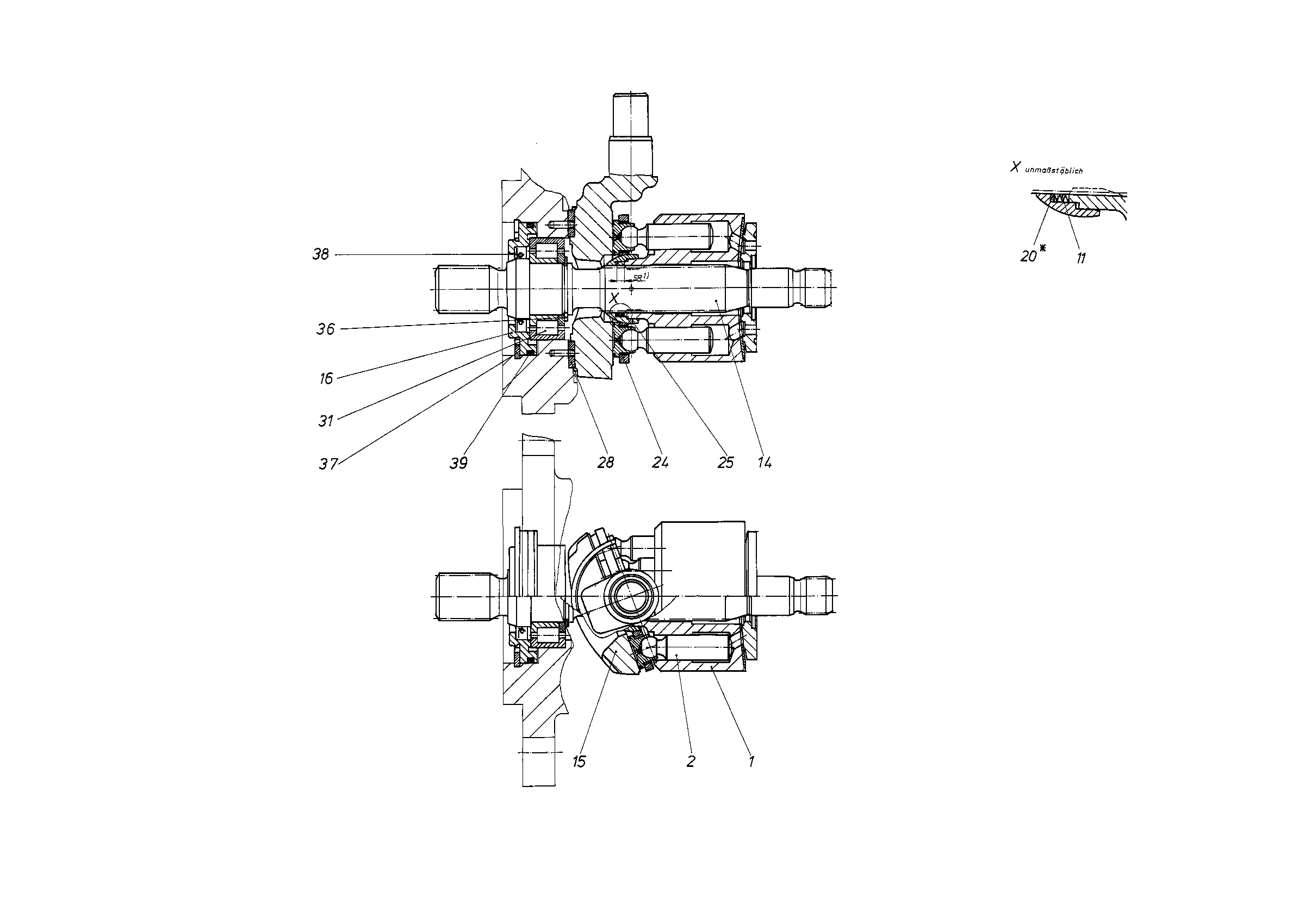

ROTARY GROUPR909438456
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R902017171 | CYLINDER Stückliste der Baugruppe →L | 1 | ||
| R909436558 | PISTON PAD | 9 | ||
| R909444437 | CUP-SPRING STACK | 1 | ||
| R902041735 | DRIVE SHAFT | 1 | ||
| R909431693 | CRADLE | 1 | ||
| R909418131 | LOCKING RINGD | 1 | ||
| R909418132 | SHIM RING | 1 | ||
| R909418133 | SHIM RING | 1 | ||
| R909418134 | SHIM RING | 1 | ||
| R909418135 | SHIM RING | 1 | ||
| 21 | R909418135 | SHIM RING | 1 | |
| R909443670 | RETAINING PLATE | 1 | ||
| R902017172 | RETAINING BALL | 1 | ||
| R909422645 | BEARING SEGMENT PAIR | 1 | ||
| R909156986 | CYL. ROLLER BEARING | 1 | ||
| R909085802 | RETAINING RING | 1 | ||
| R909083408 | RETAINING RING | 1 | ||
| R909830376 | SHAFT SEALING RINGD | 1 | ||
| R909151810 | O-RINGD | 1 |
