Baugruppe

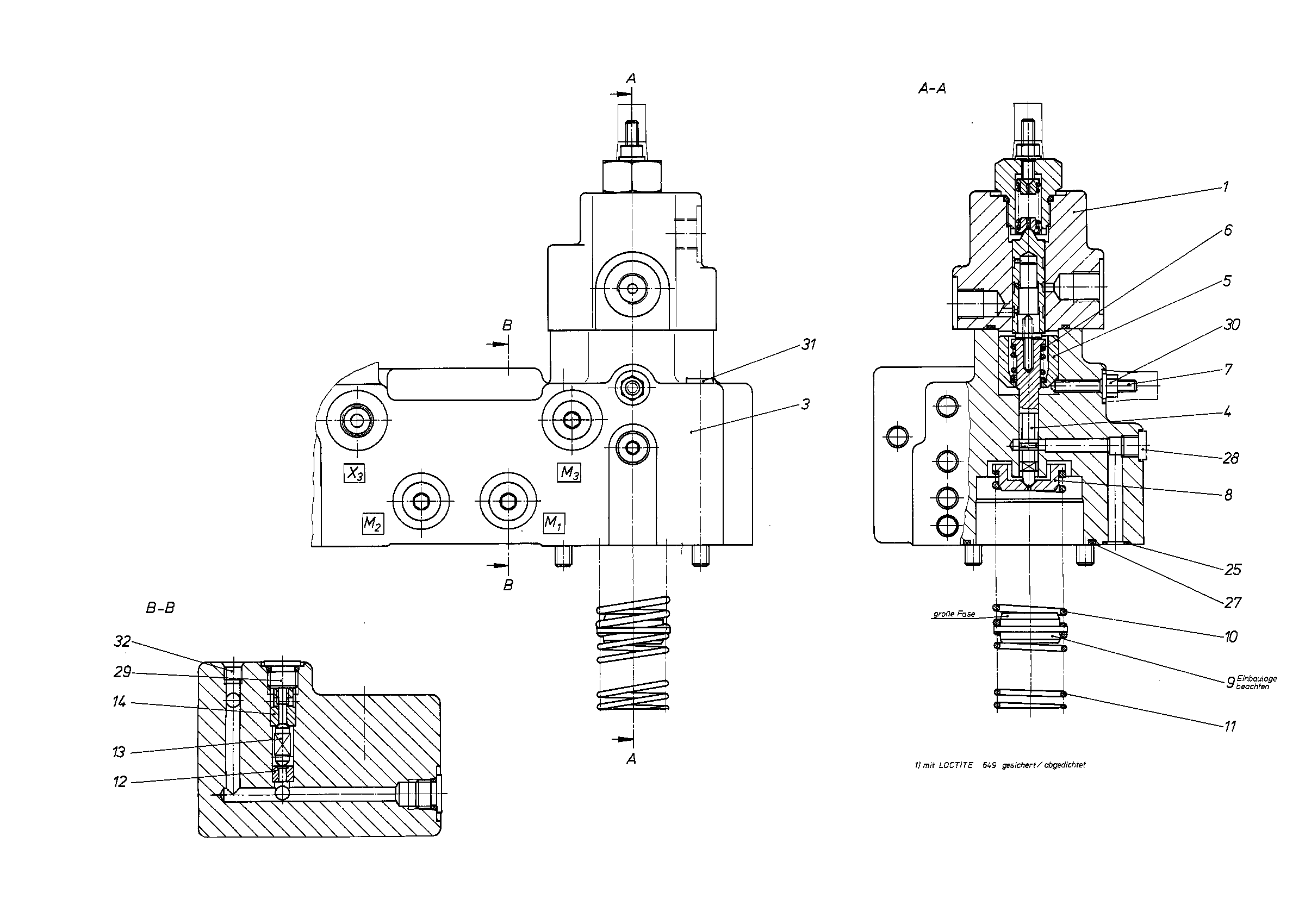

CONTROL UNITR909438629
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| 1 | R909438617 | CONTROL UNIT Stückliste der Baugruppe →L | 2 | |
| R909432515 | CONTROL HOUSING | 1 | ||
| R909436035 | CONTROL PISTON | 2 | ||
| 5 | R909426486 | SPRING BUSH | 2 | |
| 6 | R909432566 | COMPRESSION SPRING | 2 | |
| 7 | R909420992 | SETSCREW | 2 | |
| 8 | R909432513 | SPRING DISK | 2 | |
| 9 | R909432511 | SPRING DISK | 2 | |
| 10 | R909440091 | COMPRESSION SPRING | 2 | |
| R909440092 | COMPRESSION SPRING | 2 | ||
| 12 | R909425801 | BUSHING | 3 | |
| 13 | R909436407 | VALVE CONE | 3 | |
| 14 | R909431990 | VALVE BUSHING | 3 | |
| R909085709 | O-RINGD | 7 | ||
| R909086377 | O-RINGD | 2 | ||
| R909153364 | SCREW PLUGD | 2 | ||
| R909153371 | SCREW PLUGD | 5 | ||
| 30 | R909152425 | SEALING NUTD | 2 | |
| 31 | R909083051 | SOCKET HEAD CAP SCREW | 6 | |
| R909831319 | DOUBLE BREAK-OFF PLUG | 10 |
