Baugruppe

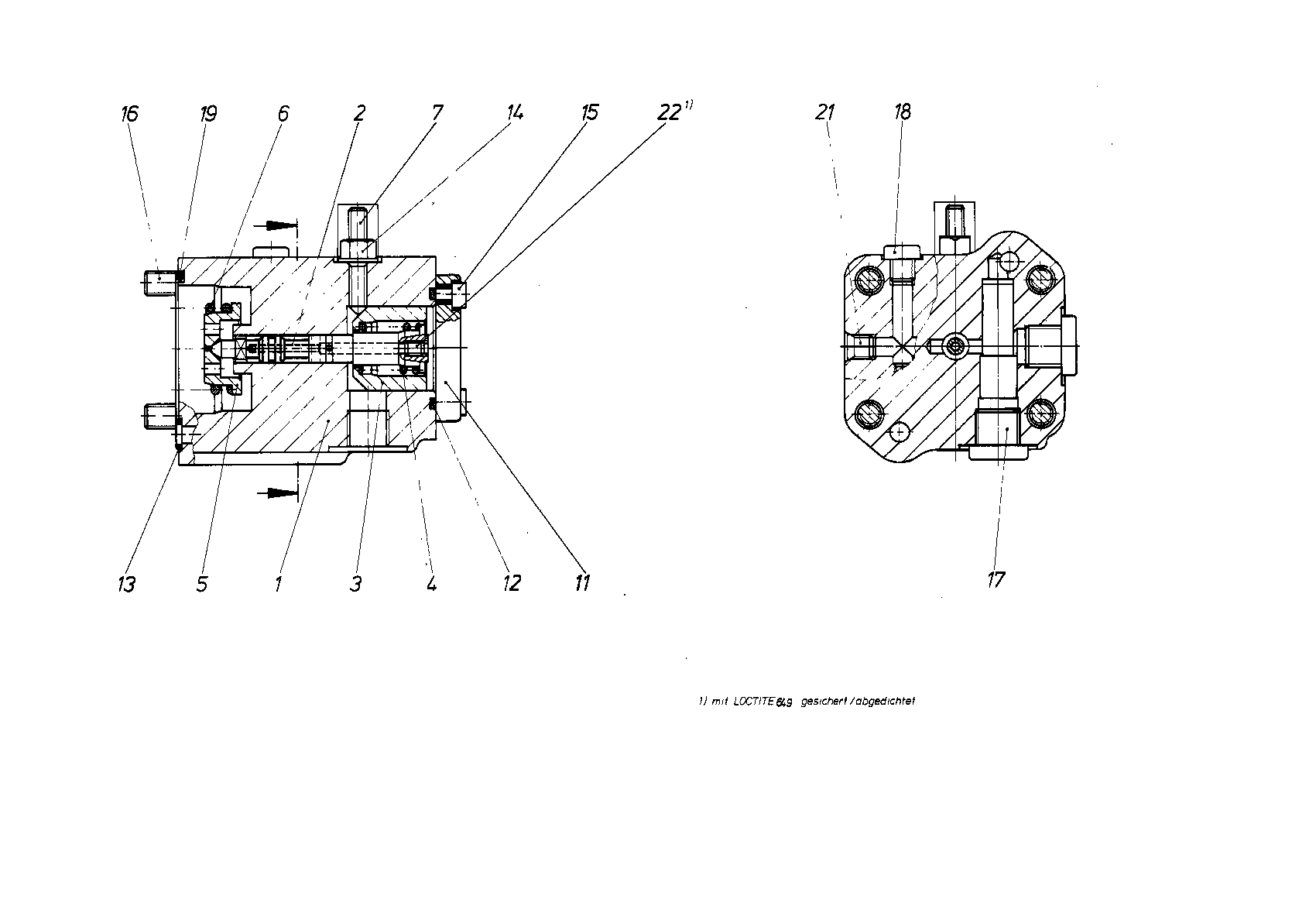

CONTROL UNITR909438663
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R909432115 | HOUSING | 1 | ||
| R909436332 | CONTROL PISTON | 1 | ||
| R909426486 | SPRING BUSH | 1 | ||
| 4 | R909431055 | COMPRESSION SPRING | 1 | |
| R909425804 | SPRING DISK | 1 | ||
| 6 | R909425805 | COMPRESSION SPRING | 1 | |
| R909425219 | SETSCREW | 1 | ||
| R909426476 | COVER | 1 | ||
| R909083769 | O-RINGD | 1 | ||
| R909086332 | O-RINGD | 2 | ||
| R909152425 | SEALING NUTD | 1 | ||
| 15 | R909083009 | SOCKET HEAD CAP SCREW | 4 | |
| R909083046 | SOCKET HEAD CAP SCREW | 4 | ||
| R909151979 | SCREW PLUGD | 2 | ||
| R902600656 | O-RINGD | 1 | ||
| 20 | R909831318 | DOUBLE BREAK-OFF PLUG | 1 | |
| 21 | R909831319 | DOUBLE BREAK-OFF PLUG | 1 | |
| 22 | R909083489 | SETSCREW | 1 |
