Baugruppe

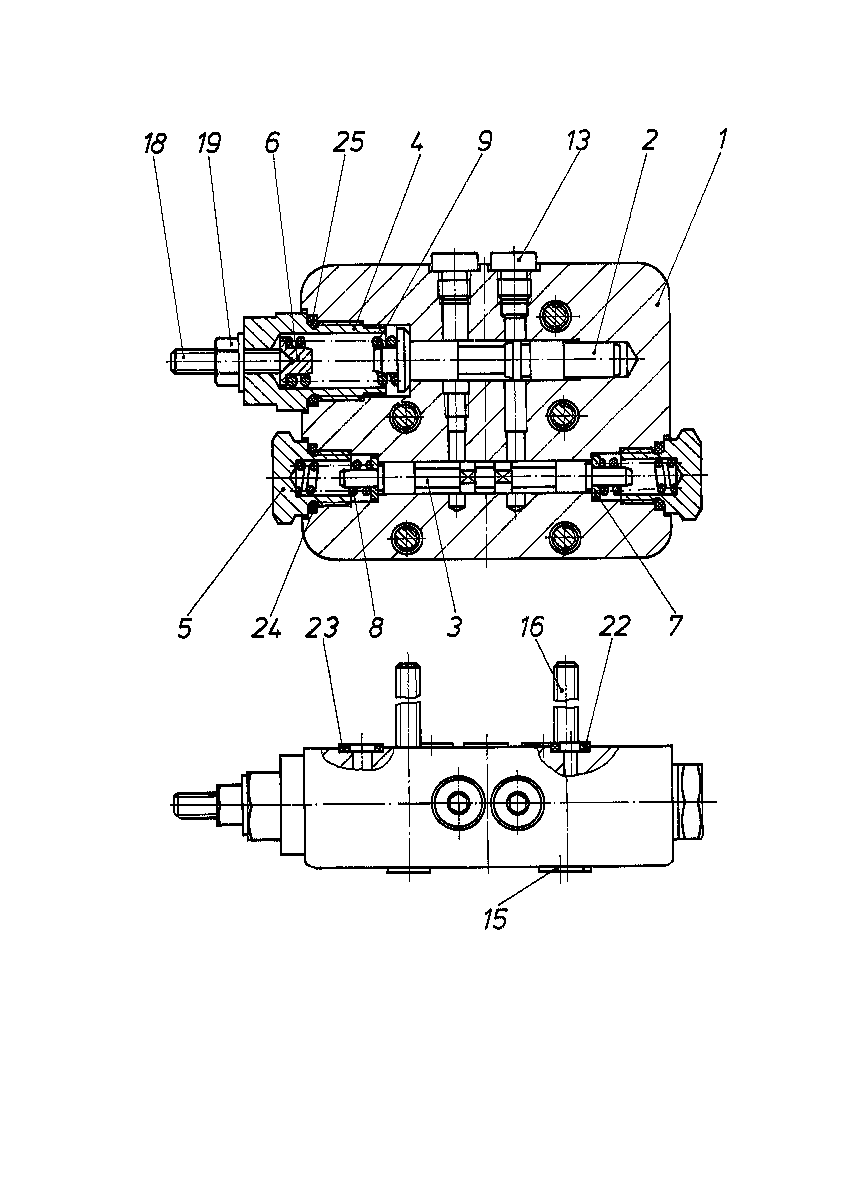

BRAKE VALVER909438666
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R909436445 | HOUSING | 1 | ||
| R909436166 | VALVE SPOOL | 1 | ||
| 3 | R909440175 | CONTROL PISTON | 1 | |
| — | SCREW PLUG | 1 | ||
| 5 | R909435460 | SCREW PLUG | 2 | |
| 6 | R909417036 | SPRING DISK | 1 | |
| 7 | R909426001 | WASHER | 2 | |
| 8 | R909401921 | COMPRESSION SPRING | 2 | |
| R909436278 | COMPRESSION SPRING | 1 | ||
| 13 | R909154024 | SCREW PLUG | 2 | |
| R909083025 | SOCKET HEAD CAP SCREW | 1 | ||
| R909085701 | SOCKET HEAD CAP SCREW | 4 | ||
| R909154140 | SETSCREW | 1 | ||
| 19 | R909152425 | SEALING NUT | 1 | |
| 22 | R909086380 | O-RINGD | 1 | |
| 23 | R909086498 | O-RINGD | 6 | |
| 24 | R909086729 | O-RINGD | 2 | |
| R909083757 | O-RINGD | 1 |
