Baugruppe

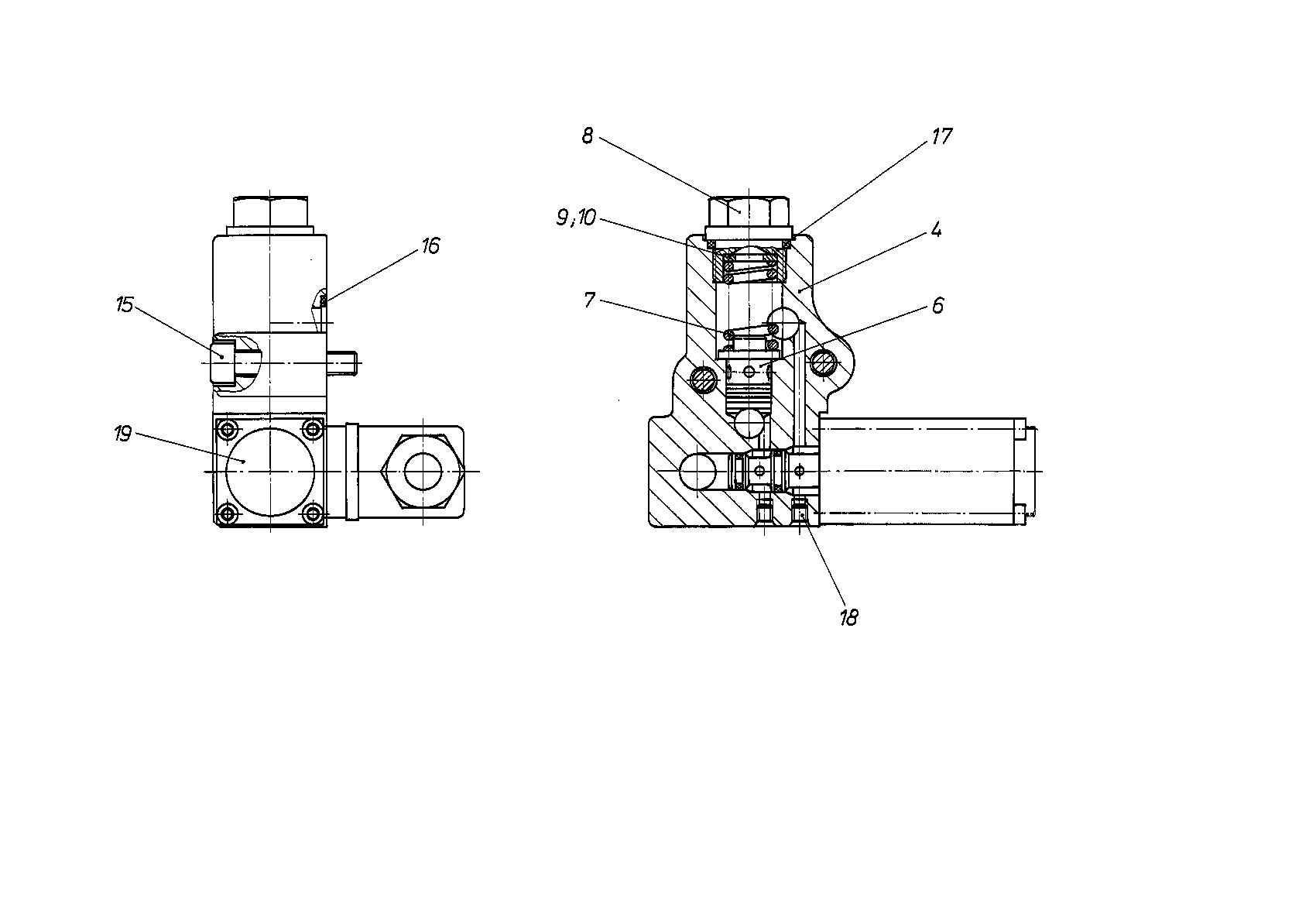

CONNECTING BLOCKR909438711
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| 4 | R909440006 | INTERMEDIATE PLATE | 1 | |
| 6 | R909426804 | VALVE SPOOL | 1 | |
| 7 | R902030583 | COMPRESSION SPRING | 1 | |
| 8 | R909409509 | SCREW PLUG | 1 | |
| 9 | R909154477 | SHIM RING | 1 | |
| 15 | R909083042 | SOCKET HEAD CAP SCREW | 2 | |
| R909083752 | O-RINGD | 2 | ||
| R909083760 | O-RINGD | 1 | ||
| R909831317 | DOUBLE BREAK-OFF PLUG | 1 | ||
| 19 | R901202976 | PRESSURE REDUCING VALVE | 1 | |
| 20 | R913022795 | PLUG-IN CONNECTOR | 1 |
