Baugruppe

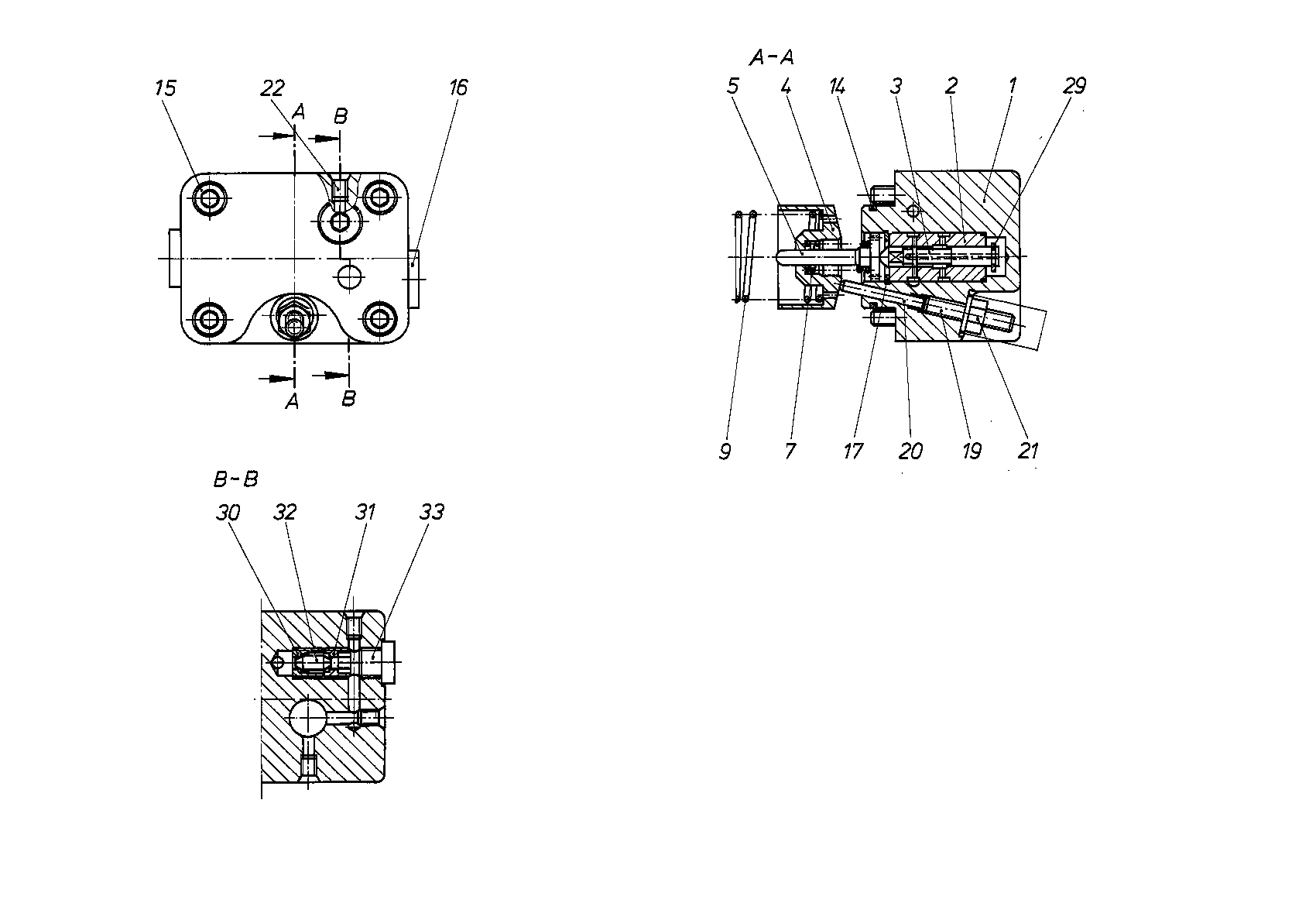

CONTROL PARTR909438803
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R909440259 | CONTROL HOUSING | 1 | ||
| R909417512 | CONTROL SLEEVE | 1 | ||
| R909430747 | CONTROL PISTON | 1 | ||
| R909420169 | ADJUSTING BUSHING | 1 | ||
| R909921339 | SPRING DISK | 1 | ||
| R909430757 | COMPRESSION SPRING | 1 | ||
| R909445260 | COMPRESSION SPRING | 1 | ||
| R909087905 | O-RINGD | 1 | ||
| R909083027 | SOCKET HEAD CAP SCREW | 4 | ||
| R909151979 | SCREW PLUGD | 2 | ||
| R909083381 | RETAINING RING | 1 | ||
| R909152427 | SETSCREW | 1 | ||
| R909087164 | STRAIGHT PIN | 1 | ||
| R909152425 | SEALING NUTD | 1 | ||
| R909831317 | DOUBLE BREAK-OFF PLUG | 3 | ||
| R909085812 | LOCKING WASHER | 1 | ||
| R909400263 | THROTTLE SCREW | 1 | ||
| R909400264 | THROTTLE SCREW | 1 | ||
| R909400262 | THROTTLE PIN | 1 | ||
| R909153364 | SCREW PLUGD | 1 |
