Baugruppe

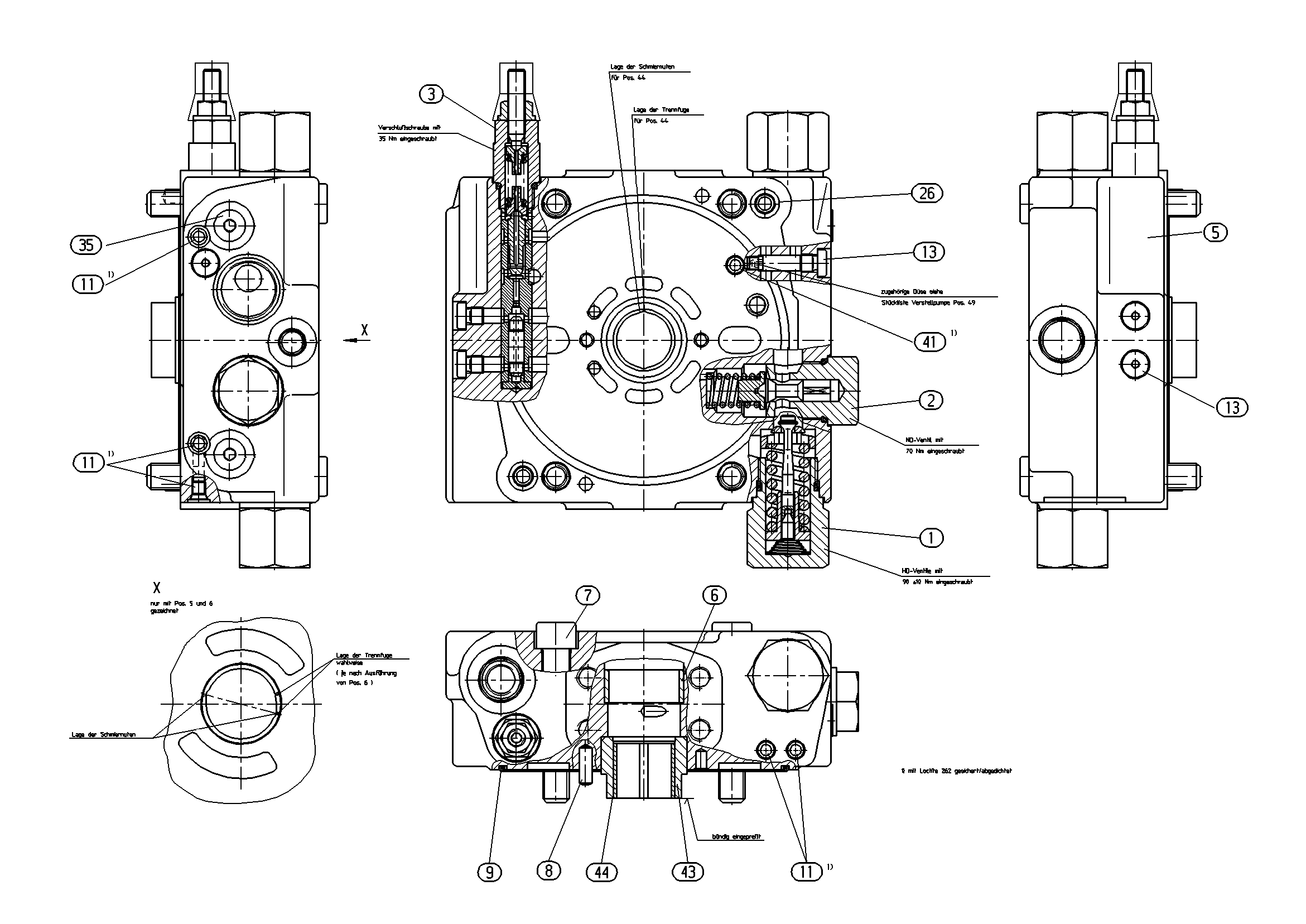

CONNECTION PLATER909438932
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R902016398 | PRESSURE RELIEF VALVE Stückliste der Baugruppe →L | 2 | ||
| R902051329 | PRESSURE RELIEF VALVE Stückliste der Baugruppe →L | 1 | ||
| R909433093 | PRESSURE CUT-OFF VALVE Stückliste der Baugruppe →L | 1 | ||
| R909445313 | CONNECTION PLATE | 1 | ||
| R902260545 | BUSHING | 1 | ||
| R909157524 | SOCKET HEAD CAP SCREW | 4 | ||
| R900748992 | STRAIGHT PIN | 2 | ||
| R913002054 | O-RINGD | 1 | ||
| R909831318 | DOUBLE BREAK-OFF PLUG | 3 | ||
| R909154024 | SCREW PLUGD | 3 | ||
| R909085709 | O-RINGD | 2 | ||
| R909154478 | SCREW PLUGD | 2 | ||
| R909415314 | DOUBLE BREAK-OFF PLUG | 1 | ||
| R909425694 | BUSHING | 1 | ||
| R902260547 | BUSHING | 1 |
