Baugruppe

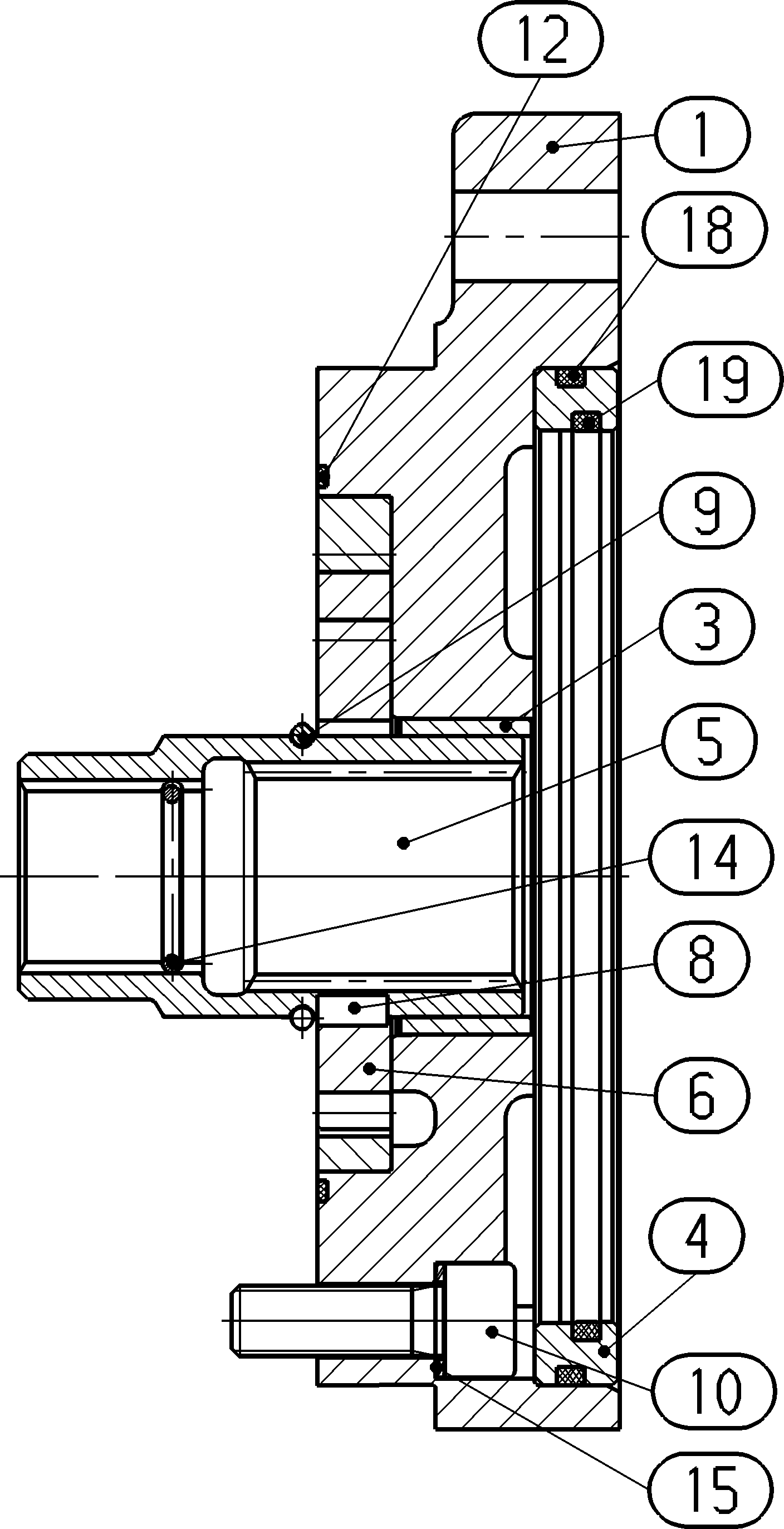

INTERNAL GEAR PUMPR909438973
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R909443850 | INTERMEDIATE FLANGE | 1 | ||
| R902260545 | BUSHING | 1 | ||
| R909430501 | LOCATING RING | 1 | ||
| R902013358 | THROUGH DRIVE SHAFT | 1 | ||
| R902006253 | WHEEL SET | 1 | ||
| R902252407 | PARALLEL KEY | 1 | ||
| R913057533 | SNAP RING | 1 | ||
| R909083039 | SOCKET HEAD CAP SCREW | 4 | ||
| R913037188 | KANTSEALD | 1 | ||
| R909152509 | SNAP RING | 1 | ||
| R909152493 | SEAL RINGD | 4 | ||
| R909086547 | O-RINGD | 1 | ||
| R909154589 | O-RINGD | 1 |
