Baugruppe

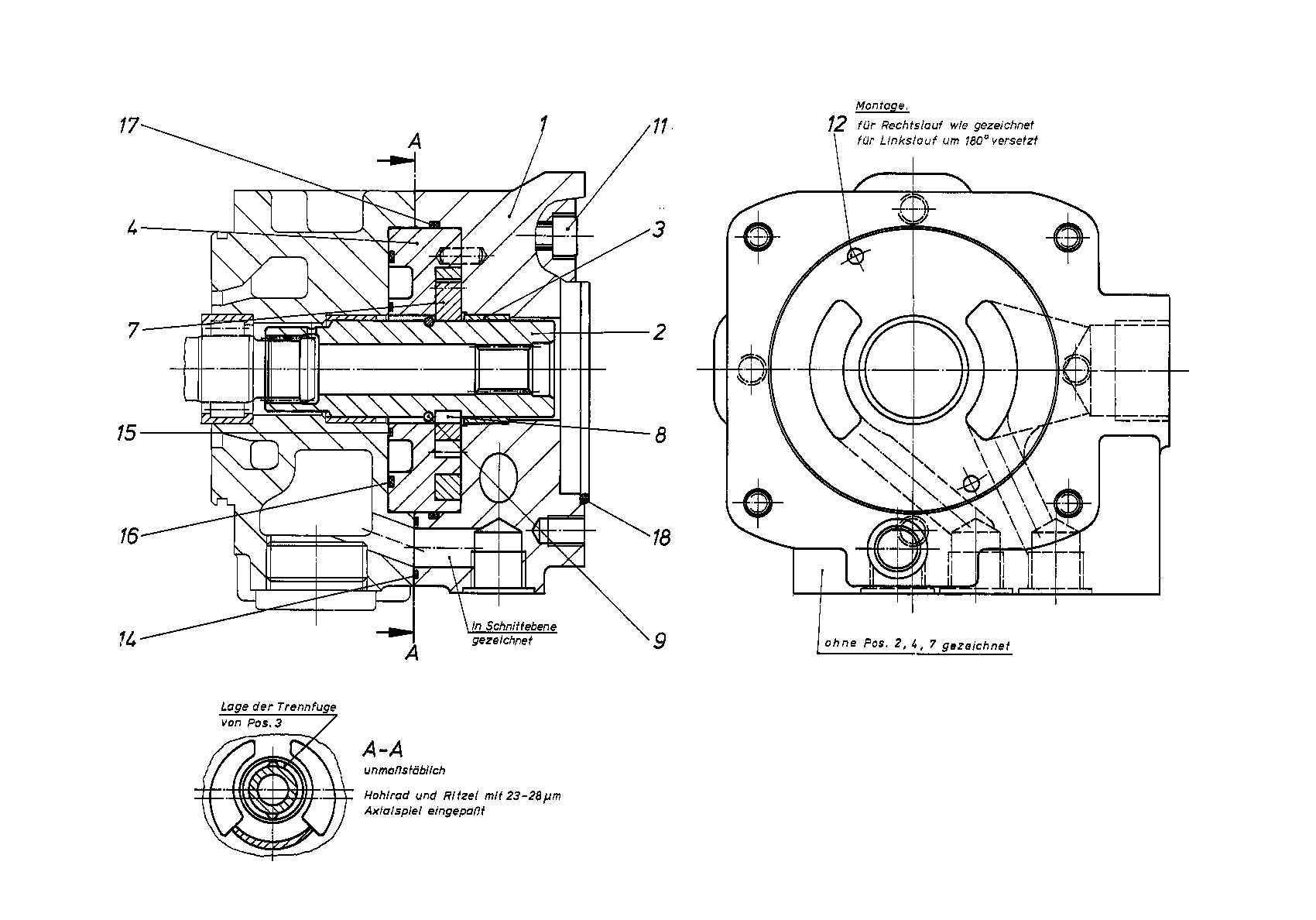

INTERNAL GEAR PUMPR909441057
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R909440529 | CONNECTING FLANGE | 1 | ||
| R909440189 | THROUGH DRIVE SHAFT | 1 | ||
| R902260545 | BUSHING | 1 | ||
| R909444007 | PUMP COVER | 1 | ||
| R902006253 | WHEEL SET | 1 | ||
| R902252407 | PARALLEL KEY | 1 | ||
| R909156741 | SNAP RING | 1 | ||
| R909083045 | SOCKET HEAD CAP SCREW | 4 | ||
| R913009664 | STRAIGHT PIN | 1 | ||
| R909083734 | O-RINGD | 1 | ||
| R909085362 | O-RINGD | 1 | ||
| R909084461 | O-RINGD | 1 | ||
| R909086756 | O-RINGD | 1 | ||
| R913044774 | O-RINGD | 1 |
