Baugruppe

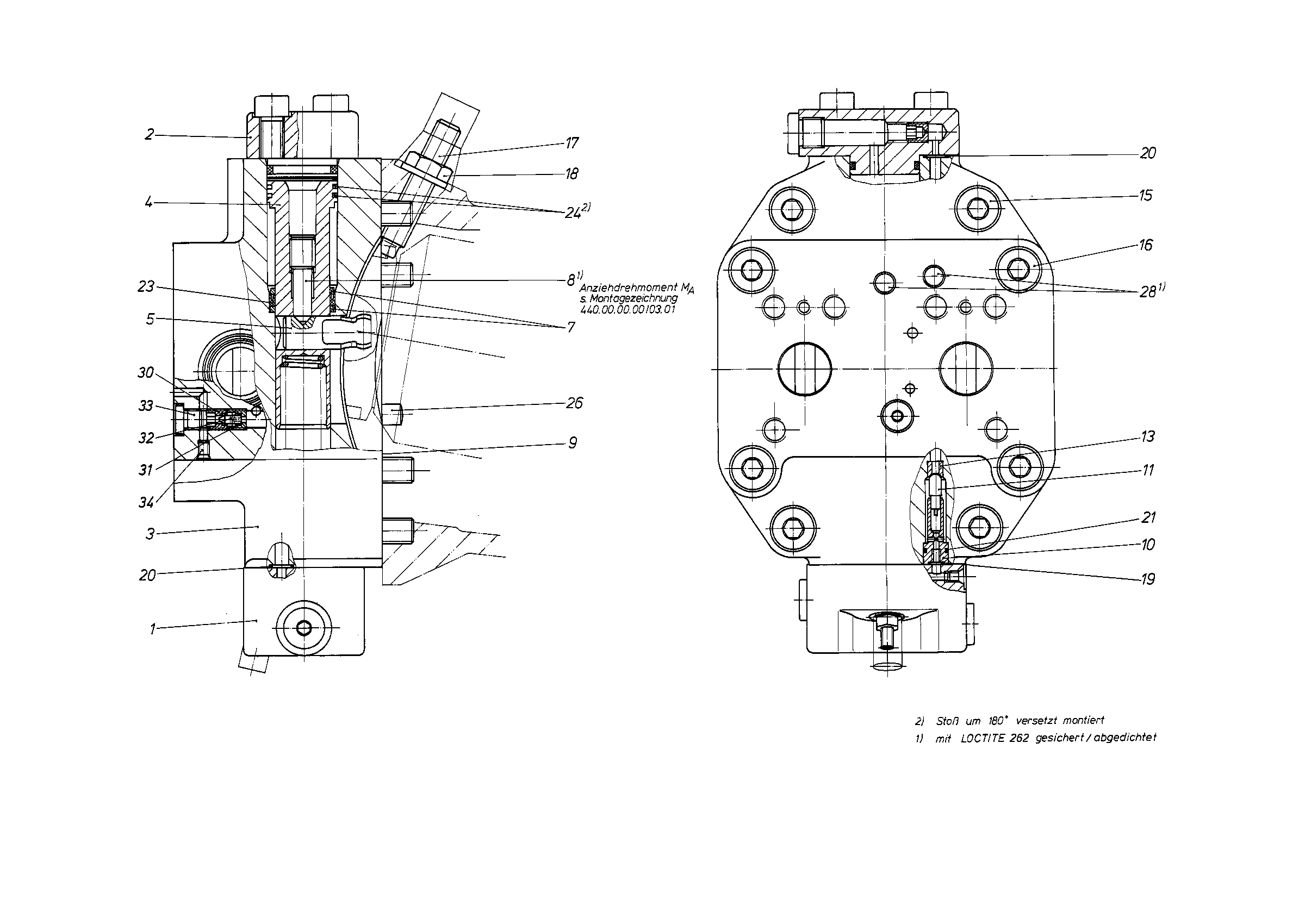

CONTROLR909441060
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| 1 | R909438376 | CONTROL PART Stückliste der Baugruppe →L | 1 | |
| 2 | R909438787 | COVER Stückliste der Baugruppe →L | 1 | |
| 3 | R909440562 | COVER PLATE | 1 | |
| R909422216 | POSITIONING PISTON | 1 | ||
| 5 | R909422217 | POSITIONING STUD | 1 | |
| R909422905 | BACKUP RING | 2 | ||
| 8 | R909445016 | SETSCREW | 1 | |
| 9 | R902011853 | SEALD | 1 | |
| 10 | R902075344 | VALVE GUIDE | 2 | |
| 11 | R909426662 | BOLT | 2 | |
| R902209845 | BUSHING | 2 | ||
| 15 | R909083090 | SOCKET HEAD CAP SCREW | 4 | |
| R909083105 | SOCKET HEAD CAP SCREW | 4 | ||
| 17 | R909446862 | SETSCREW Stückliste der Baugruppe →L | 1 | |
| R909152459 | SEALING NUTD | 1 | ||
| R909084469 | O-RINGD | 2 | ||
| R909086498 | O-RINGD | 3 | ||
| 21 | R909085709 | O-RINGD | 2 | |
| 22 | R902602322 | BACKUP RING | 2 | |
| R909156544 | ROD SEALD | 1 | ||
| 24 | R909156647 | R-RINGD | 2 | |
| R913009669 | STRAIGHT PIN | 2 | ||
| 28 | R909831319 | DOUBLE BREAK-OFF PLUG | 1 | |
| R909400263 | THROTTLE SCREW | 1 | ||
| 31 | R909400264 | THROTTLE SCREW | 1 | |
| R909439287 | VALVE PIN | 1 | ||
| 33 | R909153364 | SCREW PLUGD | 1 | |
| R909831317 | DOUBLE BREAK-OFF PLUG | 1 | ||
| 35 | R909153815 | SCREW PLUGD | 2 |
