Baugruppe

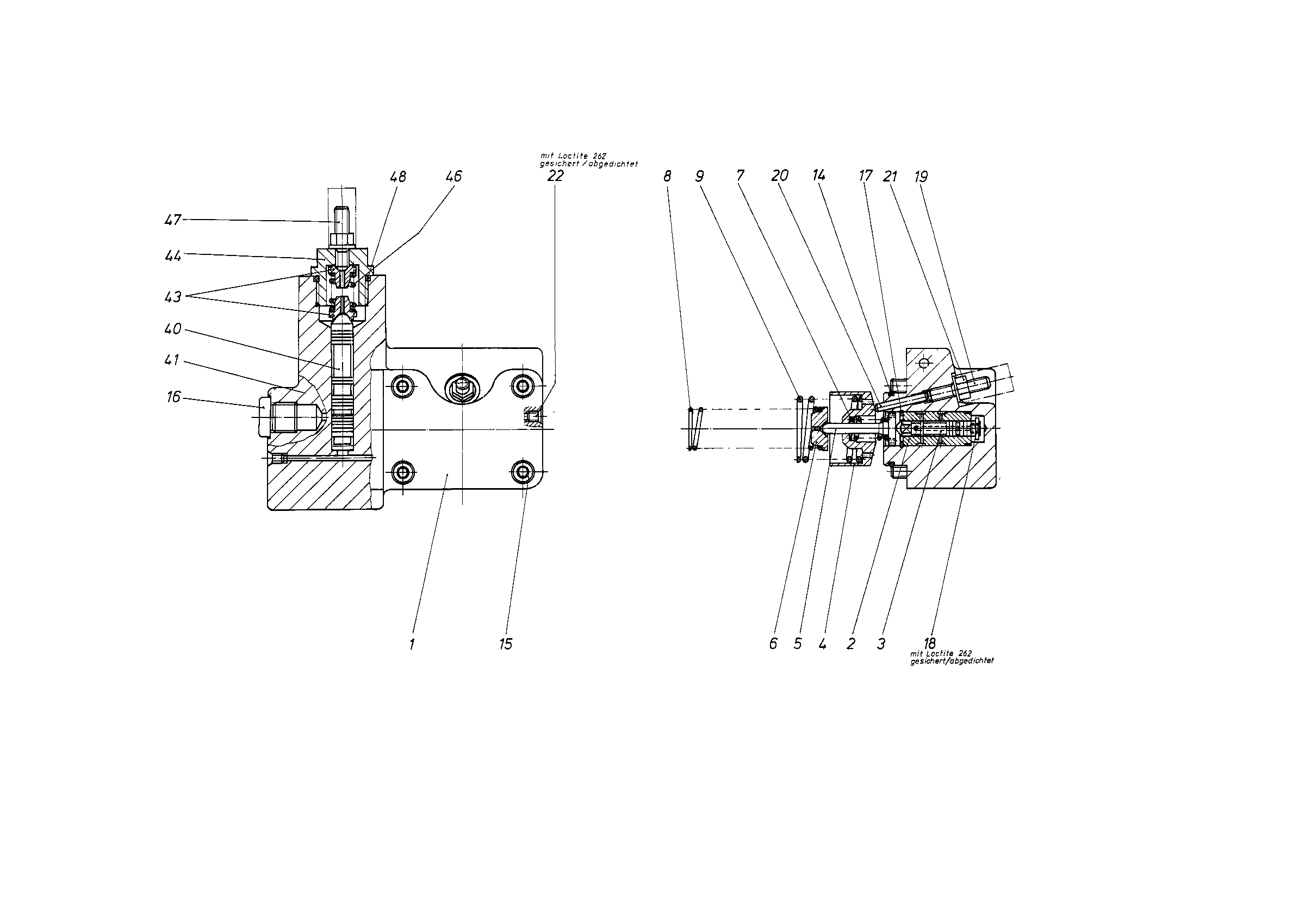

CONTROL PARTR909441092
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| 1 | R909440570 | CONTROL HOUSING | 1 | |
| 2 | R909412246 | CONTROL SLEEVE | 1 | |
| 3 | R909412266 | CONTROL PISTON | 1 | |
| 4 | R909651119 | ADJUSTING BUSHING | 1 | |
| 5 | R909418761 | SPRING BOLT | 1 | |
| 6 | R909412988 | SPRING DISK | 1 | |
| R909412398 | COMPRESSION SPRING | 1 | ||
| R909413170 | COMPRESSION SPRING | 1 | ||
| 9 | R909651117 | COMPRESSION SPRING | 1 | |
| R909085545 | O-RINGD | 1 | ||
| R909083042 | SOCKET HEAD CAP SCREW | 4 | ||
| R909153371 | SCREW PLUGD | 1 | ||
| 17 | R909083381 | RETAINING RING | 1 | |
| 18 | R909083488 | SETSCREW | 1 | |
| 19 | R909152427 | SETSCREW | 1 | |
| R909087756 | STRAIGHT PIN | 1 | ||
| 21 | R909152425 | SEALING NUTD | 1 | |
| 22 | R909831317 | DOUBLE BREAK-OFF PLUG | 4 | |
| R902248588 | CONTROL PISTON | 1 | ||
| R909075975 | SPRING DISK | 2 | ||
| R902057206 | SCREW PLUG | 1 | ||
| R909420239 | COMPRESSION SPRING | 1 | ||
| R902052249 | SETSCREW | 1 | ||
| R909083760 | O-RINGD | 1 | ||
| 49 | R909157764 | SEALING NUT | 1 |
