Baugruppe

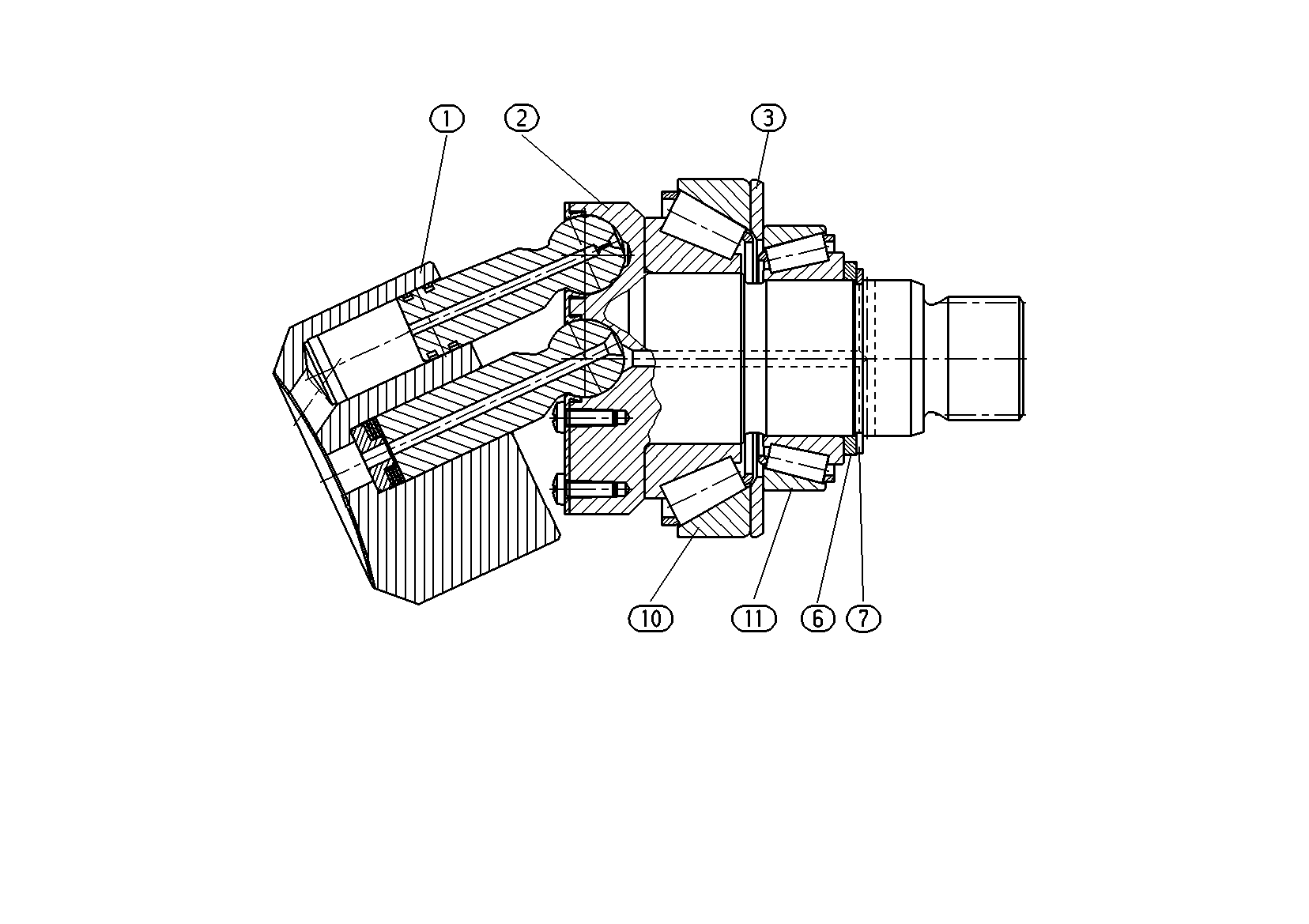

ROTARY GROUPR909441100
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| 1 | R909429554 | ROTARY GROUP Stückliste der Baugruppe →L | 1 | |
| R909443248 | DRIVE SHAFT | 1 | ||
| R909651512 | SHIM RING | 1 | ||
| R909444031 | SUPPORTING DISC | 1 | ||
| R909444032 | SUPPORTING DISC | 1 | ||
| R909444033 | SUPPORTING DISC | 1 | ||
| R909444034 | SUPPORTING DISC | 1 | ||
| R909444035 | SUPPORTING DISC | 1 | ||
| R909444036 | SUPPORTING DISC | 1 | ||
| R909444037 | SUPPORTING DISC | 1 | ||
| R909444038 | SUPPORTING DISC | 1 | ||
| R909444039 | SUPPORTING DISC | 1 | ||
| R909444040 | SUPPORTING DISC | 1 | ||
| 7 | R909084416 | RETAINING RING | 1 | |
| R909154398 | TAPERED-ROLLER BEARING | 1 | ||
| 11 | R909154399 | TAPERED-ROLLER BEARING | 1 |
