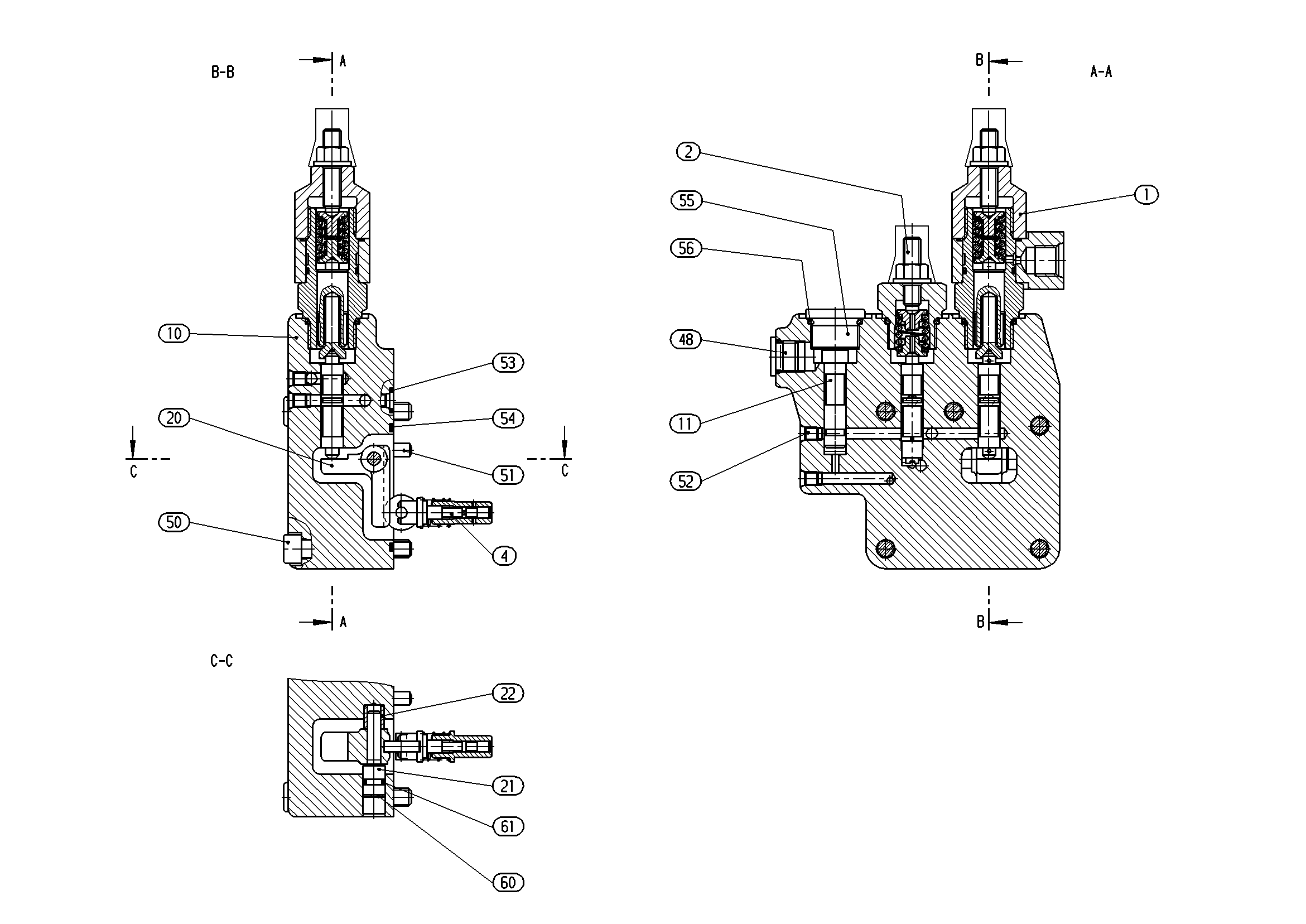

Baugruppe
REGULATORR909441526
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R902229788 | CONTROL ELEMENT Stückliste der Baugruppe →L | 1 | ||
| R909447278 | CONTROL ELEMENT Stückliste der Baugruppe →L | 1 | ||
| R909447093 | MEASURING PISTON Stückliste der Baugruppe →L | 1 | ||
| R909439137 | CONTROL HOUSING | 1 | ||
| R909431326 | LOCKING BOLT | 1 | ||
| R909445555 | ANGLE LEVER | 1 | ||
| R909431281 | BEARING BOLT | 1 | ||
| R909431286 | BUSHING | 1 | ||
| R909153371 | SCREW PLUGD | 1 | ||
| R909083044 | SOCKET HEAD CAP SCREW | 5 | ||
| R913009676 | STRAIGHT PIN | 2 | ||
| R909831318 | DOUBLE BREAK-OFF PLUG | 6 | ||
| R909157512 | O-RINGD | 3 | ||
| R902600656 | O-RINGD | 1 | ||
| R909083225 | SCREW PLUG | 1 | ||
| R909083758 | O-RING | 1 | ||
| R909087248 | RETAINING RING | 1 | ||
| R913045130 | O-RING | 1 | ||
| 98 | R902002478 | SEAL KIT | 1 |
