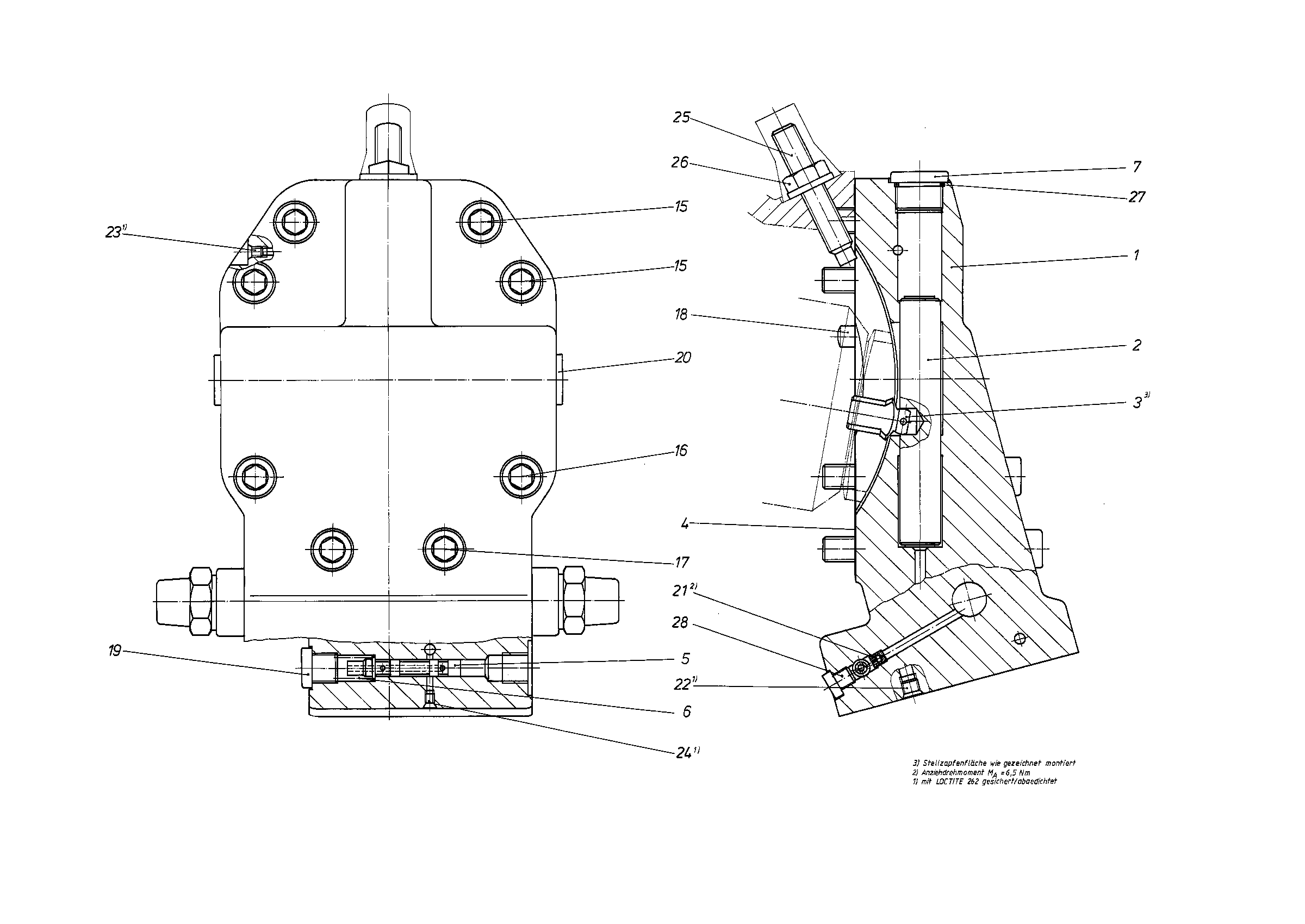

Baugruppe
CONTROLR909441635
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R909445107 | COVER PLATE | 1 | ||
| R909443345 | POSITIONING PISTON | 1 | ||
| R909650144 | POSITIONING STUD | 1 | ||
| R902011852 | SEALD | 1 | ||
| R909443314 | CONTROL PISTON | 1 | ||
| R909445946 | COMPRESSION SPRING | 1 | ||
| R909443855 | SCREW PLUG | 1 | ||
| R909083064 | SOCKET HEAD CAP SCREW | 4 | ||
| R909083071 | SOCKET HEAD CAP SCREW | 2 | ||
| R909083073 | SOCKET HEAD CAP SCREW | 2 | ||
| R913009667 | STRAIGHT PIN | 2 | ||
| R909151979 | SCREW PLUGD | 1 | ||
| R909153815 | SCREW PLUGD | 2 | ||
| R909156492 | NOZZLE | 1 | ||
| R909831319 | DOUBLE BREAK-OFF PLUG | 1 | ||
| R909831318 | DOUBLE BREAK-OFF PLUG | 3 | ||
| R909831316 | DOUBLE BREAK-OFF PLUG | 1 | ||
| R909447003 | SETSCREW Stückliste der Baugruppe →L | 1 | ||
| R909152426 | SEALING NUTD | 1 | ||
| R909083758 | O-RINGD | 1 | ||
| R909154024 | SCREW PLUGD | 1 |
