Baugruppe

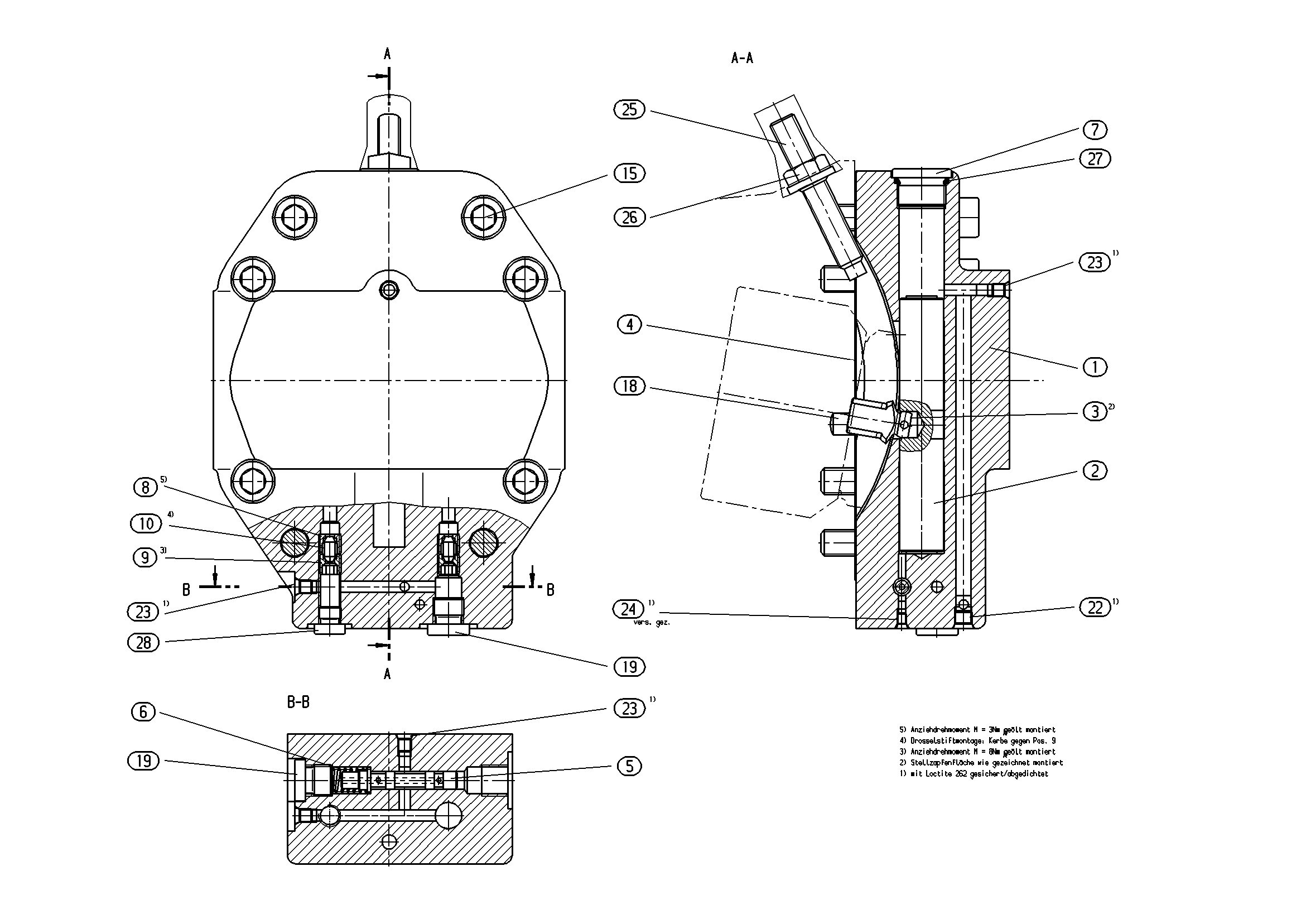

CONTROLR909442010
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R909443509 | COVER PLATE | 1 | ||
| R909443313 | POSITIONING PISTON | 1 | ||
| R909650145 | POSITIONING STUD | 1 | ||
| R902011855 | SEALD | 1 | ||
| R909443314 | CONTROL PISTON | 1 | ||
| R909445946 | COMPRESSION SPRING | 1 | ||
| R909443855 | SCREW PLUG | 1 | ||
| R909400263 | THROTTLE SCREW | 2 | ||
| R909400264 | THROTTLE SCREW | 2 | ||
| R902067256 | THROTTLE PIN | 2 | ||
| R909083096 | SOCKET HEAD CAP SCREW | 8 | ||
| R913009669 | STRAIGHT PIN | 2 | ||
| R909151979 | SCREW PLUGD | 2 | ||
| R909831319 | DOUBLE BREAK-OFF PLUG | 1 | ||
| R909831318 | DOUBLE BREAK-OFF PLUG | 3 | ||
| R909831316 | DOUBLE BREAK-OFF PLUG | 1 | ||
| R909446862 | SETSCREW Stückliste der Baugruppe →L | 1 | ||
| R909152459 | SEALING NUTD | 1 | ||
| R909083758 | O-RINGD | 1 | ||
| R909153364 | SCREW PLUGD | 1 |
