Baugruppe
CONTROL MODULER909442087

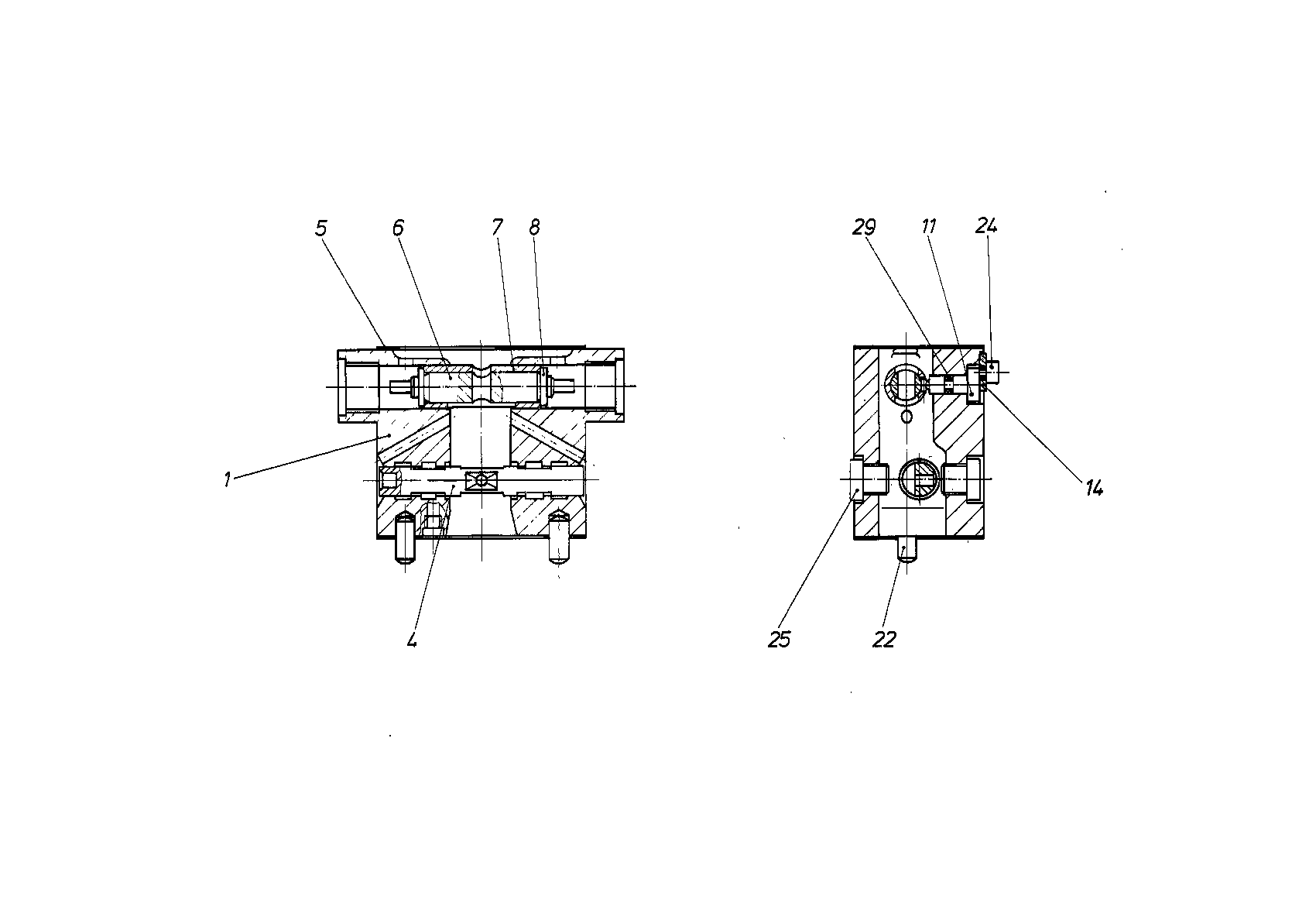

| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| 1 | R909449552 | HOUSING | 1 | |
| R909449876 | CONTROL PISTON | 1 | ||
| 5 | R913049009 | SEALD | 2 | |
| 6 | R909415996 | PISTON | 1 | |
| 7 | R909418604 | BUSHING | 1 | |
| 8 | R909415998 | SPRING DISK | 2 | |
| 11 | R909449547 | ECCENTRIC PIN | 1 | |
| 14 | R909449583 | WASHER | 1 | |
| R913009677 | STRAIGHT PIN | 2 | ||
| R909083001 | SOCKET HEAD CAP SCREW | 1 | ||
| 25 | R909153364 | SCREW PLUGD | 2 | |
| R902600639 | O-RINGD | 1 |
