Baugruppe

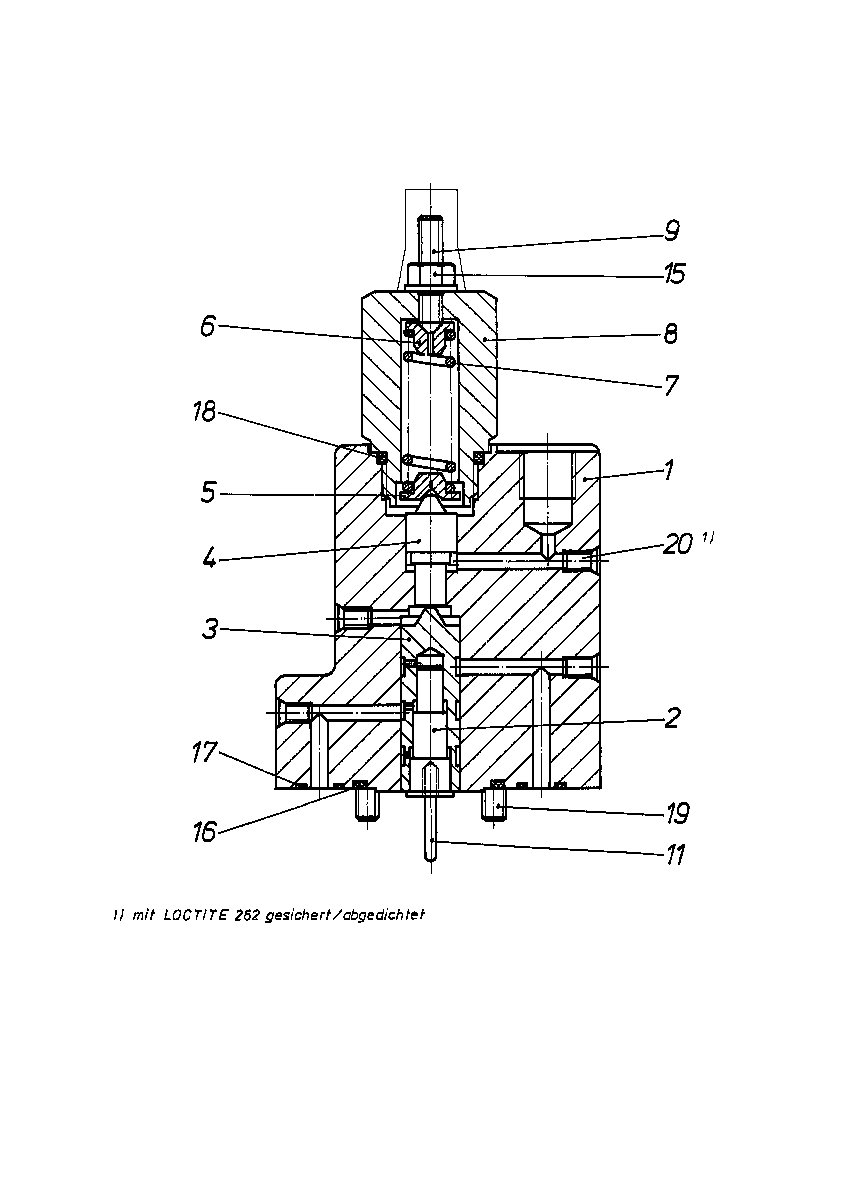

CONTROL UNITR909442093
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R909443774 | CONTROL HOUSING | 1 | ||
| R909440060 | CONTROL PISTON | 1 | ||
| R909440059 | CONTROL SLEEVE | 1 | ||
| R909443773 | CONTROL PISTON | 1 | ||
| R909431526 | SPRING DISK | 1 | ||
| R909420414 | SPRING DISK | 1 | ||
| R909435520 | COMPRESSION SPRING | 1 | ||
| R909435522 | SCREW PLUG | 1 | ||
| R909420992 | SETSCREW | 1 | ||
| R909431195 | PIN | 1 | ||
| R909152425 | SEALING NUTD | 1 | ||
| R909086730 | O-RINGD | 1 | ||
| R909086498 | O-RINGD | 2 | ||
| R909086517 | O-RINGD | 1 | ||
| R909086080 | SOCKET HEAD CAP SCREW | 4 | ||
| R909831317 | DOUBLE BREAK-OFF PLUG | 2 |
