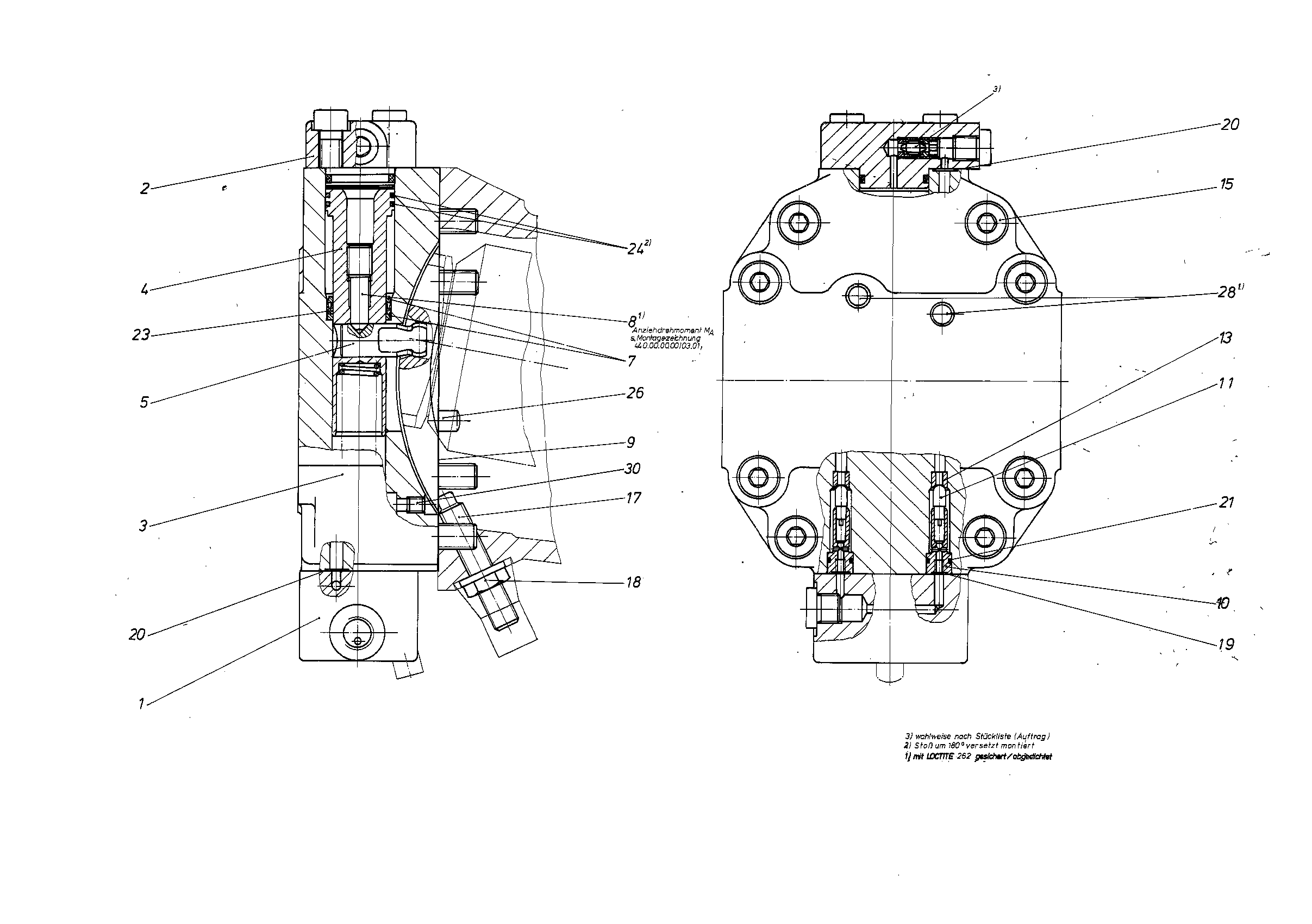

Baugruppe
CONTROLR909442134
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| 1 | R909442171 | CONTROL PART Stückliste der Baugruppe →L | 1 | |
| R909442263 | COVER Stückliste der Baugruppe →L | 1 | ||
| 3 | R909444202 | COVER PLATE | 1 | |
| R909431768 | POSITIONING PISTON | 1 | ||
| R909422021 | POSITIONING STUD | 1 | ||
| R909424090 | BACKUP RING | 2 | ||
| 8 | R909445922 | SETSCREW | 1 | |
| 9 | R902011856 | SEALD | 1 | |
| 10 | R902075344 | VALVE GUIDE | 2 | |
| 11 | R909426662 | BOLT | 2 | |
| 13 | R902209845 | BUSHING | 2 | |
| 15 | R909083131 | SOCKET HEAD CAP SCREW | 8 | |
| R909447152 | SETSCREW Stückliste der Baugruppe →L | 2 | ||
| R909152459 | SEALING NUTD | 2 | ||
| R909084469 | O-RINGD | 2 | ||
| R909086498 | O-RINGD | 3 | ||
| 21 | R909085709 | O-RINGD | 2 | |
| 22 | R902602322 | BACKUP RING | 2 | |
| 23 | R909156542 | ROD SEALD | 1 | |
| 24 | R909156479 | R-RINGD | 2 | |
| 26 | R913009666 | STRAIGHT PIN | 2 | |
| 28 | R909831319 | DOUBLE BREAK-OFF PLUG | 1 | |
| R909083494 | SETSCREW | 1 |
