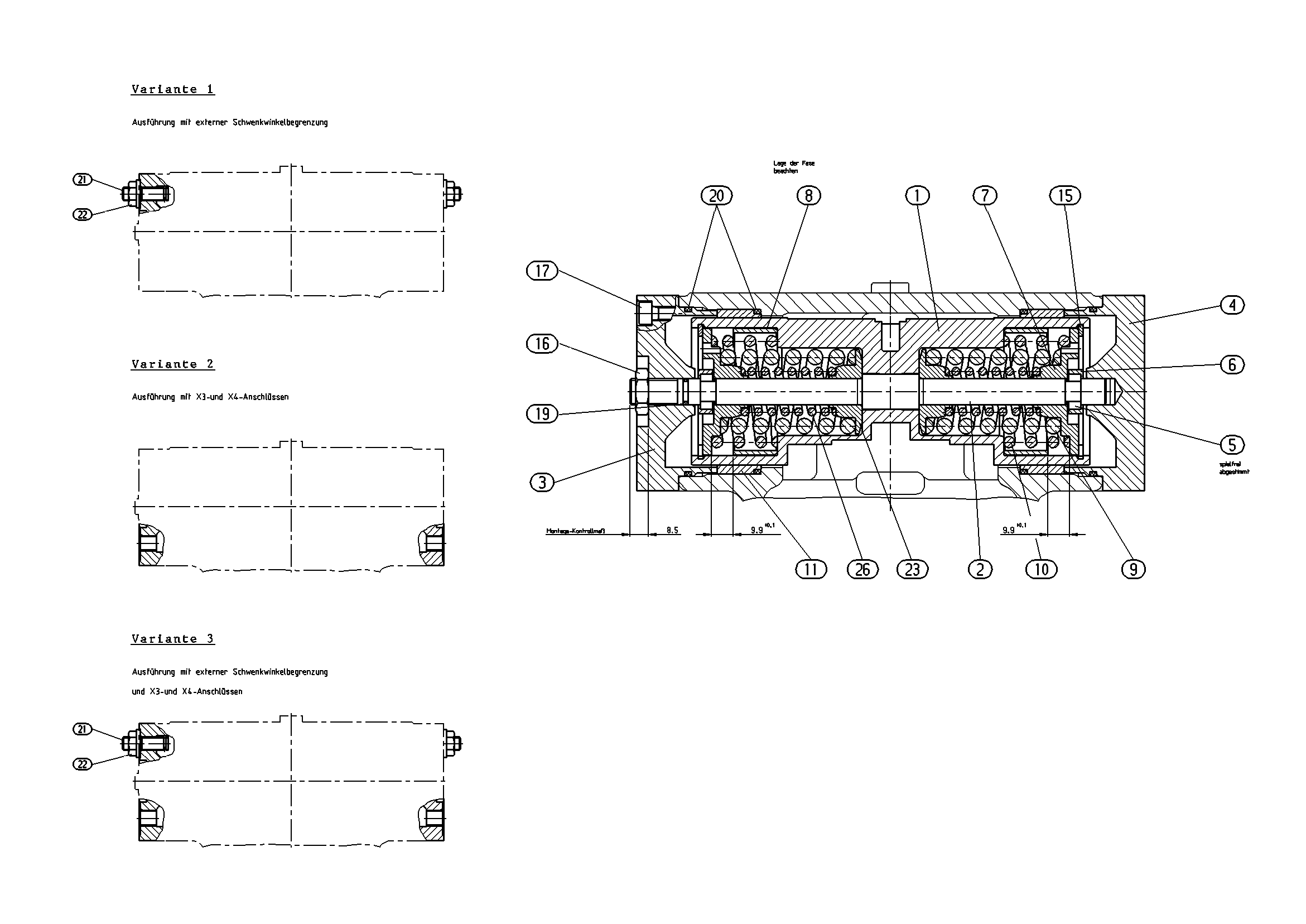

Baugruppe
CONTROLR909442401
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R909652162 | POSITIONING PISTON | 1 | ||
| R902278029 | ROD | 1 | ||
| R909440242 | COVER | 1 | ||
| R909440243 | COVER | 1 | ||
| R902015508 | RING | 2 | ||
| R902013493 | RING | 1 | ||
| R902015509 | RING | 1 | ||
| R902015510 | RING | 1 | ||
| R902015511 | RING | 1 | ||
| R902015512 | RING | 1 | ||
| R902015514 | RING | 1 | ||
| R902015513 | RING | 1 | ||
| R909443580 | LOCATING RING | 2 | ||
| R902020101 | SPRING DISK | 2 | ||
| R909432887 | SPACER RING | 2 | ||
| R909432888 | SPACER RING | 1 | ||
| R909432889 | SPACER RING | 1 | ||
| R909432886 | COMPRESSION SPRING | 2 | ||
| R909432898 | COMPRESSION SPRING | 2 | ||
| R909430306 | BUSHING | 2 | ||
| R909084557 | RETAINING RING | 2 | ||
| R909154918 | HEXAGON NUT | 1 | ||
| R909084744 | SOCKET HEAD CAP SCREW | 8 | ||
| R909085709 | O-RINGD | 1 | ||
| R909084482 | O-RINGD | 4 | ||
| R909449248 | SPRING DISK | 2 | ||
| R909432885 | COMPRESSION SPRING | 2 | ||
| 98 | R902221187 | SEAL KIT | 1 |
