Baugruppe

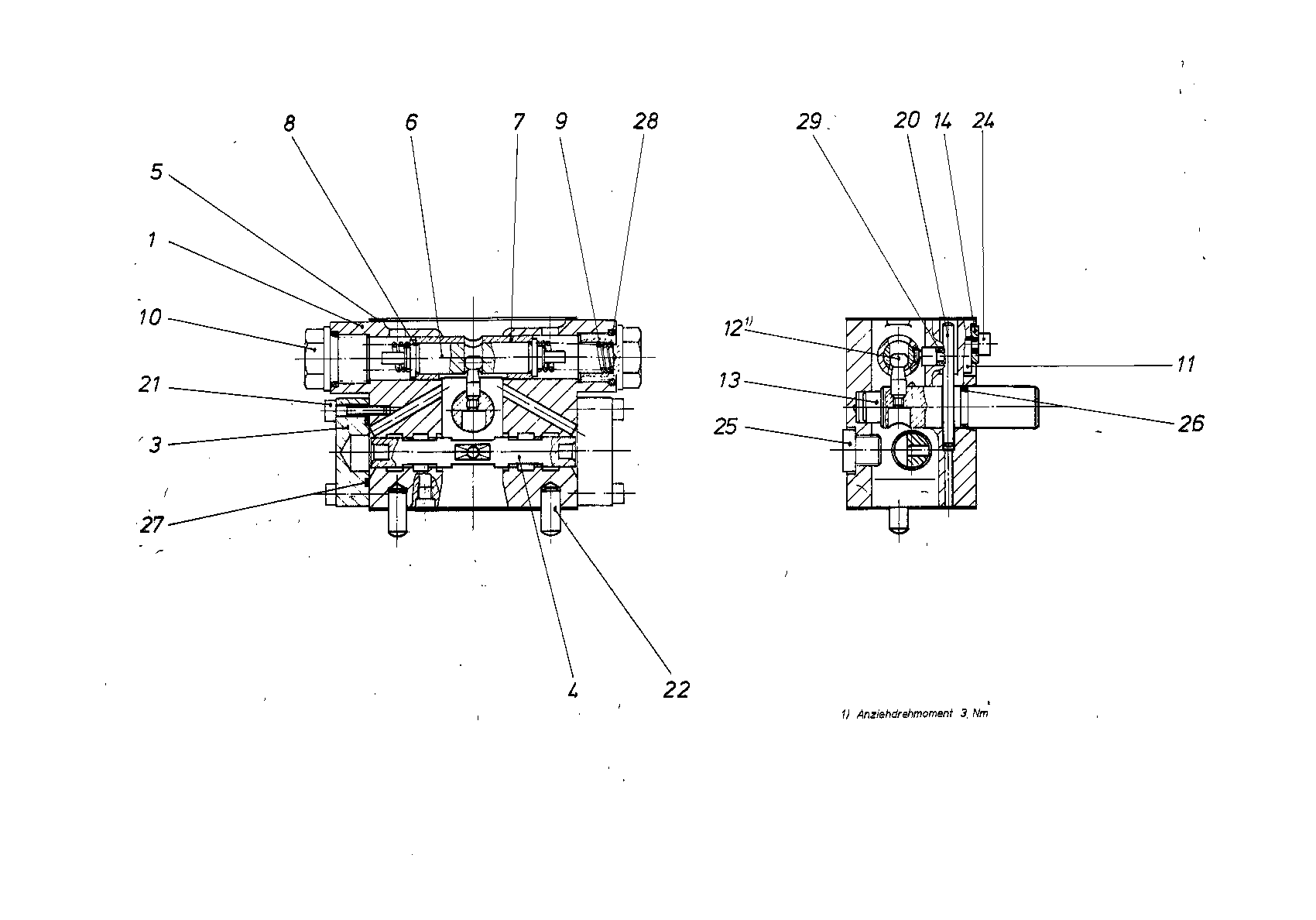

CONTROL MODULER909442470
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R909449546 | HOUSING | 1 | ||
| 3 | R909415993 | SEALING COVER | 2 | |
| 4 | R909444249 | CONTROL PISTON | 1 | |
| 5 | R913049009 | SEALD | 2 | |
| R909415996 | PISTON | 1 | ||
| 7 | R909418604 | BUSHING | 1 | |
| R909415998 | SPRING DISK | 2 | ||
| 9 | R909415999 | COMPRESSION SPRING | 2 | |
| 10 | R909416000 | SCREW PLUG | 2 | |
| 11 | R909449547 | ECCENTRIC PIN | 1 | |
| R902056871 | POSITIONING STUD | 1 | ||
| 13 | R909416003 | SHAFT | 1 | |
| 14 | R909449583 | WASHER | 1 | |
| 20 | R909087167 | STRAIGHT PIN | 1 | |
| 21 | R909083004 | SOCKET HEAD CAP SCREW | 8 | |
| R913009677 | STRAIGHT PIN | 2 | ||
| 24 | R909083001 | SOCKET HEAD CAP SCREW | 1 | |
| 25 | R909153364 | SCREW PLUG | 1 | |
| R909086332 | O-RINGD | 1 | ||
| R909083737 | O-RINGD | 2 | ||
| R909083752 | O-RINGD | 2 | ||
| 29 | R902600639 | O-RINGD | 1 |
