Baugruppe

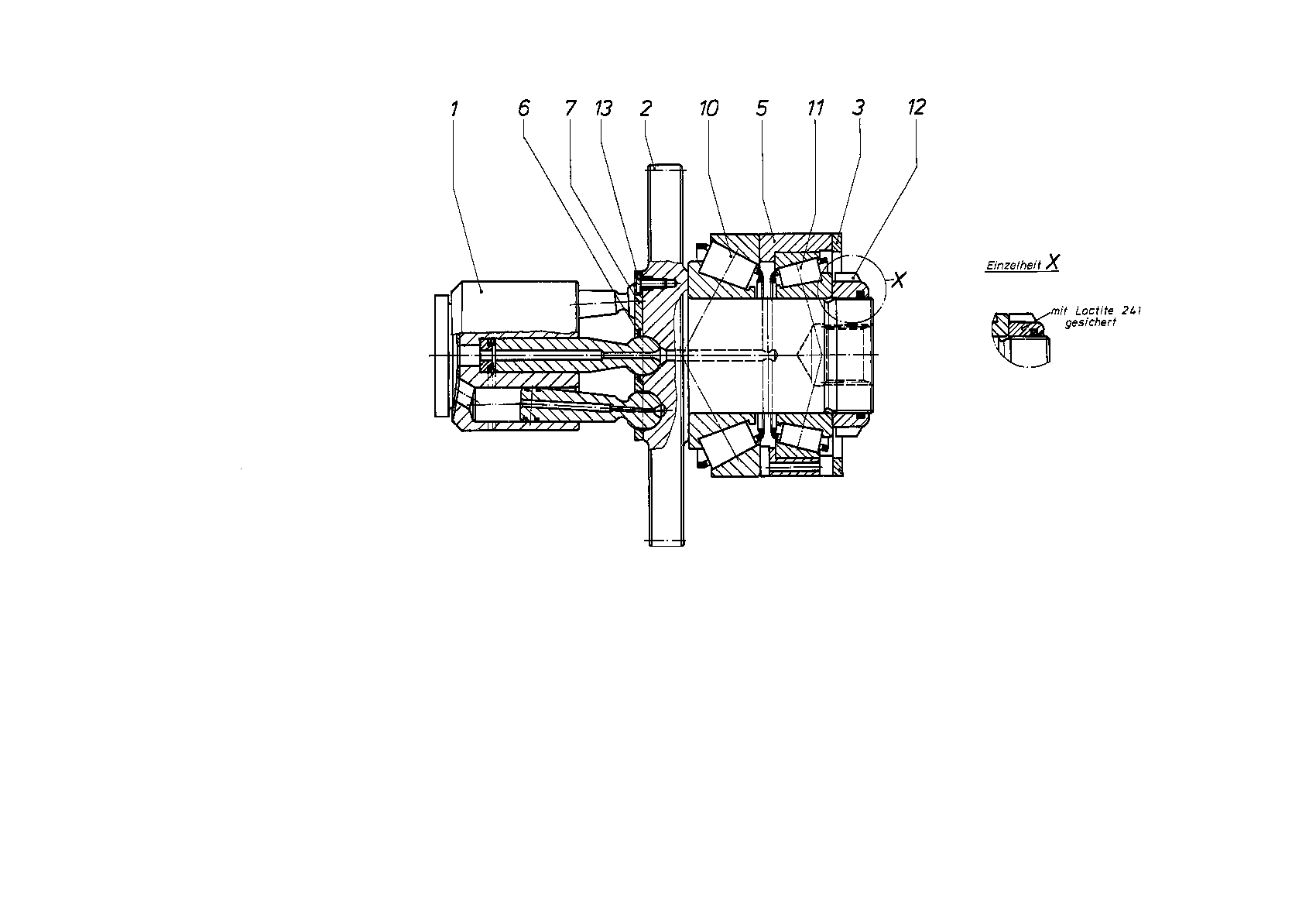

ROTARY GROUPR909442543
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R909418919 | ROTARY GROUP Stückliste der Baugruppe →L | 1 | ||
| R909435860 | DRIVE SHAFT | 1 | ||
| R909651567 | SHIM RING | 1 | ||
| R909651568 | SHIM RING | 1 | ||
| R909651569 | SHIM RING | 1 | ||
| R909651570 | SHIM RING | 1 | ||
| R909430763 | BEARING RING | 1 | ||
| R909411104 | WASHER | 1 | ||
| R909444061 | RETAINING PLATE | 1 | ||
| R909156261 | TAPERED-ROLLER BEARING | 1 | ||
| R909156263 | TAPERED-ROLLER BEARING | 1 | ||
| R909156260 | SLOTTED ROUND NUT | 1 | ||
| R902603052 | PAN-HEAD SCREW | 7 |
