Baugruppe

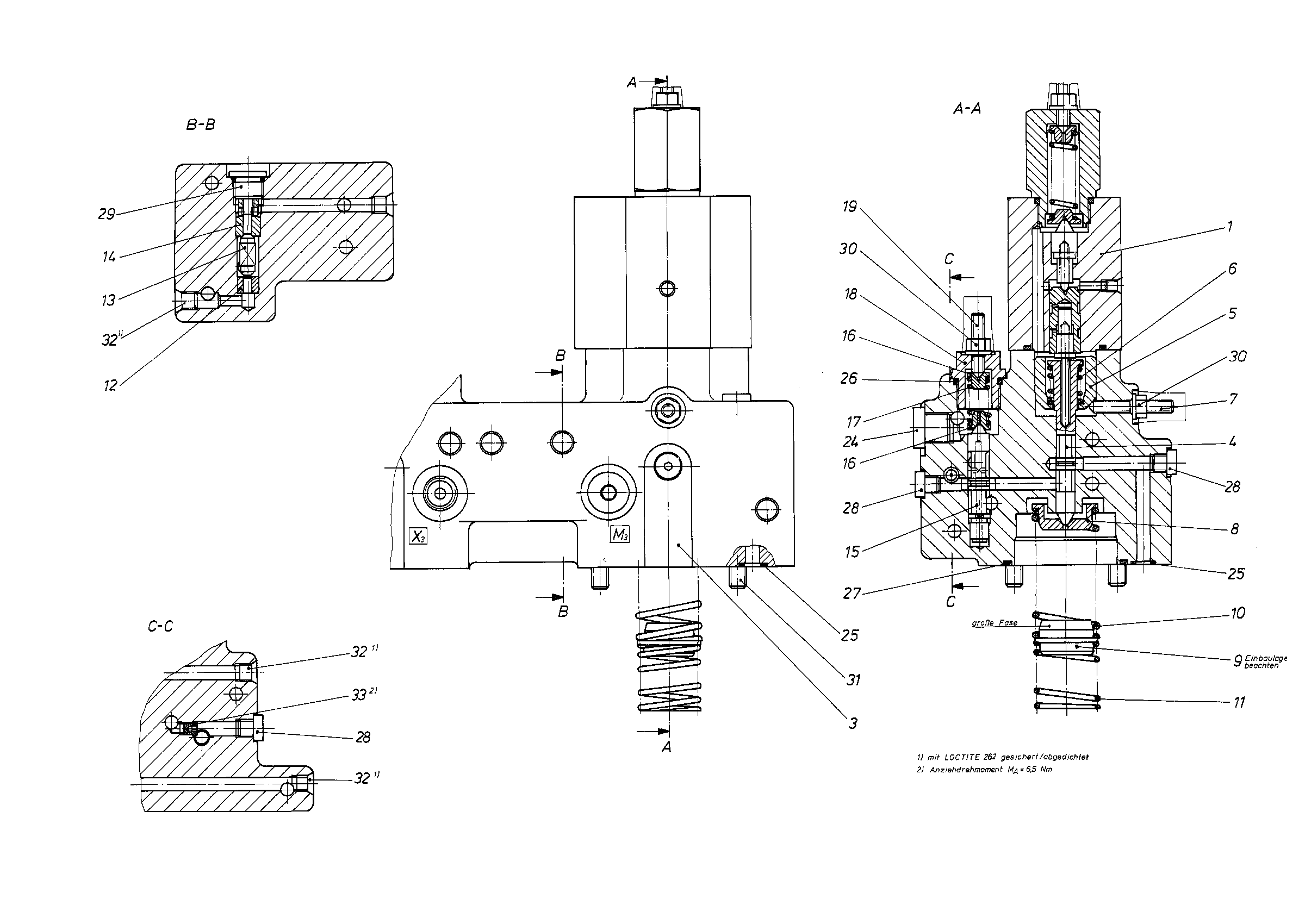

CONTROL UNITR909442560
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R909446158 | CONTROL UNIT Stückliste der Baugruppe →L | 2 | ||
| R909444296 | CONTROL HOUSING | 1 | ||
| R909431938 | CONTROL PISTON | 2 | ||
| R909426486 | SPRING BUSH | 2 | ||
| R909432566 | COMPRESSION SPRING | 2 | ||
| R909420992 | SETSCREW | 2 | ||
| R909432513 | SPRING DISK | 2 | ||
| R909432511 | SPRING DISK | 2 | ||
| R909432560 | COMPRESSION SPRING | 2 | ||
| R909432559 | COMPRESSION SPRING | 2 | ||
| R909425801 | BUSHING | 2 | ||
| R909436407 | VALVE CONE | 2 | ||
| R909431990 | VALVE BUSHING | 2 | ||
| R902006677 | CONTROL PISTON | 2 | ||
| R909075975 | SPRING DISK | 4 | ||
| R909432221 | COMPRESSION SPRING | 2 | ||
| R909651054 | SCREW PLUG | 2 | ||
| R909420991 | SETSCREW | 2 | ||
| R909151979 | SCREW PLUGD | 2 | ||
| R909085709 | O-RINGD | 7 | ||
| R909083757 | O-RINGD | 2 | ||
| R909151810 | O-RINGD | 2 | ||
| R909154024 | SCREW PLUGD | 6 | ||
| R909153371 | SCREW PLUGD | 2 | ||
| R909152425 | SEALING NUTD | 4 | ||
| R909083052 | SOCKET HEAD CAP SCREW | 6 | ||
| R909831319 | DOUBLE BREAK-OFF PLUG | 14 | ||
| R909156492 | NOZZLE | 2 |
